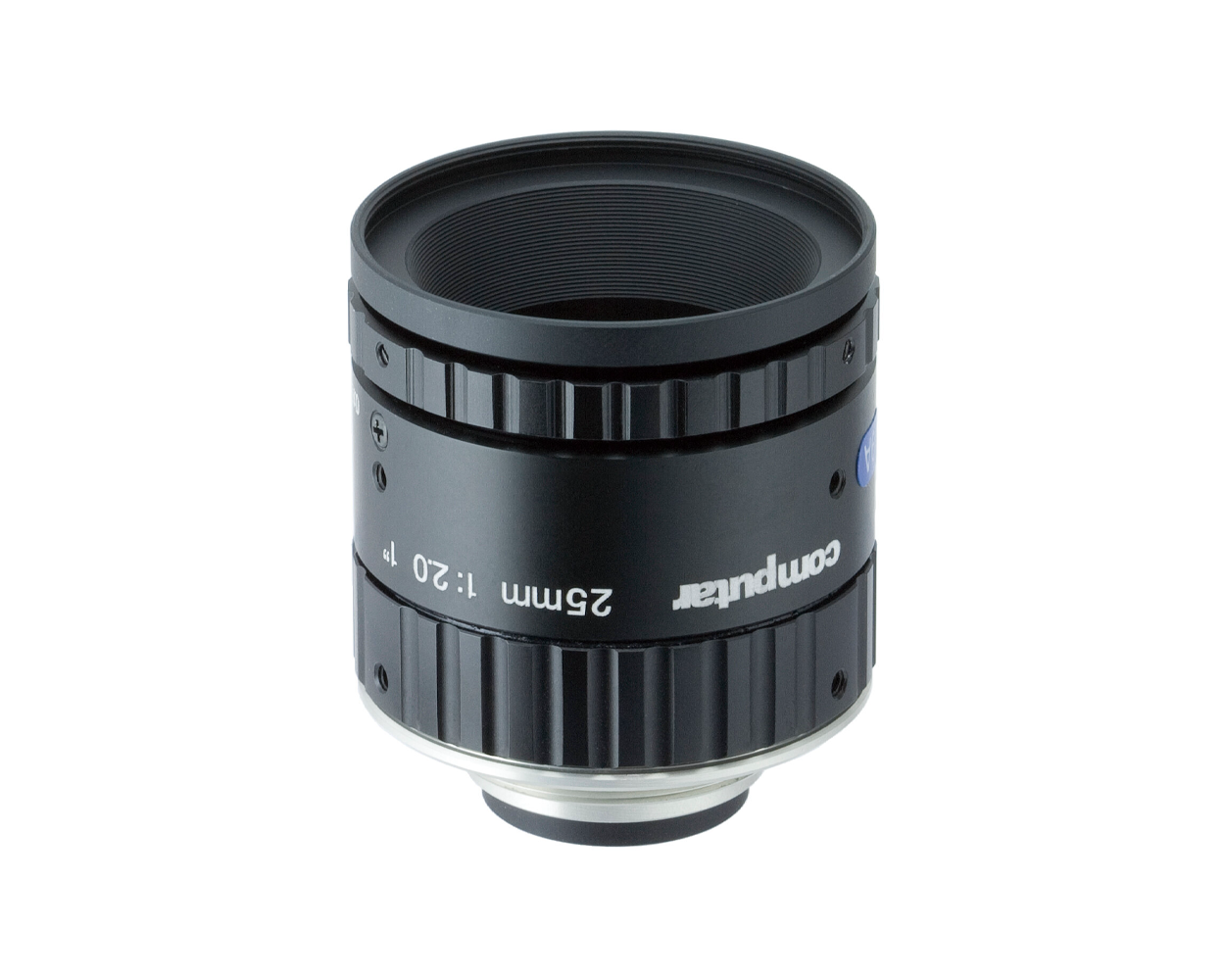

Computar - V2520-MPZ - 20MP, 1.1" 25mm F2.0, 3.45um, Ultra-low Distortion Lens (C-Mount)
Part number:
V2520-MPZ
Price:
1" 25mm f2.0, 2.74, 20 megapixel Ultra low Distortion Lens.
Features:
- 25mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.0
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
- Nominal Distortion Design
- Ensure Corner Brightness
| Model No. | V2520-MPZ | Effective Lens Aperture | Front | φ19.2mm | |||
| Focal Length | 25mm | Rear | φ17.1mm | ||||
| Max. Aperture Ratio | 1:2.0 | Distortion | 1 Type | 0.0% | |||
| Max. Image Format | 12.8mm x 9.6mm(φ16mm) | 2/3 Type | 0.0% | ||||
| Operation Range | Iris | F2.0 ‐ F16.0 | 1/1.8 Type | 0.0% | |||
| Focus | 0.15m ‐ Inf. | Back Focal Length | 9.1mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
| Object Dimension at M.O.D. | 1 Type | 66.9mm x 50.1mm | Filter Size | M35.5 P=0.5mm | |||
| 2/3 Type | 45.9mm x 34.4mm | Dimensions | φ37.5mm×35.7mm | ||||
| 1/1.8 Type | 37.5mm x 28.1mm | Weight | 73.1g | ||||
Angle of View
| D | 1 Type | 35.5° | 2/3 Type | 24.9° | 1/1.8 Type | 20.5° |
| H | 28.8° | 20.0° | 16.4° | ||||
| V | 21.8° | 15.1° | 12.4° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
