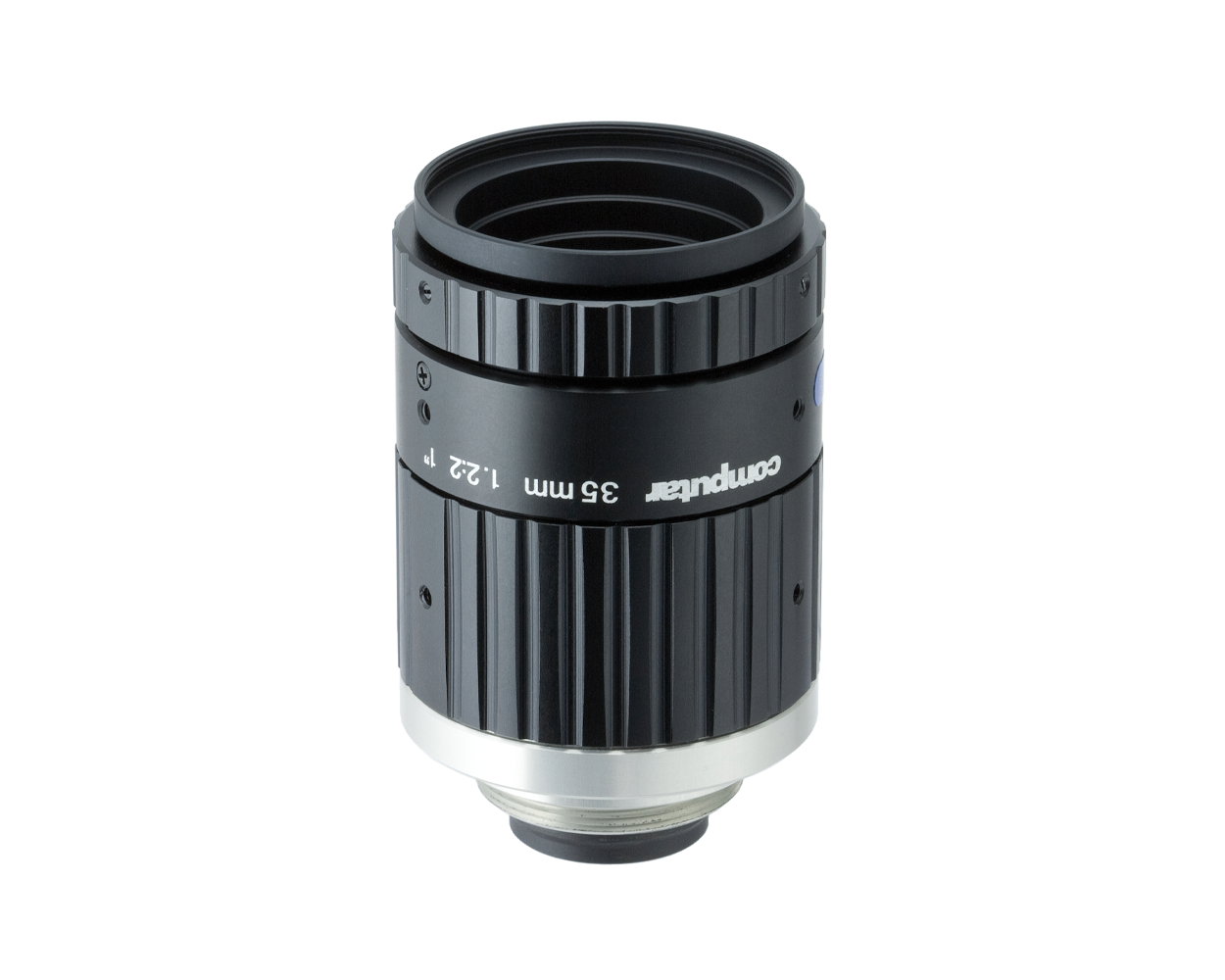

Computar - V3522-MPZ - 20MP 1" 35mm F2.2, 2.4um, Ultra-low Distortion Lens (C-Mount)
Part number:
V3522-MPZ
Price:
1" 35mm f2.2, 2.74, 20 megapixel Ultra low Distortion Lens.
Features:
- 35mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.2
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
- Nominal Distortion Design
- Ensure Corner Brightness
| Model No. | V3522-MPZ | Effective Lens Aperture | Front | φ21.5mm | |||
| Focal Length | 35mm | Rear | φ15.6mm | ||||
| Max. Aperture Ratio | 1:2.2 | Distortion | 1 Type | 0.0% | |||
| Max. Image Format | 12.8mm x 9.6mm(φ16mm) | 2/3 Type | 0.0% | ||||
| Operation Range | Iris | F2.2 ‐ F16.0 | 1/1.8 Type | 0.0% | |||
| Focus | 0.2m ‐ Inf. | Back Focal Length | 9.7mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
| Object Dimension at M.O.D. | 1 Type | 69.7mm x 52.2mm | Filter Size | M34 P=0.5mm | |||
| 2/3 Type | 47.9mm x 35.9mm | Dimensions | φ39.5mm x 55.7mm | ||||
| 1/1.8 Type | 39.1mm x 29.3mm | Weight | 118.2g | ||||
Angle of View
| D | 1 Type | 25.8° | 2/3 Type | 17.9° | 1/1.8 Type | 14.7° |
| H | 20.8° | 14.4° | 11.8° | ||||
| V | 15.7° | 10.8° | 8.9° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
