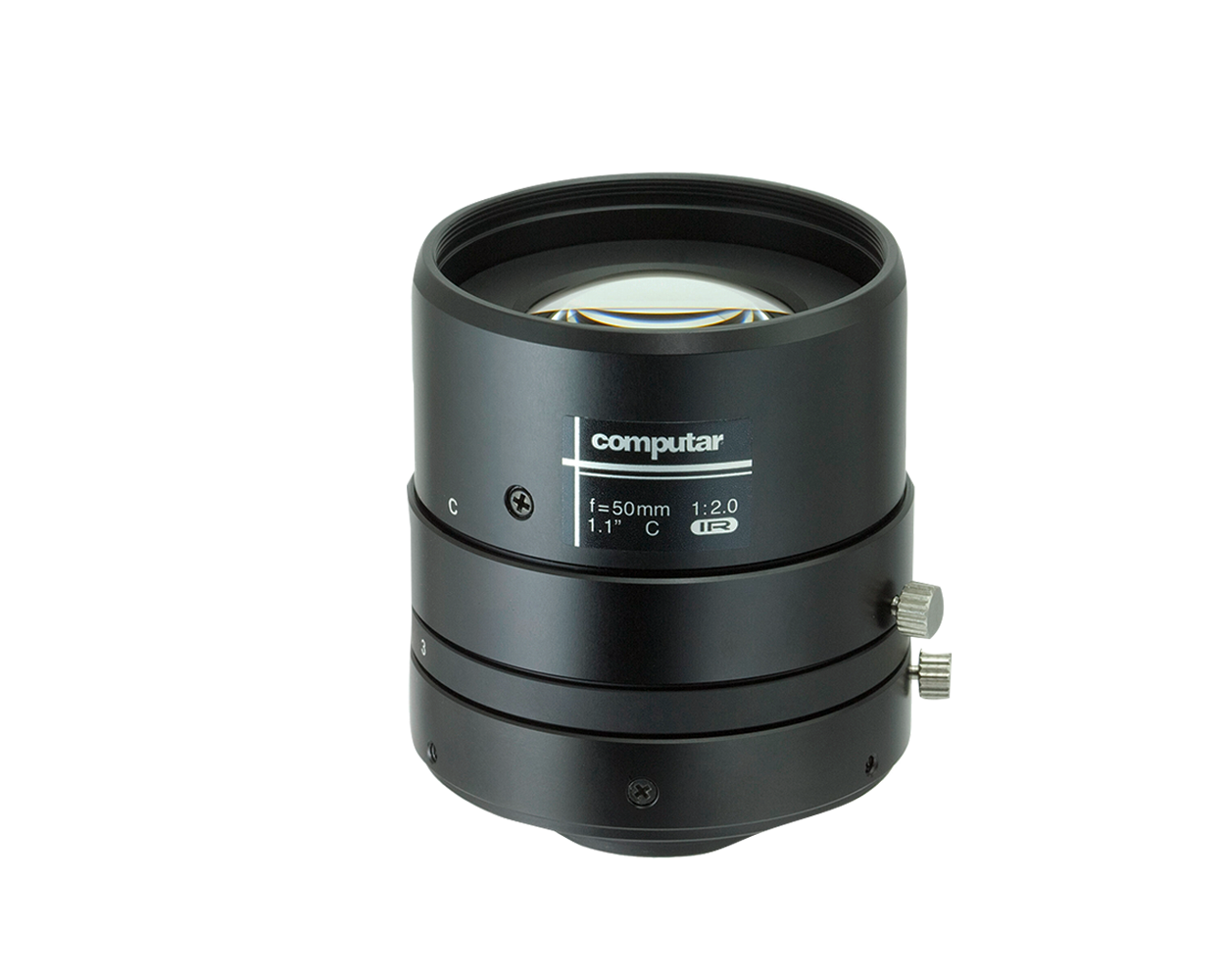

Computar - V5020FIC-MPYIR - 12MP, 1.1" 50mm F2.0, 3.45um IR Corrected Ultra-low Distortion Lens (C-Mount)
Part number:
V5020FIC-MPYIR
Price:
1.1" 50mm f2.0, 12 megapixel, manual iris, IR Corrected, C-Mount.
Features:
- 50mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F2.0
- IR Corrected
- 3.45µm pixel size
- Lightweight
- Vibration resistance up to 5G
- Image circle Ø17.6
| Model No. | V5020FIC-MPYIR | Effective Lens Aperture | Front | φ24.7mm | |||
| Focal Length | 50mm | Rear | φ18.4mm | ||||
| Max. Aperture Ratio | 1:2.0 | Back Focal Length | 14.2mm | ||||
| Max. Image Format | 14.2mm x 10.4mm(φ17.6mm） | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F2.0 ‐ F16C | Mount | C-Mount | |||
| Focus | 3m ‐ lnf. | Filter Size | M40.5 P=0.5 | ||||
| Zoom | - | Dimensions | φ46mm × 48.8mm | ||||
| Control | Iris | Manual | Weight | 151.3g | |||
| Focus | Manual | ||||||
| Zoom | - | ||||||
| Angle of View | D | 1.1 type | 19.4° | 1 type | 17.7° | 2/3 type | 12.2° |
| H | 15.7° | 14.2° | 9.8° | ||||
| V | 11.6° | 10.7° | 7.4° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
Name
Description
Size
Downloads
File
Specification
0.1mb
