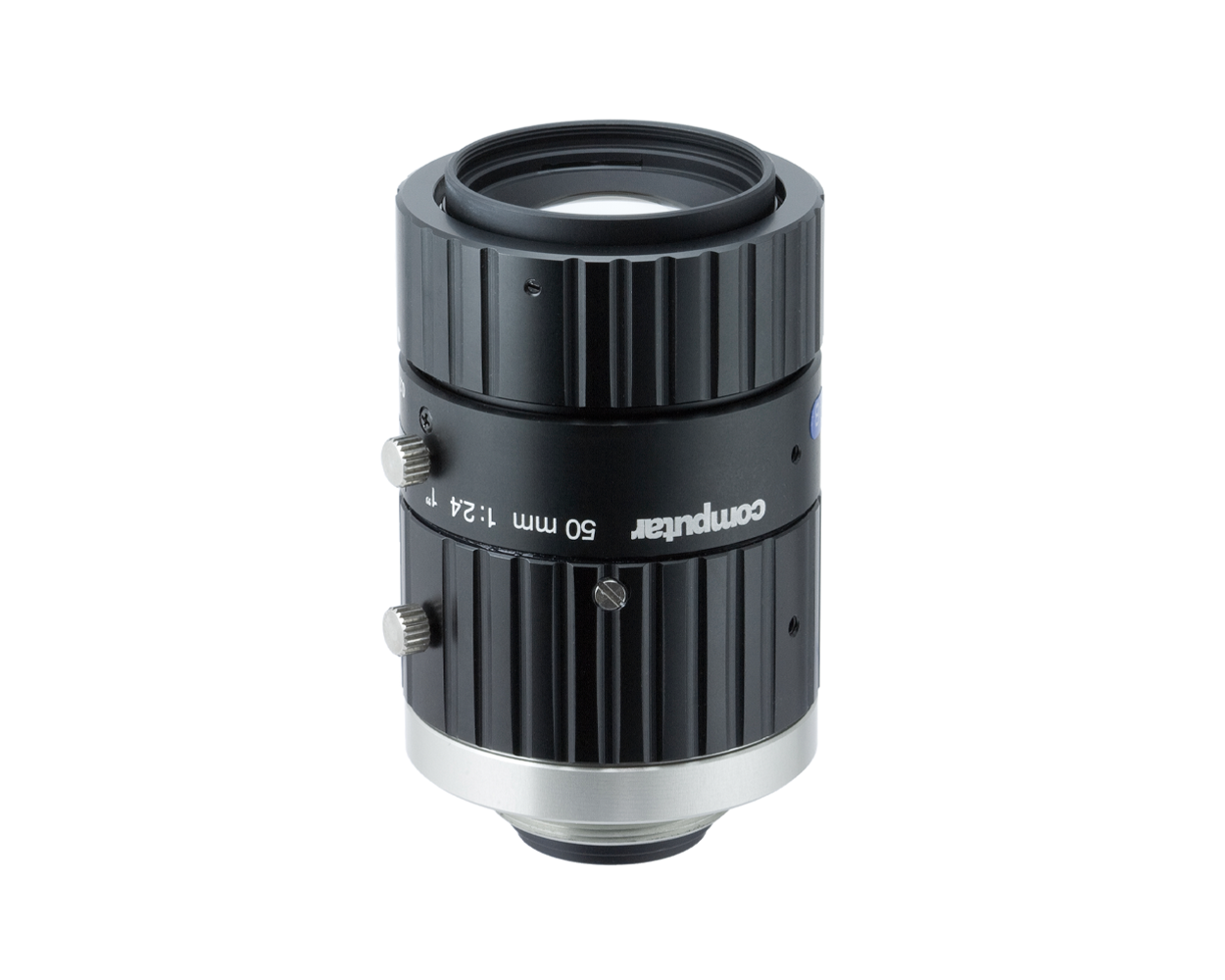

Computar - V5024-MPZ - 20MP 1" 50mm F2.4, 2.4um, Ultra-low Distortion Lens (C-Mount)
Part number:
V5024-MPZ
Price:
1" 50mm f2.4, 2.74, 20 megapixel Ultra low Distortion Lens.
Features:
- 50mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.4
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
- Nominal Distortion Design
- Ensure Corner Brightness
| Model No. | V5024-MPZ | Effective Lens Aperture | Front | φ21.8mm | |||
| Focal Length | 50mm | Rear | φ16.4mm | ||||
| Max. Aperture Ratio | 1:2.4 | Distortion | 1 Type | 0.0% | |||
| Max. Image Format | 12.8mm x 9.6mm(φ16mm) | 2/3 Type | 0.0% | ||||
| Operation Range | Iris | F2.4 ‐ F16.0 | 1/1.8 Type | 0.0% | |||
| Focus | 0.2m ‐ Inf. | Back Focal Length | 11.1mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
| Object Dimension at M.O.D. | 1 Type | 41.0mm x 30.7mm | Filter Size | M30.5 P=0.5mm | |||
| 2/3 Type | 28.1mm x 21.1mm | Dimensions | φ42mm x 60.1mm | ||||
| 1/1.8 Type | 23.0mm x 17.2mm | Weight | 138.5g | ||||
Angle of View
| D | 1 Type | 18.2° | 2/3 Type | 12.6° | 1/1.8 Type | 10.3° |
| H | 14.6° | 10.1° | 8.3° | ||||
| V | 11.0° | 7.6° | 6.2° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
