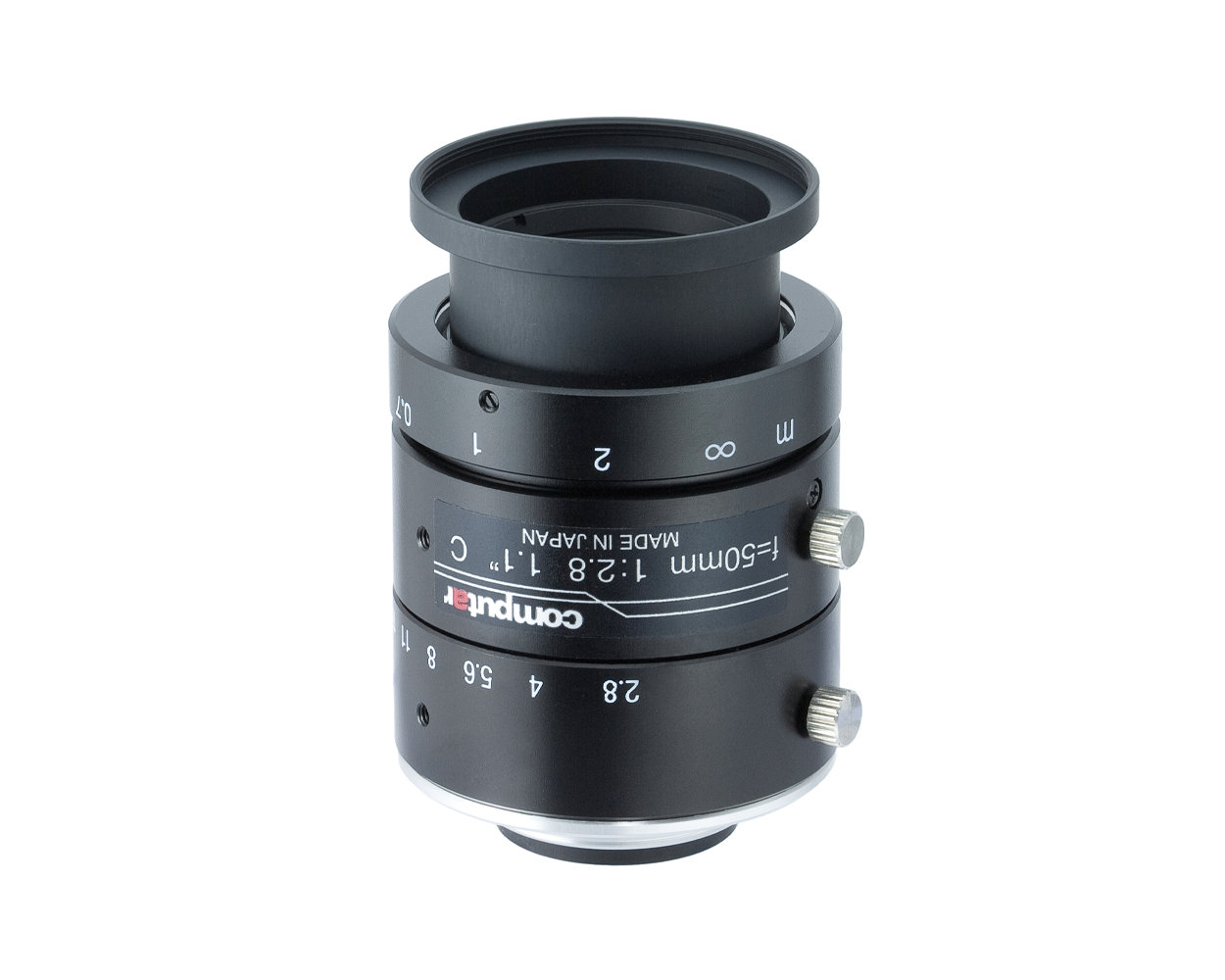

Computar - V5028-MPY - 12MP, 1.1" 50mm F2.8, 3.45mm Ultra-low Distortion Lens (C-Mount)
Part number:
V5028-MPY
Price:
1.1" 50mm f2.8, 3.45um, 12.0 megapixel Ultra low Distortion Lens.
Features:
- 50mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F2.8
- 3.45mm pixel size
- Lightweight
- Vibration resistance up to 5G
- Image circle Ø17.6
- Also available in 8, 12, 16, 25, and 35mm focal lengths
| Model No. | V5028-MPY | Effective Lens Aperture | Front | φ22.2mm | |||
| Focal Length | 50mm | Rear | φ15.4mm | ||||
| Max. Aperture Ratio | 1:2.8 | Distortion | 1.1 type | 0.1% | |||
| Max. Image Format | 14.2mm x 10.4mm(φ17.6mm) | 1 type | 0.1% | ||||
| Operation Range | Iris | F2.8 ‐ F16.0 | 2/3 type | 0.1% | |||
| Focus | 0.5m ‐ Inf. | Back Focal Length | 11.9mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
Object Dimension at M.O.D. | 1.1 Type | 12cm x 8.5cm | Filter Size | M34.0 P=0.5mm | |||
| 1 Type | 10cm x 7.8cm | Dimensions | φ39.5mm x 45.2mm | ||||
| 2/3 Type | 7.2cm x 5.4cm | Weight | 107.0g | ||||
Angle of View
| D | 1.1 Type | 20.0° | 1 Type | 18.2° | 2/3 Type | 12.6° |
| H | 16.2° | 14.6° | 10.1° | ||||
| V | 11.9° | 11.0° | 7.6° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
