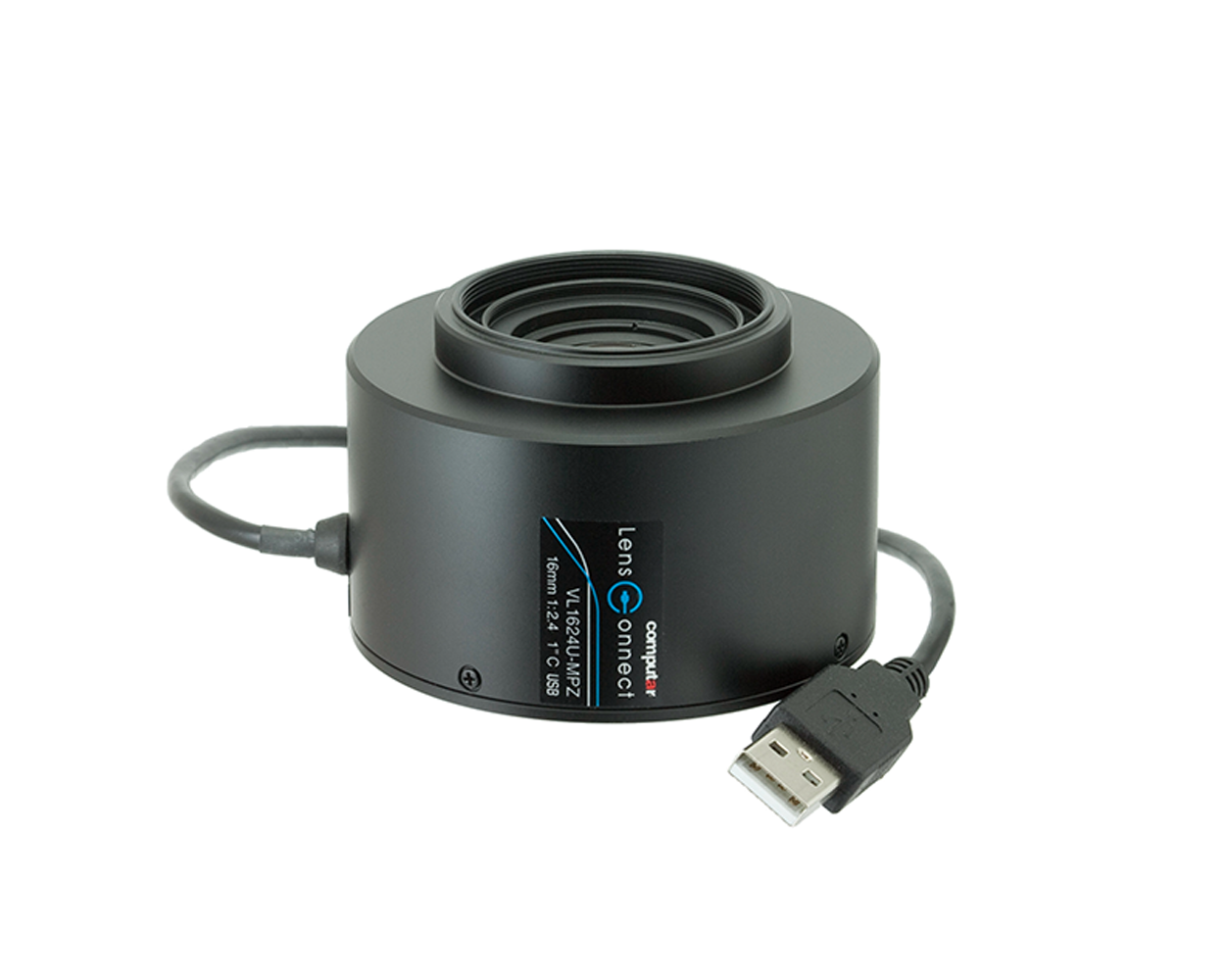

Computar - VL1624U-MPZ - 20MP, 1”, 16mm, F2.4, LensConnect, P-Iris with Remote Adjustment, (C-mount)
Part number:
VL1624U-MPZ
Price:

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB.  This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).



The remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.



Features:

  • 20MP
  • Suitable for large format sensors (IMX183)
  • 1” format
  • 16mm, f2.4
  • P-Iris  with remote adjustment
  • Power supply & control through USB
  • Floating focus design achieves ultra-high resolution from near to far.
  • Stepper motors realize precise focus control and high repeatability
  • Easy-to-install by free control software
Optical Specifications
 Model No. VL1624U-MPZ Effective Lens Aperture

 Front:φ20.9mm   Rear:φ15.9mm

 Focal Length 16mm Back Focal Length 10.7mm (In Air)
 Operation Range Iris F2.4 - F16.0 Flange Back Length 17.526mm (In Air)
 Focus 0.1m - Inf. Max. Image Format 12.8mm x 9.6mm(φ16mm)
 Object Dimension  at M.O.D. 1      Type 88.6mm x 66.3mmDistortion 1      Type 0.0%
 2/3   Type 60.7mm x 45.5mm 2/3   Type -0.4%
1/1.8 Type 49.6mm x 37.2mm1/1.8 Type -0.4%
 Angle of View D 1 Type 53.2° 2/3 Type 38.1° 1/1.8 Type 31.6°
 H 43.8° 30.9° 25.5°
 V 33.6° 23.4° 19.2°
Mechanical & Electrical Specifications
 Control Interface USB2.0 Dimensions As per the attached drawing
 Power mode Bus powerd (500mA) Mount C-Mount
 Connector USB TypeA Weight 280g
 Operating Temperature -10℃ - +50℃ Tripod Screw -
 Control Iris Motorized Filter thread M43 x P0.75mm
 Focus Motorized
