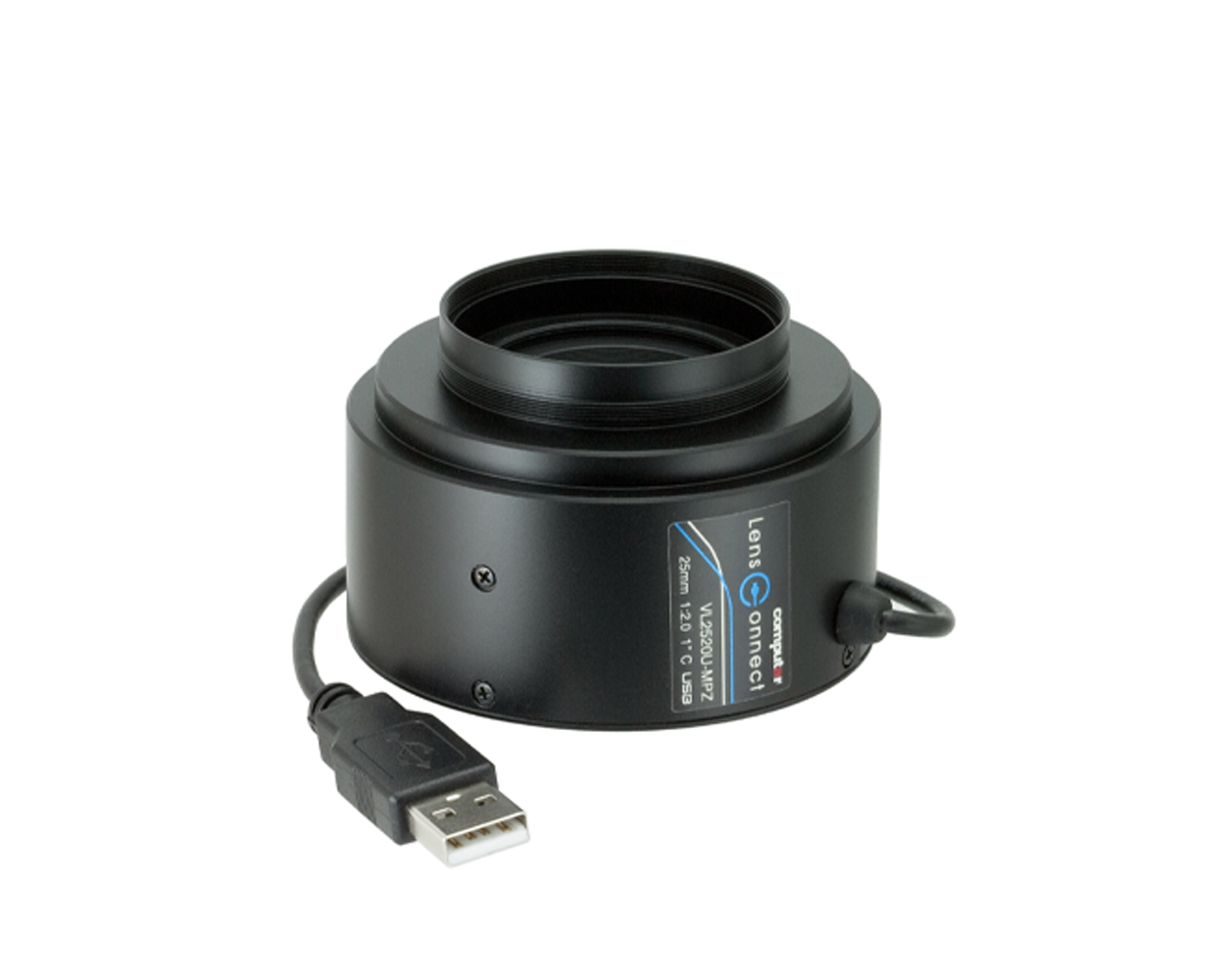

Computar - VL2520U-MPZ - 20MP, 1”, 25mm, F2.0, LensConnect, P-Iris with Remote Adjustment, (C-mount)
Part number:
VL2520U-MPZ
Price:

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB.  This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).



The remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.



Features:

  • 20MP
  • Suitable for large format sensors (IMX183)
  • 1” format
  • 25mm, f2.0
  • P-Iris  with remote adjustment
  • Power supply & control through USB
  • Floating focus design achieves ultra-high resolution from near to far.
  • Stepper motors realize precise focus control and high repeatability
  • Easy-to-install by free control software
Optical Specifications
 Model No. VL2520U-MPZ Effective Lens Aperture

 Front:φ19.2mm   Rear:φ17.1mm

 Focal Length 25mm Back Focal Length 9.1mm (in Air)
 Operation Range Iris F2.0 - F16.0 Flange Back Length 17.526mm (In Air)
 Focus 0.15m - Inf. Max. Image Format 12.8mm x 9.6mm(φ16mm)
 Object Dimension  at M.O.D. 1      Type 66.9mm x 50.1mmDistortion 1      Type 0.0%
 2/3   Type 45.9mm x 34.4mm 2/3   Type 0.0%
1/1.8 Type 37.5mm x 28.1mm1/1.8 Type 0.0%
 Angle of View D 1 Type 35.5° 2/3 Type 24.9° 1/1.8 Type 20.5°
 H 28.8° 20.0° 16.4°
 V 21.8° 15.1° 12.4°
Mechanical & Electrical Specifications
 Control Interface USB2.0 Dimensions As per the attached drawing
 Power mode Bus powerd (500mA) Mount C-Mount
 Connector USB TypeA Weight 257g
 Operating Temperature -10℃ - +50℃ Tripod Screw -
 Control Iris Motorized Filter thread M46 x P0.75mm
 Focus Motorized
Name
Description
Size
Downloads
File
Specification
0.7mb
