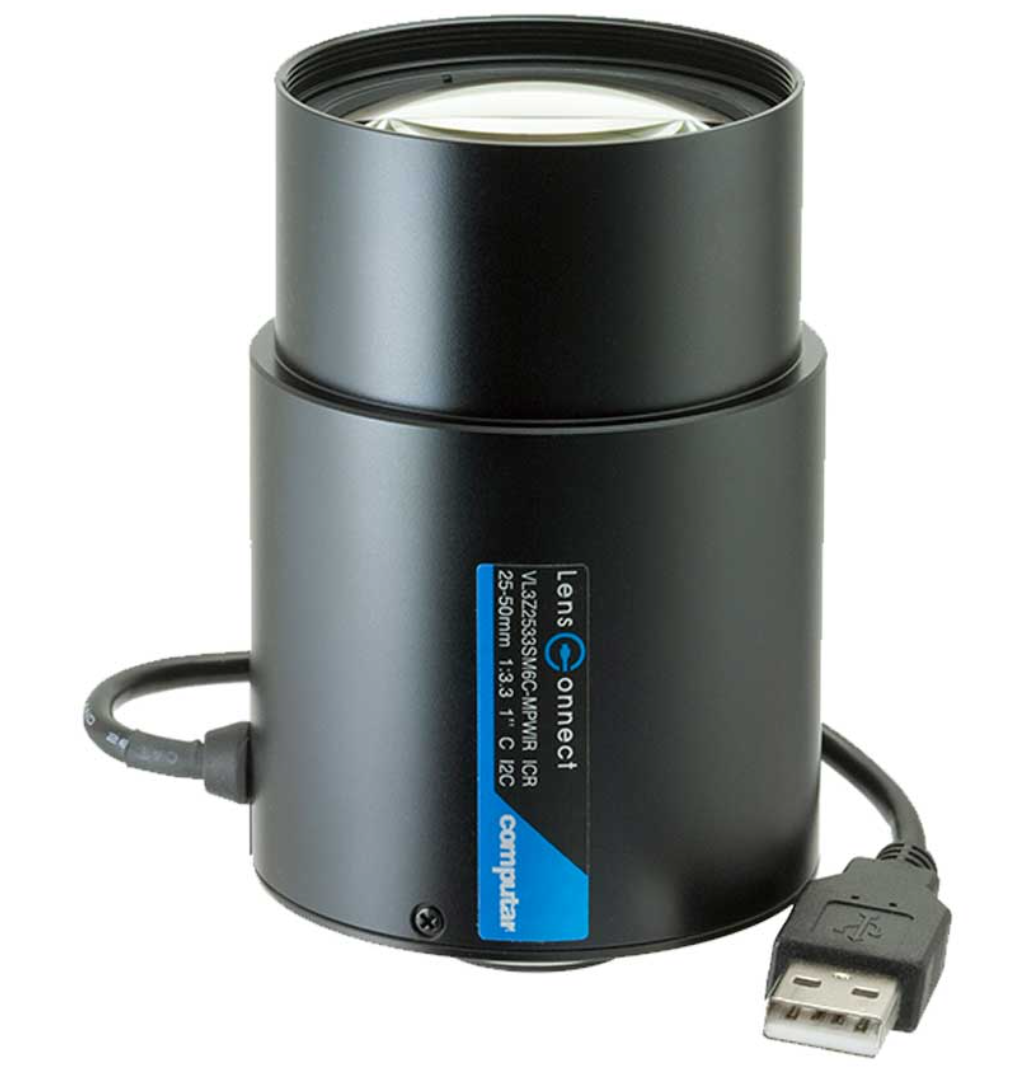

Computar - VL2Z2533UM6C-MPWIR - 9MP, 1”, 25-50mm, F3.3, LensConnect, P-Iris with remote focus and zoom adjustment, (C-mount)

Product Overview

The Computar VL2Z2533UM6C-MPWIR is a 9-megapixel motorized LensConnect lens designed for remote optical adjustment through USB. It supports 1" sensors and provides a 25-50mm focal range with a C-mount design.

Key Configuration

9MP lens; LensConnect series; 1" sensor format; 25-50mm focal range; F3.3 aperture; C-mount; remote P-Iris; remote zoom; remote focus; FA; IR; USB power and control; Windows and Linux setup software.

Key Features

• USB-based LensConnect control supports remote adjustment without manual lens access
• 25-50mm varifocal range allows remote zoom adjustment for field-of-view changes
• Remote P-Iris control supports precise aperture adjustment from the host system
• Floating focus design helps maintain high resolution from near to far
• Stepper motors provide precise focus control and high repeatability

Technical Context

The LensConnect platform is engineered to provide both power supply and lens control through USB. Its plug-and-play design works with setup software compatible with Windows or Linux and supports remote zoom, focus, and iris adjustment.

Installation Notes

This C-mount lens is suitable for imaging systems that require remote lens control and repeatable optical positioning. The 1" sensor format and IR support make it useful for high-resolution applications where manual lens adjustment is impractical.
