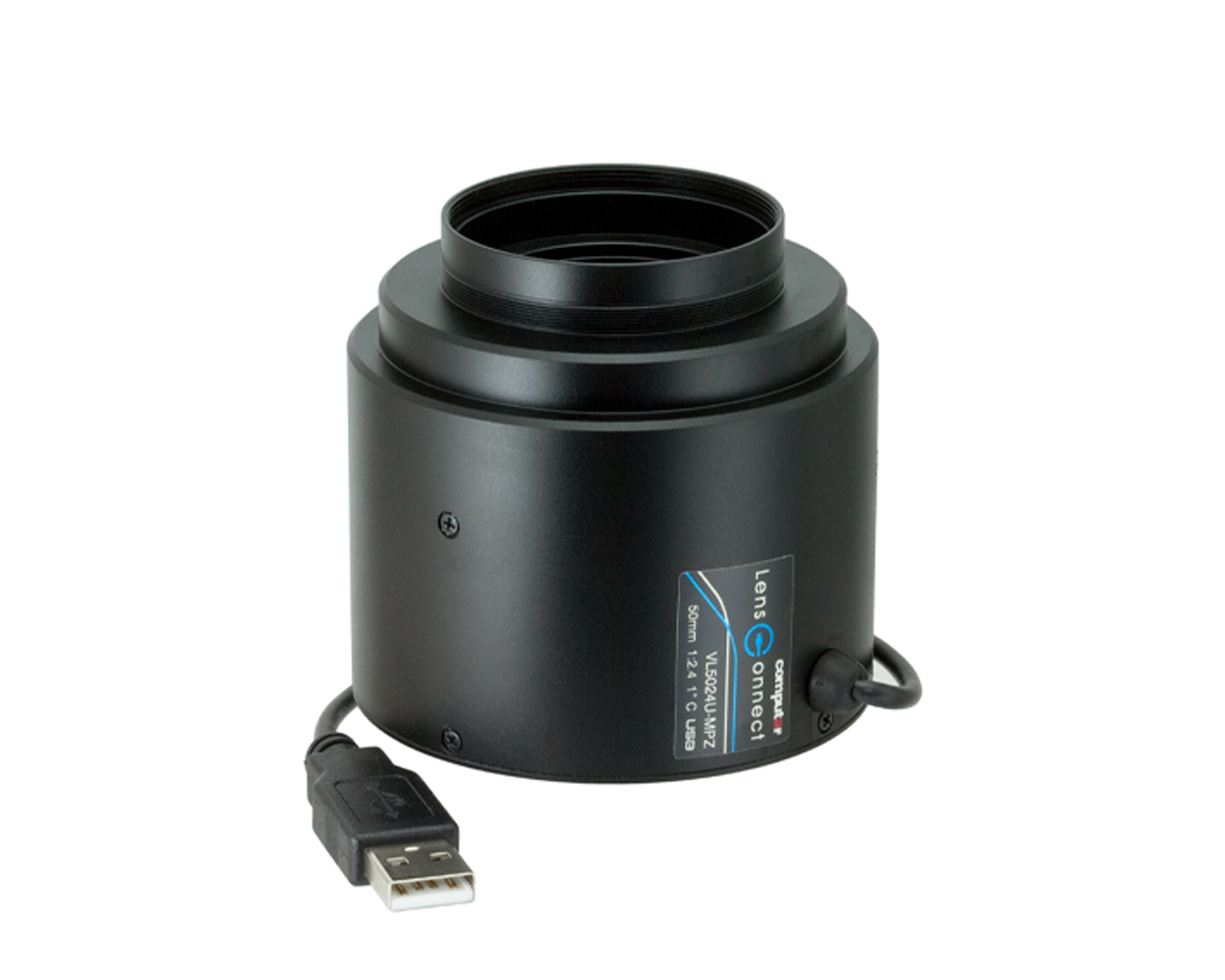

Computar - VL5024U-MPZ - 1" 20MP, 50mm, F2.4, LensConnect, P-Iris with Remote Adjustment, (C-mount)
Part number:
VL5024U-MPZ
Price:

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).



In addition, the remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.



Features:

  • 20MP
  • Suitable for large format sensors (IMX183)
  • 1” format
  • 50mm, f2.4
  • P-Iris  with remote adjustment
  • Power supply & control through USB
  • Floating focus design achieves ultra-high resolution from near to far.
  • Stepper motors realize precise focus control and high repeatability
  • Easy-to-install by free control software
Optical Specifications
 Model No. VL5024U-MPZ Effective Lens Aperture

 Front:φ21.8mm   Rear:φ16.4mm

 Focal Length 50mm Back Focal Length 11.1mm (in Air)
 Operation Range Iris F2.4 - F16.0 Flange Back Length 17.526mm (In Air)
 Focus 0.2m - Inf. Max. Image Format 12.8mm x 9.6mm(φ16mm)
 Object Dimension  at M.O.D. 1      Type 41.0mm x 30.7mmDistortion 1      Type 0.0%
 2/3   Type 28.1mm x 21.1mm 2/3   Type 0.0%
1/1.8 Type 23.0mm x 17.2mm1/1.8 Type 0.0%
 Angle of View D 1 Type 18.2°  2/3 Type 12.6° 1/1.8 Type 10.3°
 H 14.6° 10.1°  8.3°
 V 11.0°  7.6°  6.2°
Mechanical & Electrical Specifications
 Control Interface USB2.0 Dimensions As per the attached drawing
 Power mode Bus powerd (500mA) Mount C-Mount
 Connector USB TypeA Weight 326g
 Operating Temperature -10℃ - +50℃ Tripod Screw -
 Control Iris Motorized Filter thread M43 x P0.75mm
 Focus Motorized
