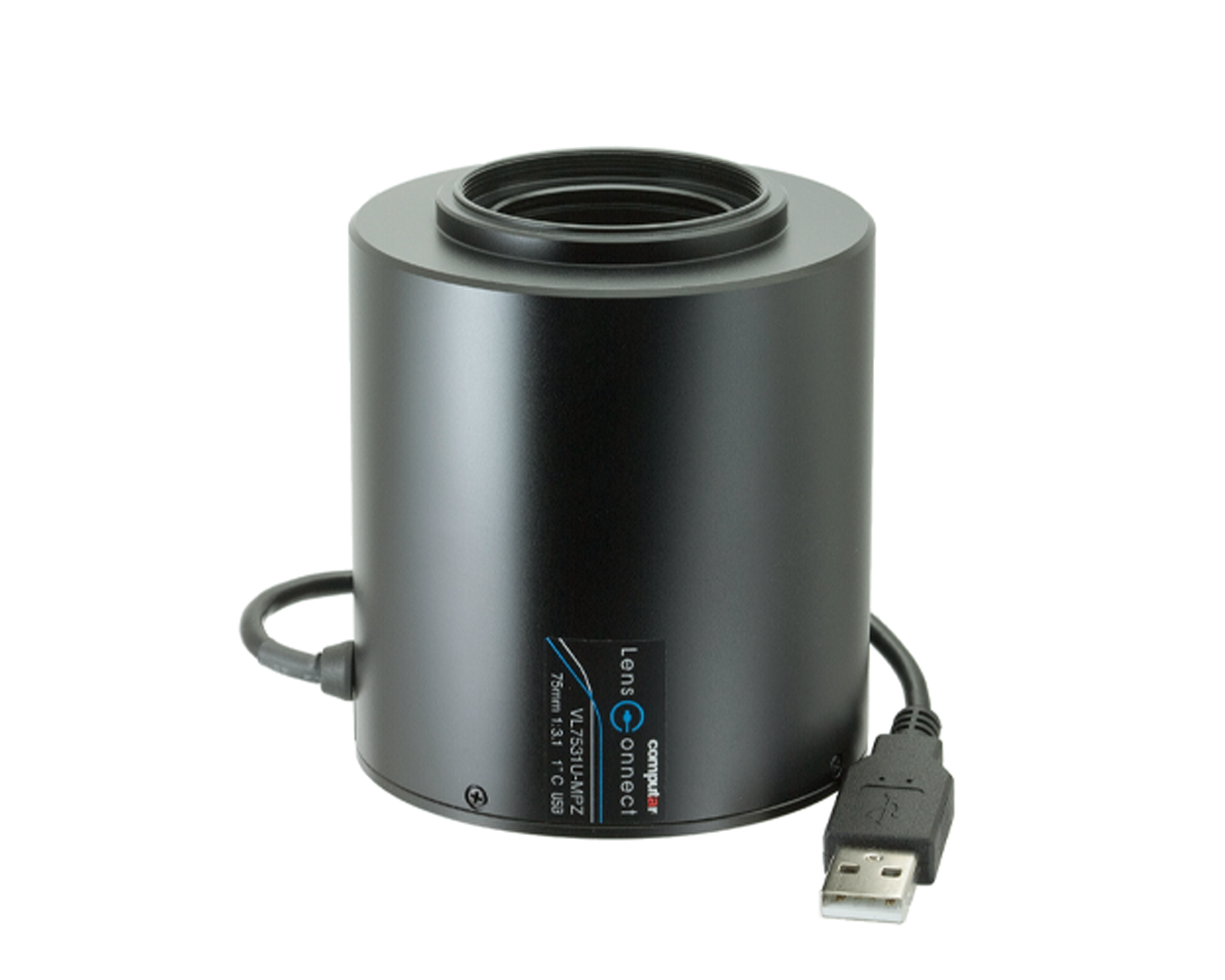

Computar - VL7531U-MPZ - 20MP, 1”, 75mm, F3.1, LensConnect, P-Iris with Remote Focus and Zoom Adjustment (C-mount)
Part number:
VL7531U-MPZ
Price:

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).



The remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.



Features:

  • 20MP
  • Suitable for large format sensors (IMX183)
  • 1” format
  • 75mm, F3.1
  • P-Iris  with remote adjustment
  • Power supply & control through USB
  • Floating focus design achieves ultra-high resolution from near to far.
  • Stepper motors realize precise focus control and high repeatability
  • Easy-to-install by free control software
Optical Specifications
 Model No. VL7531U-MPZ Effective Lens Aperture

 Front:φ23.6mm   Rear:φ16.5mm

 Focal Length 75mm Back Focal Length 12.0mm (in Air)
 Operation Range Iris F3.1 - F16.0 Flange Back Length 17.526mm (In Air)
 Focus 0.25m - Inf. Max. Image Format 12.8mm x 9.6mm(φ16mm)
 Object Dimension  at M.O.D. 1      Type 38.9mm x 29.2mmDistortion 1      Type 0.0%
 2/3   Type 26.8mm x 20.1mm 2/3   Type 0.0%
1/1.8 Type 21.9mm x 16.4mm1/1.8 Type 0.0%
 Angle of View D 1 Type 12.2° 2/3 Type 8.4° 1/1.8 Type 6.9°
 H 9.8° 6.7° 5.5°
 V 7.3° 5.0° 4.1°
Mechanical & Electrical Specifications
 Control Interface USB2.0 Dimensions As per the attached drawing
 Power mode Bus powerd (500mA) Mount C-Mount
 Connector USB TypeA Weight 415g
 Operating Temperature -10℃ - +50℃ Tripod Screw -
 Control Iris Motorized Filter thread M43 x P0.75mm
 Focus Motorized
