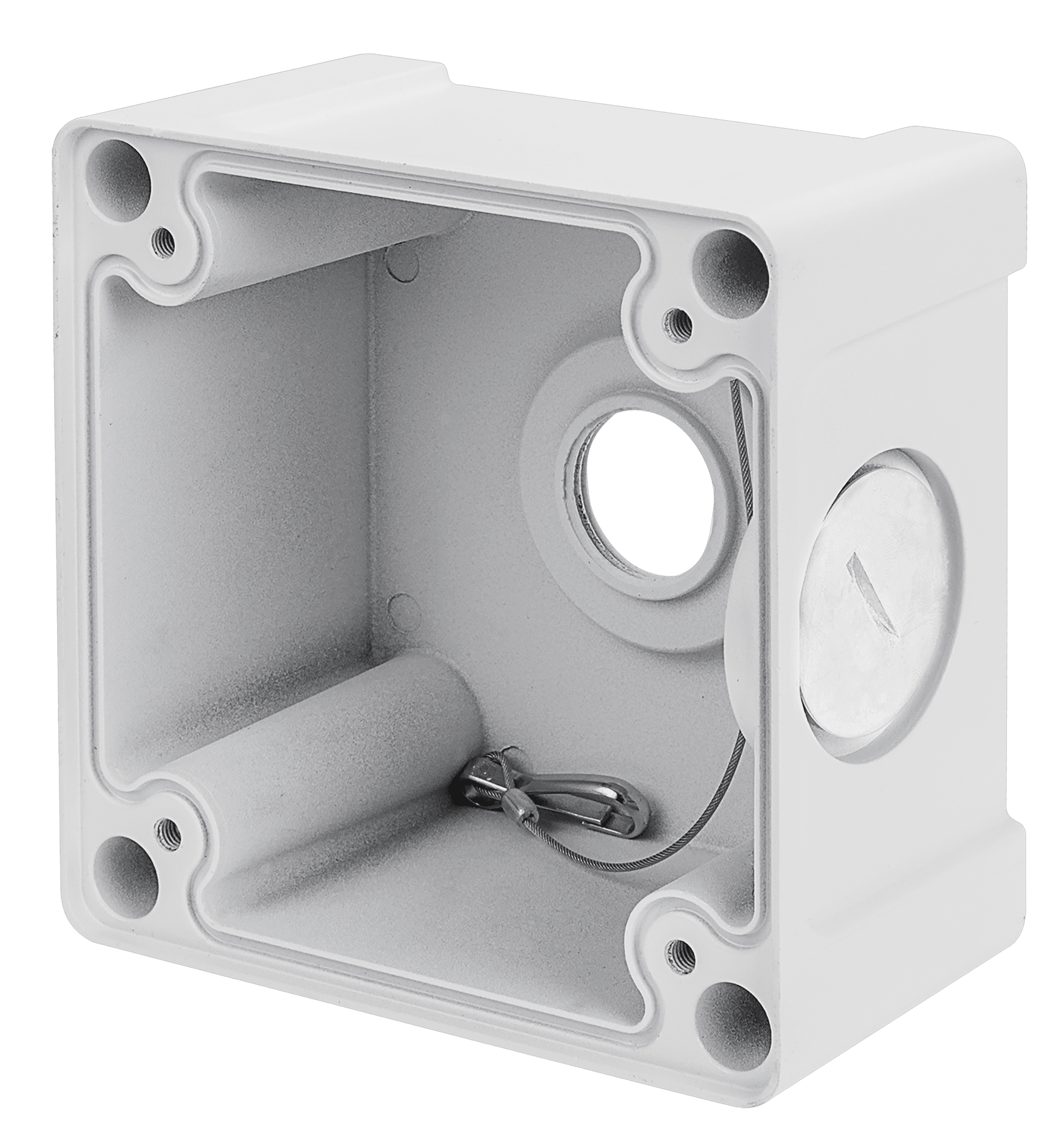

Conduit Box.
Features:
- Supported Models
Camera: IB836BA-EHF3, IB836BA-EHT, IB836BA-HF3, IB836BA-HT, IB8382-EF3, IB8382-ET, IB8382-F3, IB8382-T, IB9371-EHT, IB9371-HT, IB9381-EHT, IB9381-HT, IB9365-EHT, IB9365-HT, IB9367-EHT, IB9367-HT, IB9367-H, IB8377-EHT, IB8377-HT, IB9391-EHT
Wall Mount Bracket: AM-218
Pole Mount Bracket: AM-312
Corner Mount Bracket: AM-412 - Material: Aluminum Alloy
- Color: White
- Dimensions: 122 (L) x 122 (W) x 63 (H) mm
- Weight: 550 g
| Technical Specification | |
| Model | AM-719 |
| P/N | 100184500G |
| Material | Aluminum Alloy |
| Color | White |
| Pipe Thread | PF 3/4” |
| Casing | IP66 (with supported cameras) |
| Dimensions | 122 (L) x 122 (W) x 63 (H) mm |
| Weight | 0.55 kg |
| Box Dimension | 217 (L) x 174 (W) x 94 (H) mm (1 pc) |
| Box Weight | 0.79 kg |
| Carton Dimension | 490 (L) x 367 (W) x 252 (H) mm (10pcs) |
| Carton Weight | 8.8 kg |
| Supported Models | IB836B-EHF3, IB836B-EHT, IB836B-HF3, IB836B-HT, IB836BA-EHF3/EHT/HF3/HT, IB8382-EF3/ET/F3/T, IB9371-(E)HT, IB9381-(E)HT, IB9365-(E)HT, IB9365-(E)HT-A, IB9367-(E)H(T), IB8377-(E)HT, IB9391-EHT, IB9387-(E)H(T), IB9387-(E)HT-A |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
Quick Guide
1.6mb
