Uniview - GCB01-B7 - UNV Connection Box with UNV Link Pro
Part number:
GCB01-B7
Price:
Connection Box with UNV Link Pro
| GCB01-B7 | ||
| Interface | ||

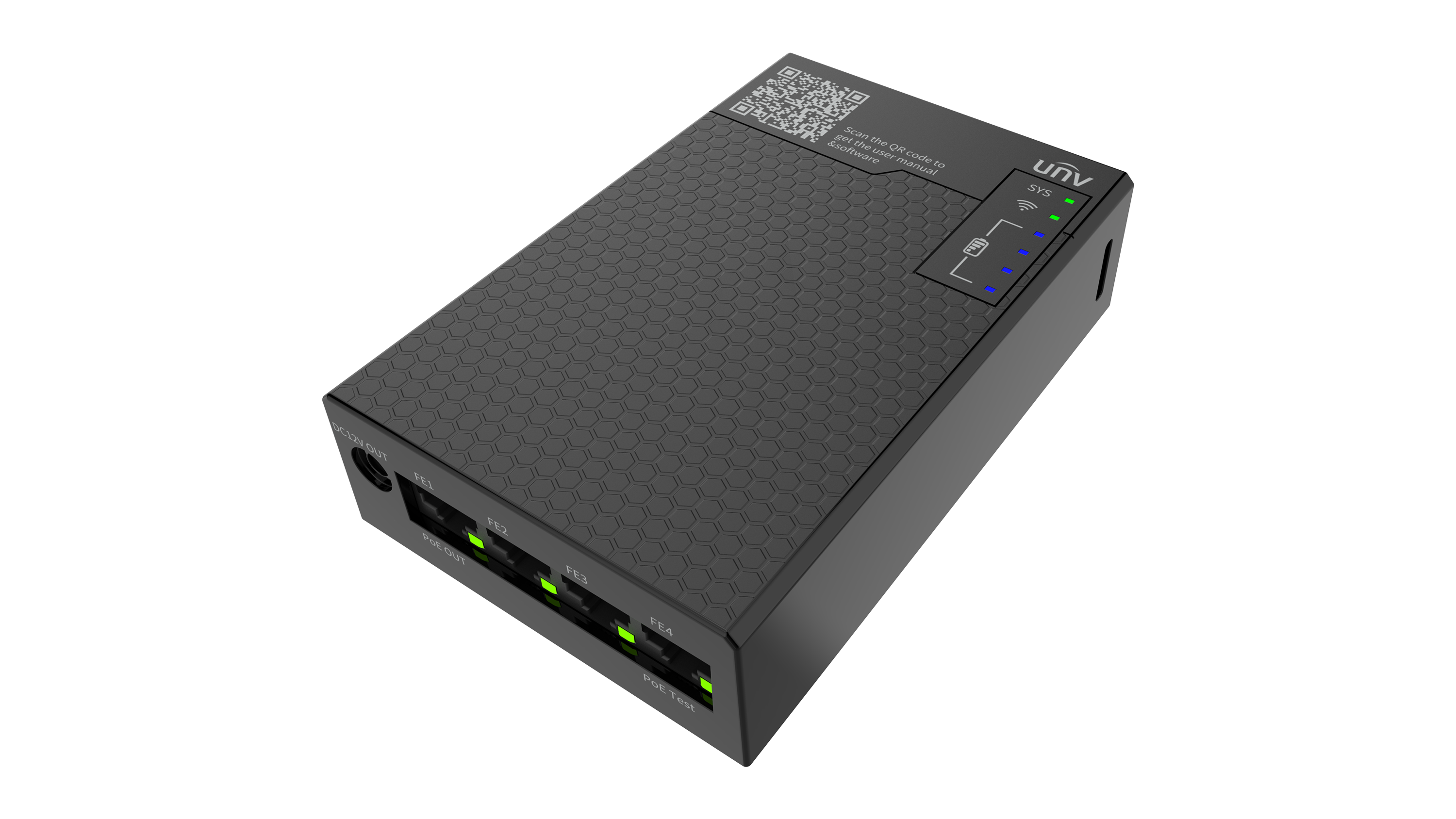

| Network | 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test | |
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V) | |
| Network | ||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) | |
| Structure / Environment | ||
| Battery Capacity | 18650 lithium battery, 7500mAH | |

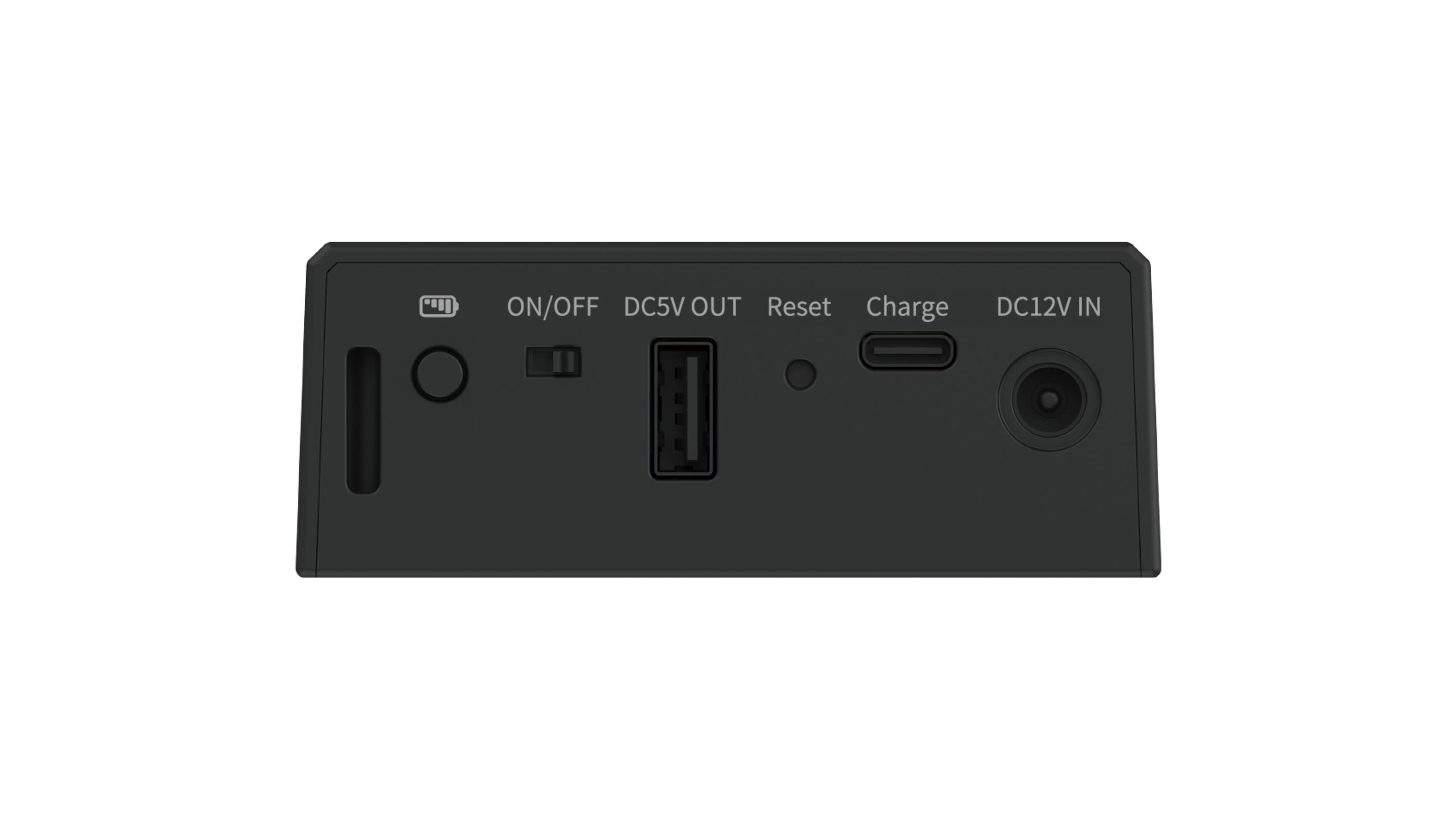

| Power Input | 1 x DC 5V/2A max, type-c | |
| Power Output | 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A | |
| General | ||

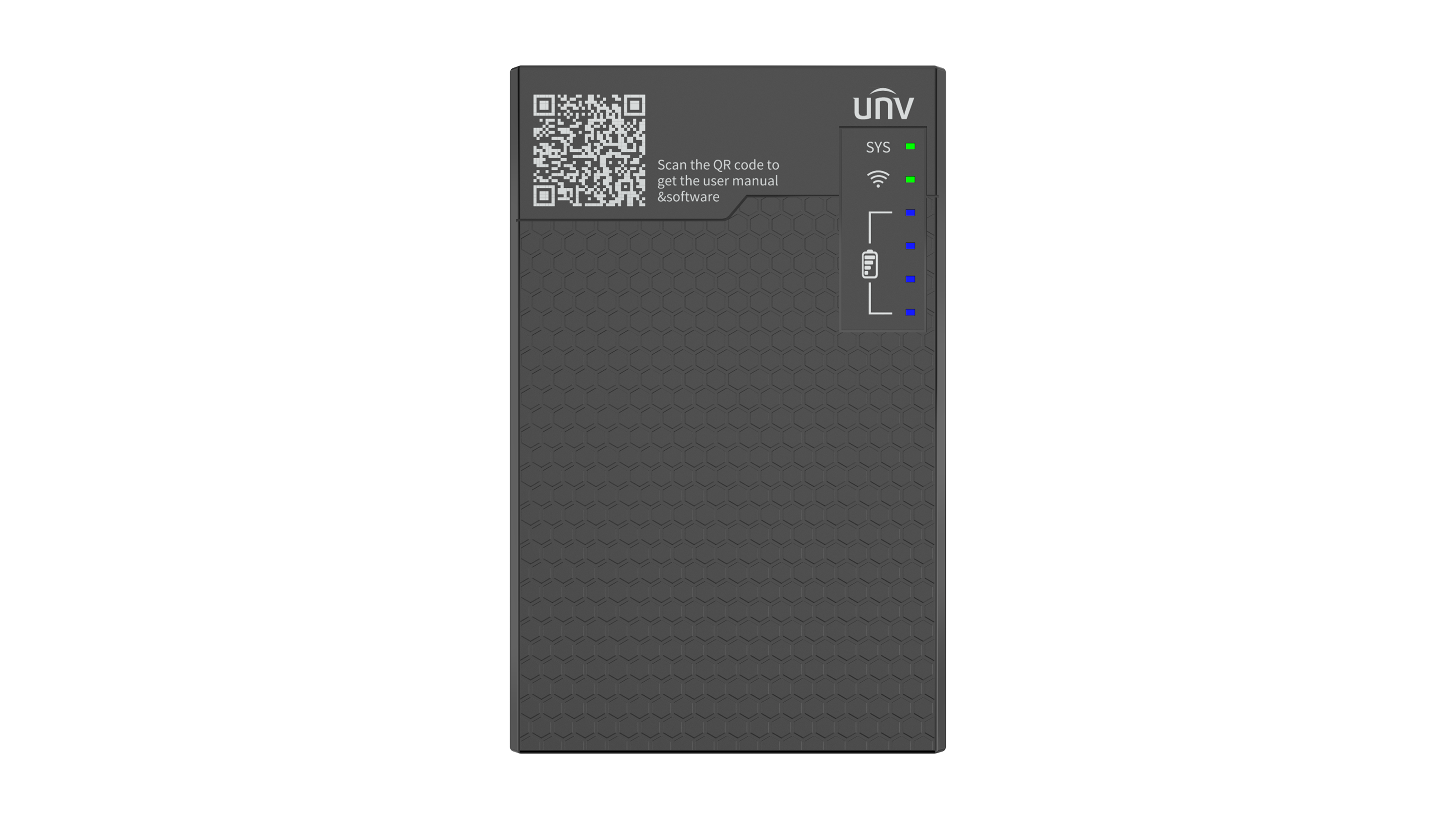

| LED Indicator | System indicator, WiFi indicator, Battery indicator | |
| Dimensions | 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H) | |
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |
| Reset Button | Support | |
