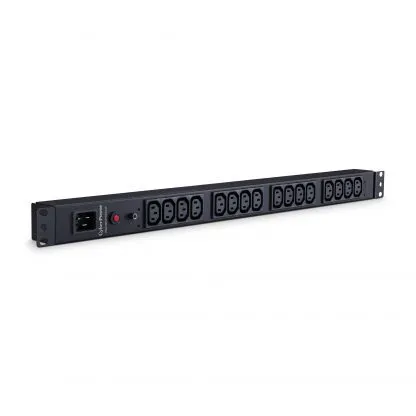

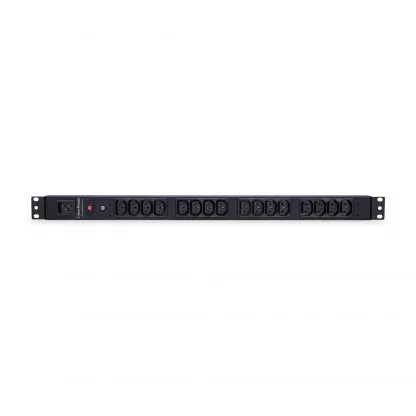

The CyberPower PDU20BVHVIEC16F, a 16-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 16 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVIEC16F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20BVHVIEC16F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Features:
| Input | |
| Voltage | 200 – 230 V |
| Maximum Current | 20A (derated to 16A) |
| Frequency | 50/60 Hz |
| Plug Type | IEC-320 C20 |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Output | |
| Nominal Output Voltage | 200 – 230 V |
| Outlet Type | IEC-320 C13 |
| Outlets – Front | 16 × C13 |
| Outlets – Rear | 0 |
| Outlets – Total | 16 |
| Overload Protection | 16A |
| Physical | |
| Rack Size | 0U |
| Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications |
| racks and a variety of other surface types | |
| Style | Rackmount |
| Vertical Rackmount | |
| Wallmount/Under-Counter | |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Adjustable Mounting Brackets | 3 sets (L-short, L-long, flat) |
| Dimensions – W×H×D (in) | 1.75 × 24 × 1.5 inches |
| Weight (lbs) | 3.0 lbs |
| Environmental | |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety | UL60950_1 certified by ETL |
| CSA C22.2 | |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | Limited lifetime |
