CyberPower - PR5000RTXL2UC - 3000VA Smart App Sinewave Rack/Tower UPS
Product Overview
The CyberPower PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS designed to provide battery backup, surge protection, and clean sine wave output for critical IT, server, data center, and network equipment. It uses line-interactive topology with Automatic Voltage Regulation to correct minor voltage fluctuations without switching to battery power, helping conserve battery capacity and extend battery life.
Key Configuration
Model: PR5000RTXL2UC | Product Type: Smart App Sinewave Rack/Tower UPS | Topology: Line-interactive | Output Waveform: Sine wave | Installation: Rack or tower | Display: Rotatable multifunction LCD panel | EBM Compatibility: BP48VP2U04 | Remote Management: RMCARD205 included | Warranty: Three-year warranty
Key Features
· Provides battery backup for safe shutdown during utility power failures
· Delivers sine wave output for sensitive equipment requiring clean power
· Automatic Voltage Regulation corrects brownouts and overvoltage conditions without using battery power
· Battery Equalization Technology helps maintain balanced battery voltages and extend battery life
· Critical load outlets help extend runtime by powering down non-critical equipment
· Fast Charge Technology helps restore UPS and EBM backup capacity more quickly

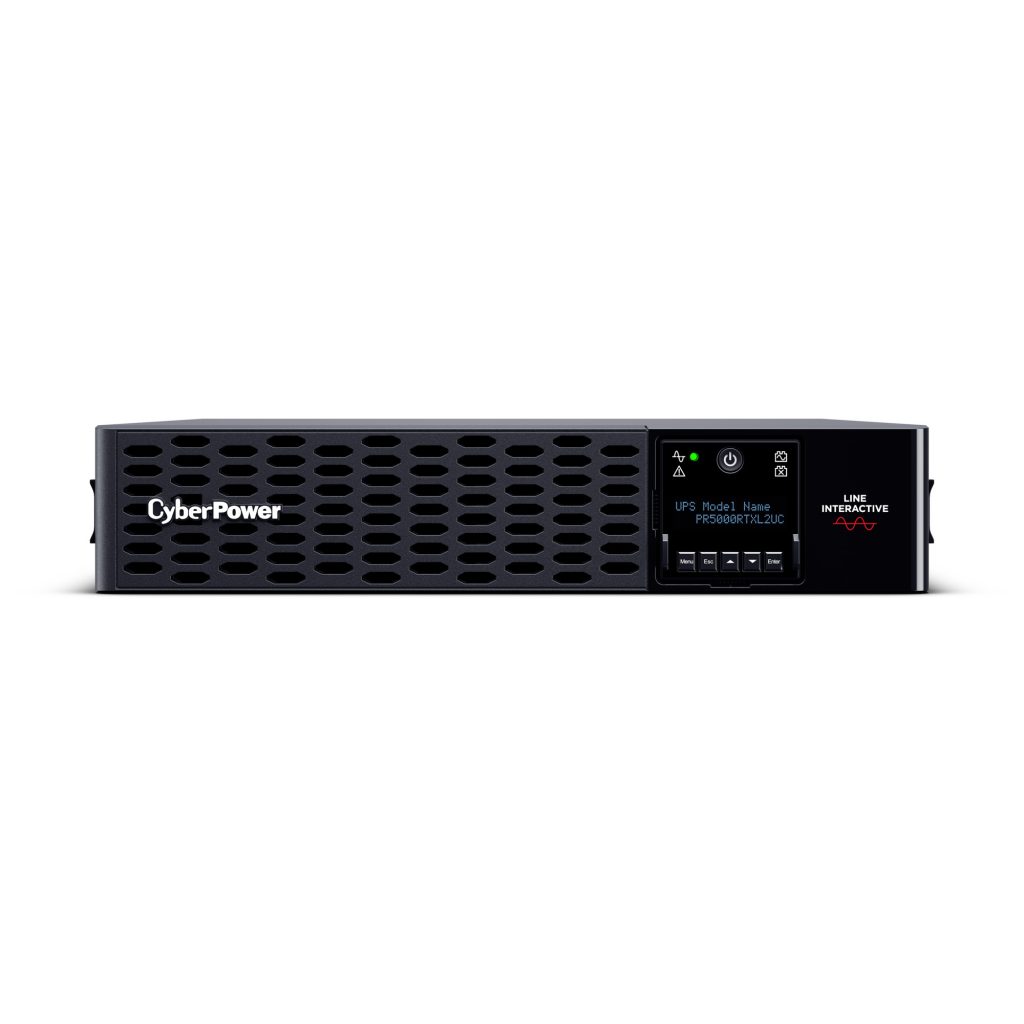

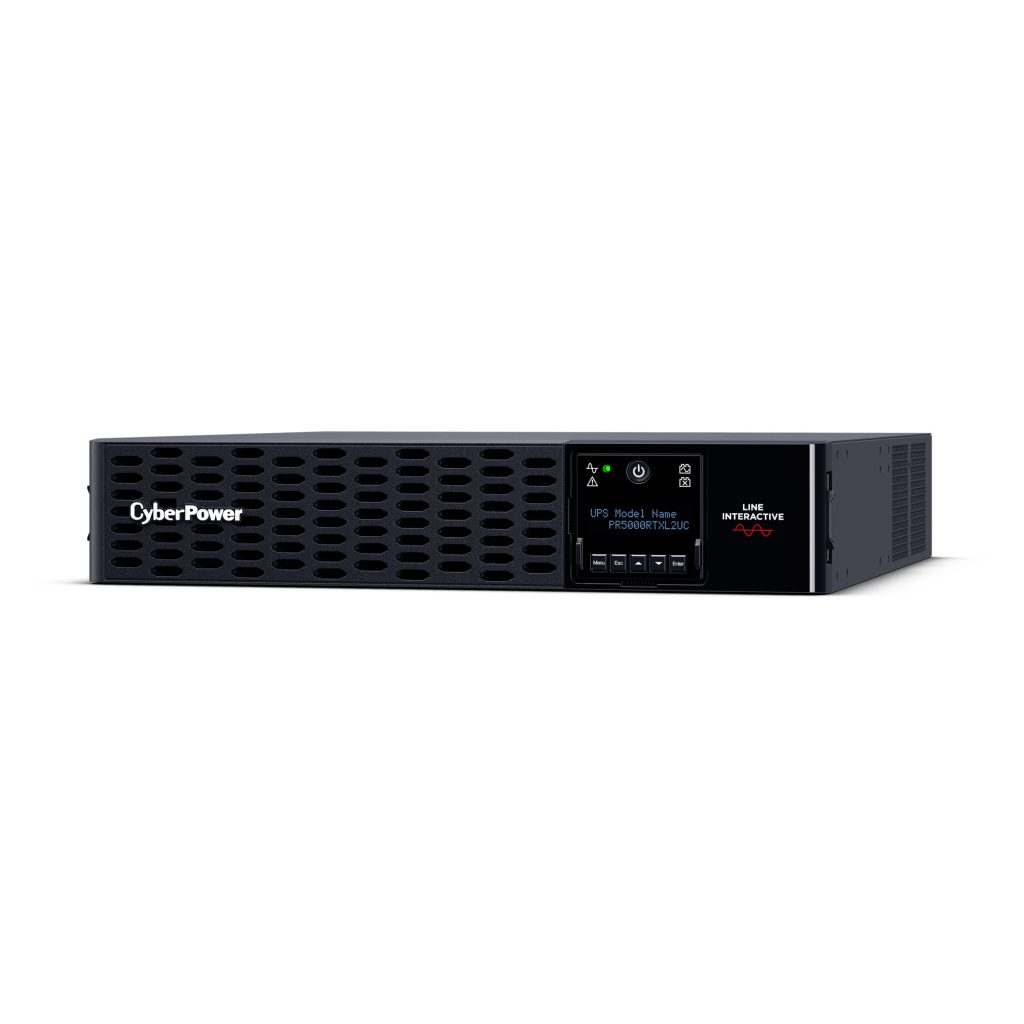

· Rotatable multifunction LCD panel displays UPS status, setup, control, and testing options
· Includes RMCARD205 network management card for remote management and control
Technical Context

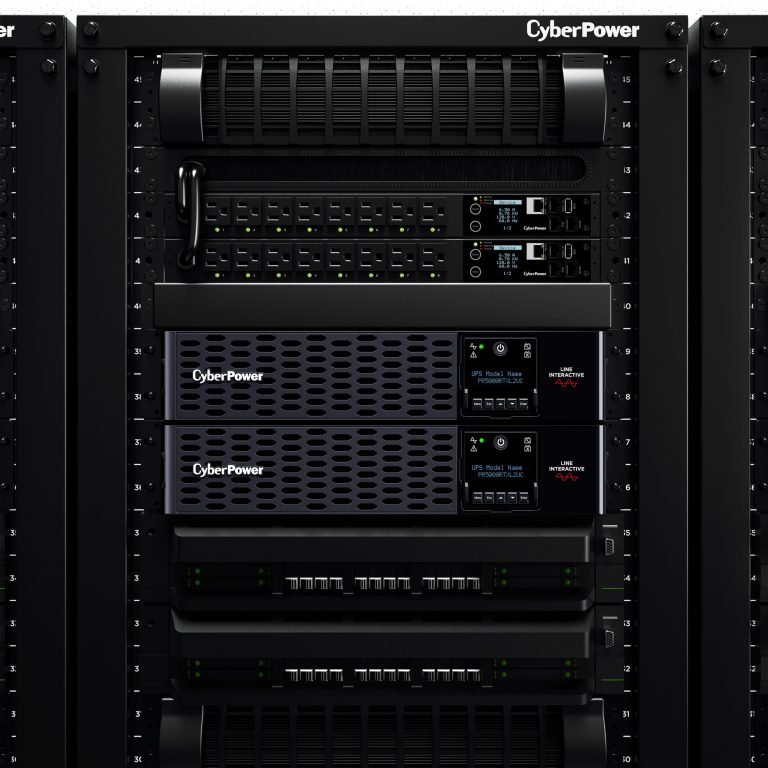

The PR5000RTXL2UC is built for environments where power stability and runtime management are essential, including corporate servers, data centers, edge closets, enterprise servers, IT closets, network storage devices, rack installations, and server rooms.
The UPS supports expanded runtime with one BP48VP2U04 Extended Battery Module and includes built-in cloud monitoring. PowerPanel Business Software provides additional tools for monitoring and managing backup power across professional IT environments.
Installation Notes

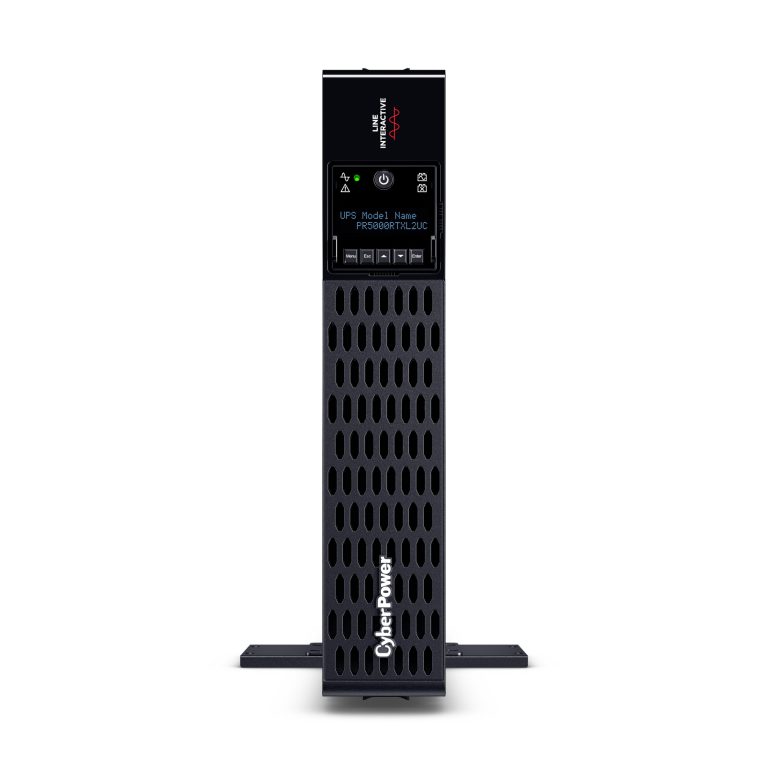

The PR5000RTXL2UC supports horizontal rack or vertical tower installation. The package includes the UPS, faceplate, CP2RAIL05 rail kit, USB cable, EPO cable, serial cable, user manual, rack mount brackets, rack mount handles, tower baseplates, and mounting hardware.
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | No |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 8 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP48VP2U04 |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Replacement Battery Cartridge Quantity | 2 |
| Runtime at Full Load | 1.7 min |
| Runtime at Half Load | 8.3 min |
| Typical Recharge Time | 3 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 131 - 302 VAC |
| Circuit Breaker | 29 |
| Cold Start | Yes |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Plug Type | Hardwire Terminal (NEMA L6-30P power cord included) |
| Input Voltage | 200 - 240 VAC |
| Input Voltage Range | 148 VAC - 254 VAC 160 VAC - 288 VAC |
| Nominal Input Voltage | 200 - 239 VAC |
| Phase | Single Phase |
| Plug Style | Hardwire Terminal (NEMA L6-30P Power Cord Included) |
| Output | |
| Automatic Voltage Regulation | Double Boost Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 200/208/220/230/240 VAC ± 5% |
| On Battery Waveform | Sine Wave |

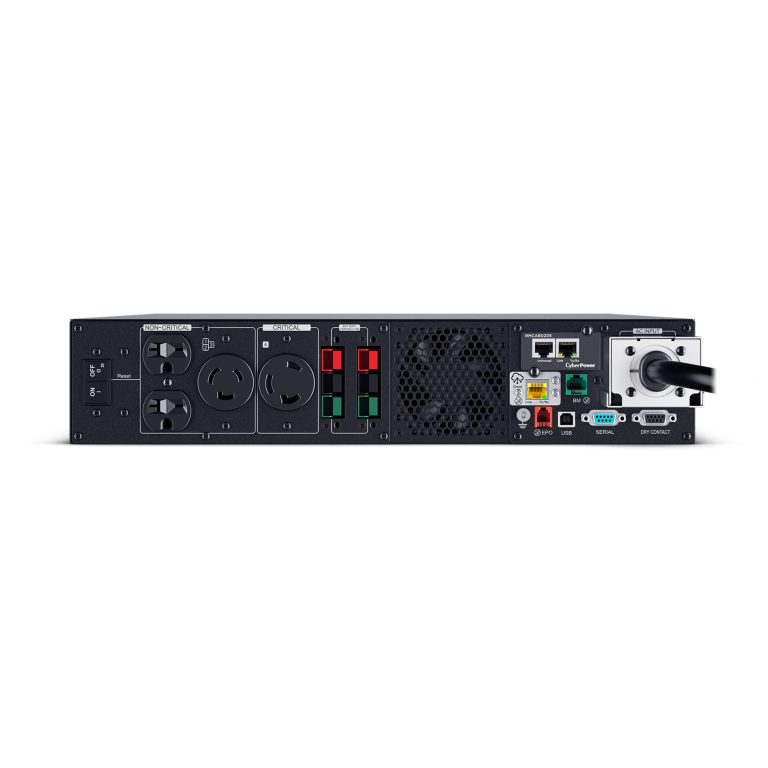

| Outlet Type | 2 - NEMA 6-20R 1 - NEMA L6-20R 1 - NEMA L6-30R |
| Outlets - Critical Load | 1 |
| Outlets - Total | 4 |
| Output Power Factor | 1 |
| Output Voltage | 200 - 240 VAC |
| Overload Protection | On Battery: Internal Circuitry Limiting On Utility: Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| VA | 5000 VA |
| VA by Input Type | 5,000 (5 kVA) →w/ Hardwire Terminal 4,500 (4.5 kVA) - 200VAC →w/ Power cord 4,850 (4.85 kVA) - 208VAC →w/ Power cord 5,000 (5 kVA) - 220VAC →w/ Power cord 5,000 (5 kVA) - 230VAC →w/ Power cord 5,000 (5 kVA) - 240VAC →w/ Power cord |
| Watts | 5000 W |
| Watts by Input Type | 5,000 (5 kW) →w/ Hardwire Terminal 4,500 (4.5 kW) - 200VAC →w/ Power cord 4,850 (4.85 kW) - 208VAC →w/ Power cord 5,000 (5 kW) - 220VAC →w/ Power cord 5,000 (5 kW) - 230VAC →w/ Power cord 5,000 (5 kW) - 240VAC →w/ Power cord |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 2430 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Overcharge Fault |
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| Expansion Slot | Yes - RMCARD205 pre-installed |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Line Mode Battery Mode Fault |
| Management Cable | USB Cable, EPO Cable |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes - RMCARD205 pre-installed Yes - with built-in RJ45 ethernet connection cloud port |
| Serial Port | 1 RS232 |
| Software (Free Download) | PowerPanel® Business |
| Upgradeable firmware | Yes |
| Physical | |
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions - (WxHxD) (cm) | 43.43 x 8.64 x 62.99 (cm) |
| Physical Dimensions - (WxHxD) (in) | 17.1 x 3.4 x 24.8 (in) |
| Physical Dimensions - (WxHxD) (mm) | 434 x 86 x 630 (mm) |
| Physical Weight (kg) | 47.26 |
| Physical Weight (lb) | 104.2 |
| Dimensions - Shipping | |
| Shipping - Weight (kg) | 54.56 |
| Shipping - Weight (lb) | 120.3 |
| Shipping Dimensions - (WxHxD) (cm) | 83.82 x 26.67 x 57.15 (cm) |
| Shipping Dimensions - (WxHxD) (in) | 33.0 x 10.5 x 22.5 (in) |
| Shipping Dimensions - (WxHxD) (mm) | 838.2 x 266.7 x 571.5 (mm) |
| Environmental | |
| AC Mode Thermal Dissipation | 230.7 BTU/hr |
| Audible noise at 1m from surface of unit | 38.5 dBA to 68.5 dBA (0% to 100% load) |
| On Battery Thermal Dissipation | 4478.8 BTU/hr |
| Operating Elevation | 0 - 9843 ft (0 - 3000 m) |
| Operating Relative Humidity | 0 - 95 % (non-condensing) |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Storage Elevation | 0 - 49213 ft (0 - 14999 m) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE UL1778 CSA C22.2 No 107.3 FCC Class A VCCI |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U20A |
| Product Warranty | 3 Year Limited Warranty |
