CyberPower - RBC43-CP - Replacement Battery Cartridge

Part number:
Price:

Product Overview

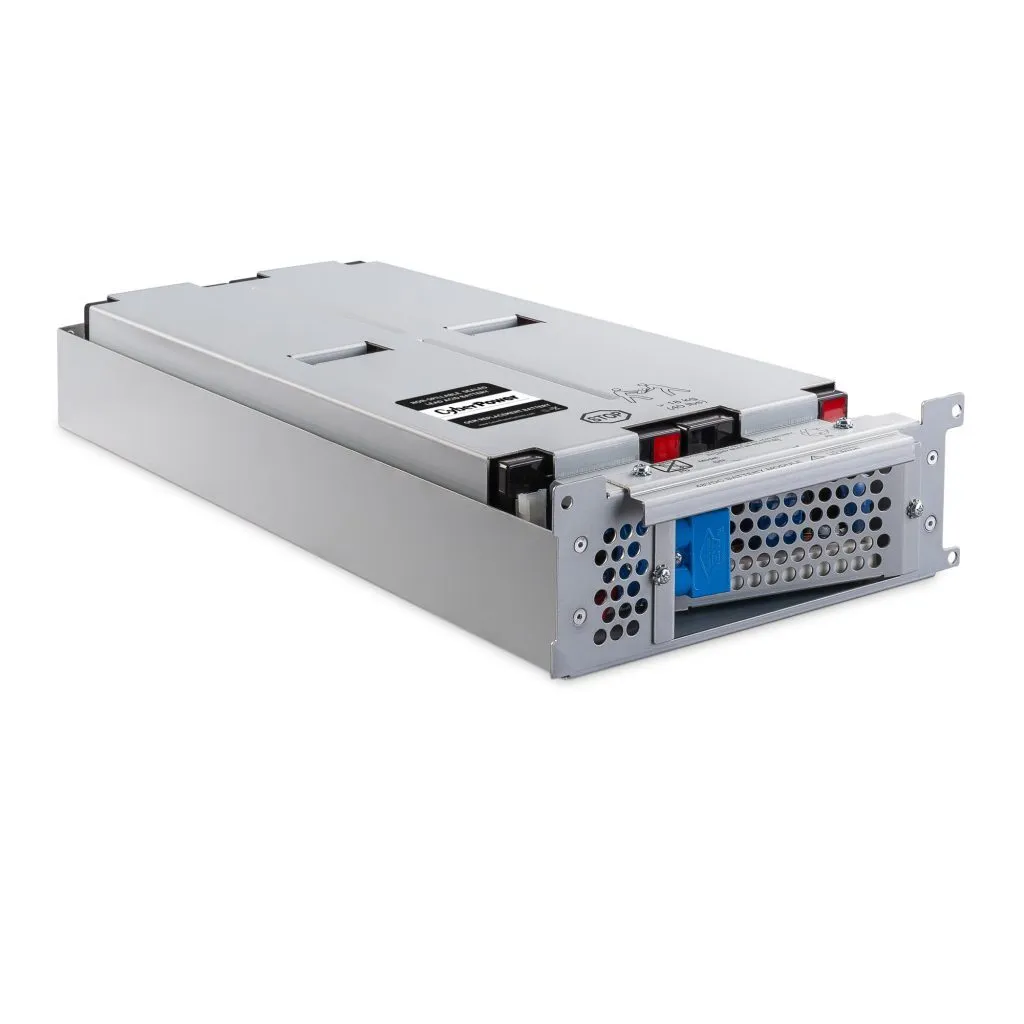

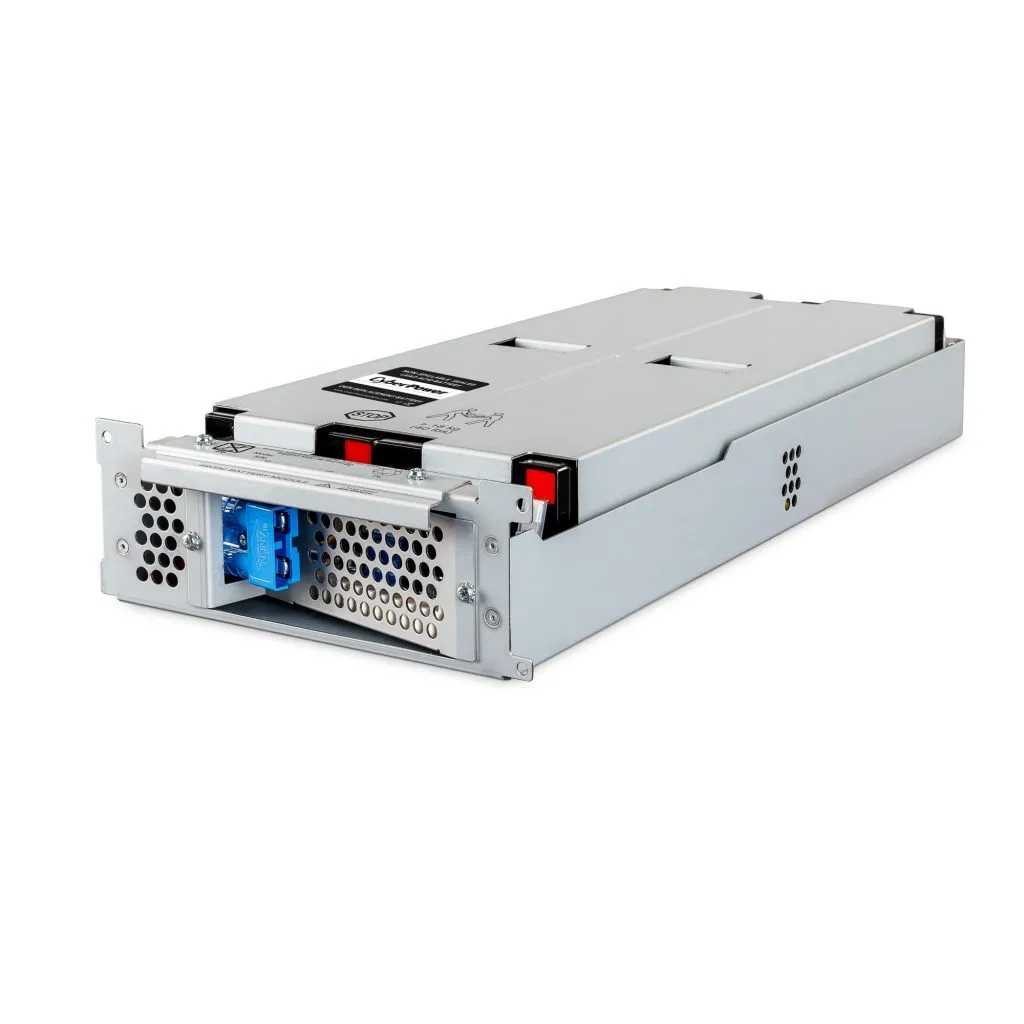

The RBC43-CP is a UPS replacement battery cartridge designed to restore operation to compatible APC UPS systems with weak or depleted internal batteries. It replaces the RBC43 OEM battery and contains one 48V/5.5Ah sealed lead-acid battery cartridge certified to meet or exceed original manufacturer specifications.



Key Configuration

Model: RBC43-CP | Product Type: UPS Replacement Battery Cartridge | Replaces: RBC43 OEM battery | Battery Type: Sealed lead-acid | Battery Quantity: 1 cartridge | Battery Rating: 48V/5.5Ah | Compatible UPS Models: SUA2200RM2U, SUA2200RMi2U, SUA3000RM2U, SUA3000RMi2U, SUA3000RMT2U | Warranty: Twenty-four month warranty



Key Features

 · Restores battery backup capability to compatible UPS systems

 · Replaces the RBC43 OEM battery cartridge

 · Contains one 48V/5.5Ah sealed lead-acid battery cartridge

 · User-installable pre-assembled cartridge allows quick replacement

 · Leak-proof casing helps protect the battery and prolong service life

 · Maintenance-free battery fluid never requires replacement

 · Certified to meet or exceed original manufacturer specifications

 · Reusable packaging supports safe return of expired batteries to a recycling center



Technical Context

The RBC43-CP uses sealed lead-acid battery construction, which provides high surge current capability, strong power-to-weight performance, and cost-effective UPS battery replacement.

This cartridge can be used with APC UPS systems including SUA2200RM2U, SUA2200RMi2U, SUA3000RM2U, SUA3000RMi2U, and SUA3000RMT2U, among others.



Installation Notes

The RBC43-CP is user-installable and ships with the battery, warranty, and recycling information. After installing the new cartridge, the reusable packaging can be used to deliver expired batteries to a suitable recycling center.

Battery
Battery Quantity1
Battery Size48 V / 5.5 Ah
Battery TypeSealed Lead-Acid Battery
User Replaceable BatteryYes
Dimensions
Physical Dimensions - (WxHxD) (cm)53.34 x 8.26 x 21.27 (cm)
Physical Dimensions - (WxHxD) (in)21 x 3.25 x 8.375 (in)
Physical Dimensions - (WxHxD) (mm)533 x 83 x 213 (mm)
Physical Weight (kg)17.24
Physical Weight (lb)38
Dimensions - Shipping
Shipping - Weight (kg)18.25
Shipping - Weight (lb)40.25
Shipping Dimensions - (WxHxD) (cm)58.42 x 19.05 x 33.02 (cm)
Shipping Dimensions - (WxHxD) (in)23.0 x 7.5 x 13.0 (in)
Shipping Dimensions - (WxHxD) (mm)584.2 x 190.5 x 330.2 (mm)
Contents
Package IncludesBattery Kit and Installation Guide
Environmental
Operating Relative Humidity0 - 90 % ()
Operating Temperature32 - 104 °F (0 - 40 °C)
Compatibility
UPS ModelsSUA2200RM2U, SUA2200RMi2U, SUA3000RM2U, SUA3000RMi2U, SUA3000RMT2U
Warranty
Product Warranty2 Year Limited Warranty
