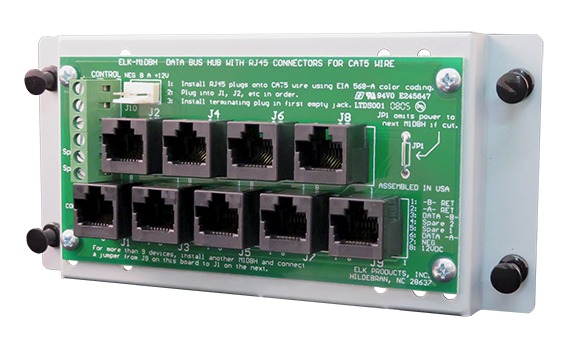

ELK - M1DBH - Data bus Hub (for Proper Termination of Multiple Bus Devices)
Part number:
M1DBH
Price:
- • Designed For Multiple Home Run Cables
- • Internally Connects Data A & B Lines From Previous Device In to Next Device Out
- • Provides up to Nine (9) Data Bus Connections
- • Multiple Hubs May be Connected for Expansion
- • EOL Bus Termination Can Be Done On-Board, RJ45 Terminating Resistor Plug Included
- • Mounting Plate for Structured Wire Boxes
• Included: ELK-M1DBH Data Bus Hub, 4 pieces of Double Sided Tape, RJ45 Terminating Plug, ELK-SWP3 Multipurpose Adapter Plate, 4 Pan Head Thread Cutting Screws, ELK-W018B 4-wire Cable Assembly, Instructions
| Input Connections | Elevator Screw Terminals |
| Output Connections | RJ 45 8-Pin Jacks |
| Mounting Plate Dimensions | 6.5" x 3" x .5 |
| Circuit Board Dimensions | 5" x 2.5 |
Name
Description
Size
Downloads
File
Instructions Guide
0.2mb
For easy connection of expanders and keypads. The M1DBH accepts up to nine RJ45-equipped CAT5 or CAT6 cables and connects them in series so that the data A and B lines can be terminated properly. If more than nine data lines are required, two or more units can be interconnected.
