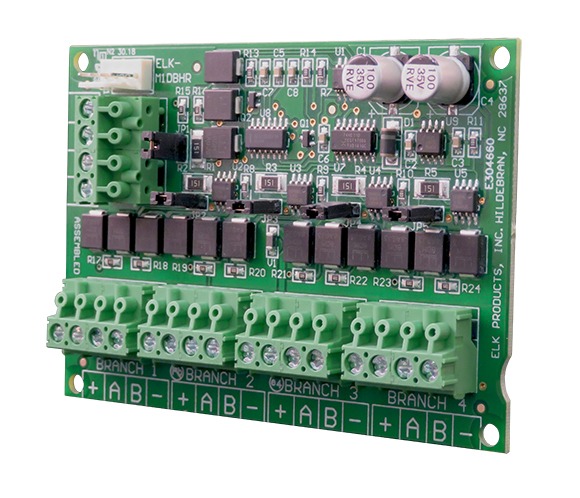

ELK - M1DBHR - Data Bus hub Retrofit (for Existing 4 Cond. Wiring)
Part number:
M1DBHR
Price:
- • Splits The Controls' RS-485 Data Bus Output Into 4 Managed Branches
- • Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
- • EOL Termination Of Each Branch Insures Proper Operation And Supervision
- • Works With Std. 4 Conductor Home Run Wire
- • An Additional Unit May Be Connected In Parallel To The Control For Expanding Total Capacity
• Included: ELK-M1DBHR Data Bus Hub, ELK-SWG Circuit Board Mounting Glides, Instructions, Mounting Rails for ELK-SWB Boxes
| Inputs | Elevator Screw Terminals, 4 Position |
| Output | Elevator Screw Terminals, 4 Position |
| Circuit Board Dimensions | 4.9" x 2.75"Inputs: Elevator Screw Terminals, 4 Position |
Name
Description
Size
Downloads
File
Instructions
0.3mb
This is an 'active' RS-485 data bus hub, designed for use in situations where an M1Gold or M1EZ8 control is being used to retrofit an older panel with multiple 4-conductor keypad/data wires. It splits the main RS-485 data bus into four managed RS-485 branches. Each branch can have two parallel homerun cables, for a total of eight homeruns. The end of each cable is EOL terminated to ensure proper operation and supervision.
