Product Overview

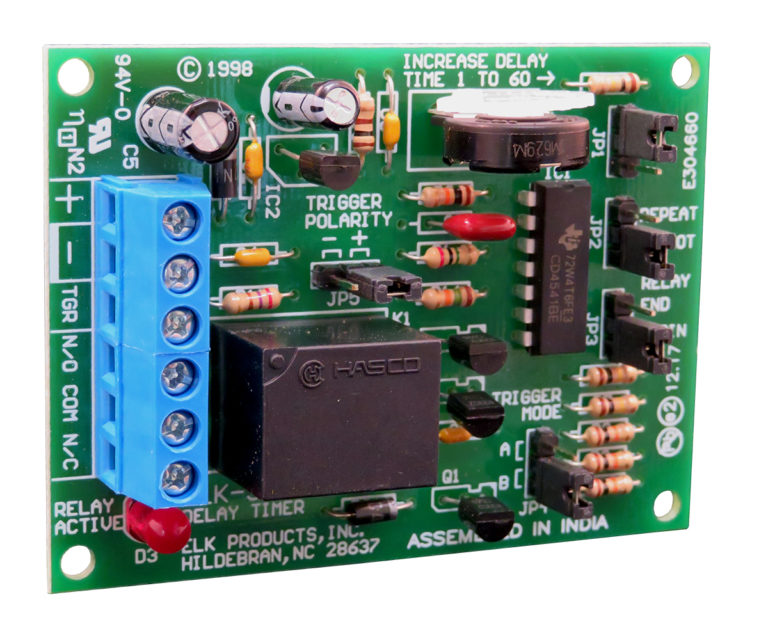

The ELK-960 is a versatile 12-24V DC delay timer relay featuring a thumbwheel for precise adjustments from 1 to 60 seconds (convertible to minutes). It offers selectable positive or negative trigger logic and supports both one-shot and repeat operating modes. With a heavy-duty SPDT Form "C" relay and configurable initial states, it is an ideal solution for general-purpose timing and automation tasks.
Key Configuration
- • Operating voltage: 12 to 24 Volts DC; current draw: 40 mA DC with relay on
- • Time settings: 1 to 60 seconds or 1 to 60 minutes (jumper-selectable); thumbwheel adjustment
- • Relay contacts: Form "C" (SPDT), 7A @ 30VDC, 10A @ 125VAC
- • Trigger voltage: 4.5 - 24 VDC; low current input trigger (<1 mA)
- • Dimensions: 3" × 2.2" × 1" (fits standard snap track)
Key Features
Provides an economical, flexible solution for timing applications, featuring selectable positive or negative trigger logic that handles inputs as low as 4.5V. It easily converts from seconds to minutes via jumper settings and supports both one-shot and repeat modes. With an LED status indicator, configurable relay states, and a lifetime limited warranty, it ensures reliable performance for any 12-24V DC system.
Technical Context
It features a sensitive low-current trigger (<1 mA) and an LED indicator for instant relay status. Its compact 3" × 2.2" footprint fits standard snap tracks and includes double-sided tape for versatile mounting.
| Operating Voltage | 12 to 24 Volts DC |
| Current Draw | 40 mA DC with relay on |
| Time Settings | 1 to 60 Seconds or 1 to 60 Minutes |
| Relay Contacts | Form "C", 7A @ 30VDC, 10 A @ 125VAC |
| Size | 3" x 2.2" x 1" (Fits Standard. Snap Track) |
| Trigger Voltage | 4.5 - 24VDC |
