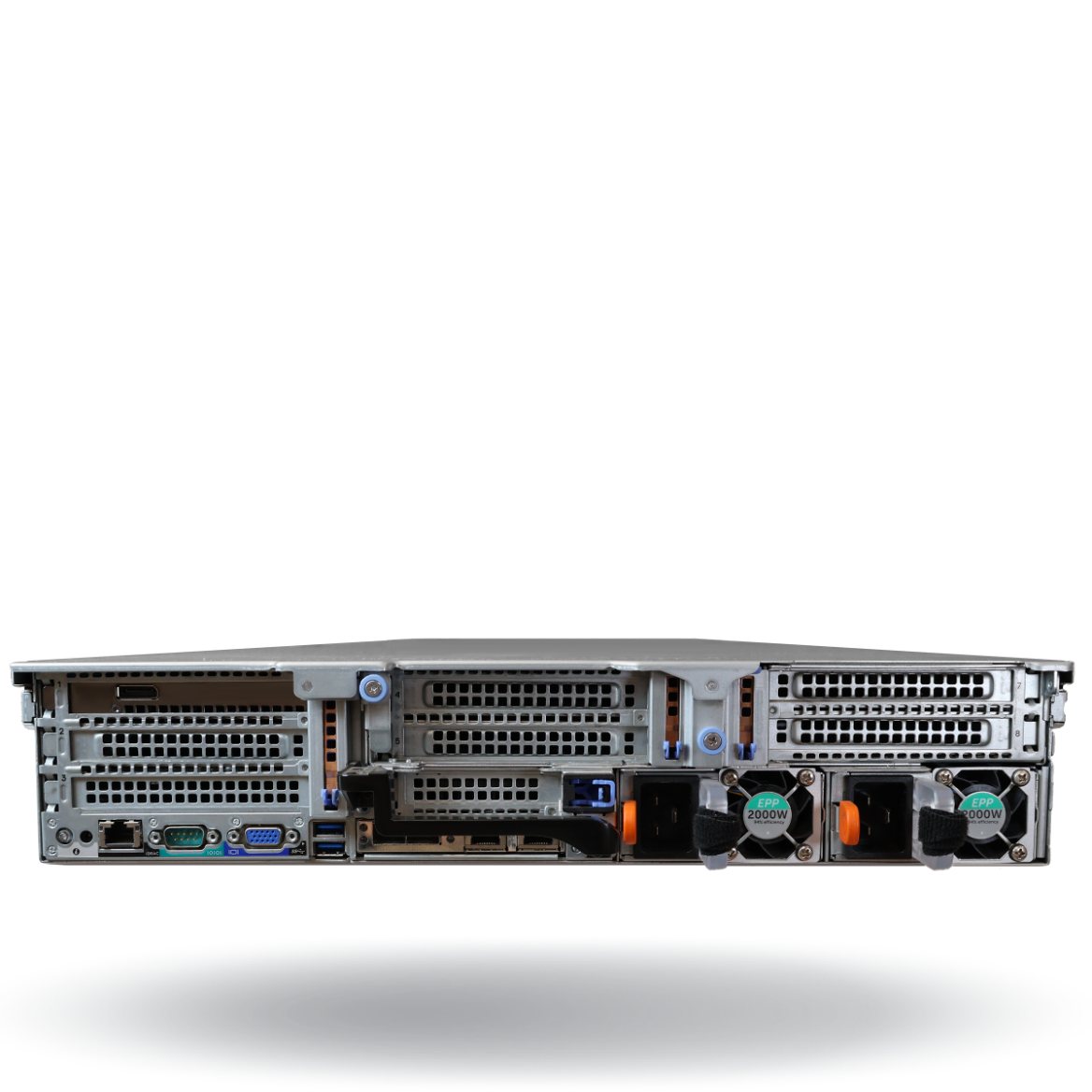

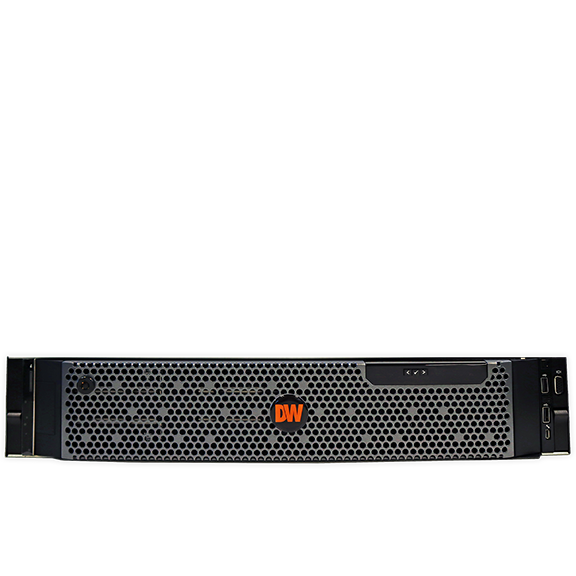

Digital Watchdog - DW-BJAi2R80T - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), 8 DW Spectrum recording licenses and 8 IVA Ai Server licenses pre-installed, 128 analytic streams, Hosting Intelligent Video Analytics Ai software deep learni
Part number:
DW-BJAi2R80T
Price:

Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), 8 DW Spectrum recording licenses and 8 IVA Ai Server licenses pre-installed, 128 analytic streams, Hosting Intelligent Video Analytics Ai software deep learning and color filter, Server-side analytics for non-analytic cameras, Deep learning classifiers, 600 Mbps of recording throughput, Windows 10 Pro on mirrored SSD's, 2000W Dual Power Supply, 2U rack-mount, 60TB usable Raid storage Raid 5, Dual Intel Xeon Gold Processor, 64GB of memory, 2x 10GB SFP+Fiber, 2x 1G Ethernet, Graphic System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, Keyboard, Mouse and Rail kit are included, NDAA, TAA, 5 Year Onsite Next Business Day Keep Your Hard Drive Warranty.


Server-Side Analytics for Non-Analytic Cameras
Bring classified object detection (bicycles, cars, counters, forklifts, motorcycles, persons, trucks, unclassified and vans) to your existing non-analytic cameras.


All-in-One Device
Achieve lower deployment cost with a single device that performs as an NVR and an analytics server.


High Performance
Achieve high total throughput, while simultaneously running analytics.


Remote Notifications on Mobile
Receive an instant notification to any mobile device.


Next business day onsite hardware repair after remote diagnosis
If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.


Keep your drive after replacement to ensure data security
Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.


320Mbps throughput
This Blackjack server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 320Mbps throughput.


Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.


DW Spectrum IPVMS
DW Spectrum IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.


Features:

  • Hosting Intelligent Video Analytics Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Deep learning classifiers
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Up to 128 analytic streams
  • Supports all ONVIF conformant IP cameras
  • 80-160TB raw internal storage with RAID options
  • Hot Swappable HDDs
  • OS RAID 1, data RAID5
  • Redundant power supply
  • Dedicated GPU for client application for easy configuration
  • Dual Intel Xeon processor
  • Dual network ports
  • Windows 10 on separate SSD
  • Dedicated RAID controller
  • Hosting DW Spectrum for setup, configuration, monitoring and recording
    One-time recording license charge, fully transferable between cameras and encoders
  • Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
  • One (1) 4-channel Ai license included (DW-DWAiSLSC004)
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • Keep your failed drive warranty and retain your data
  • UL Listed
  • NDAA/TAA compliant
  • 5 year warranty, next business day on-site hardware service*, keep your hard drive - *after remote diagnosis
Specifications
Hardware
CPU2x XEON Gold 6248R
Local Video Outputs

1x DisplayPort output

1 display output at a time

For initial system configuration

Memory64GB
Server's Operating SystemWindows 10 IoT Enterprise LTSC
Video CardNVIDIA RTX A4000 16GB
Video Compression

H.264

H.265

OS on SSD2 x 240GB NVMe SSD (RAID1)
Max throughput (Mbps)320Mbps
Storage
Raw internal storage options080TB  120TB  160TB
RAID Options

OS RAID1

RAID5

Max HDD Bay8 x SATA HDD
Maximum Storage

80TB (60TB, RAID5) (DW-BJAI2R80T)

120TB (100TB, RAID5) (DW-BJAI2R120T)

160TB

160TB RAID 5 (140TB usable storge) (DW-BJAI2R160T)

VMS features
Max # of analytic streams (secondary)Up to 128
Performance features

A single device for NVR and Analytics server for lower deployment cost

AVI file backup

Camera Color Control

Deep learning classifiers and logical rules engine

Import and export settings

Server-side analytics for non-analytic cameras

Watermak exported video

Playback Functions

Calendar

Event search

Smart motion search

Thumbnail search

Timeline

PTZ controlONVIF
Recording Modes

Continuous

Motion + low res always

Motion + Object

Motion + Object + Low res

Motion detection

Object + Low res

Object only

System Operation

Graphical user interface (GUI)

Remote via DW Spectrum

USB mouse (included)

Network
Ethernet Ports

2x 10GB SFP+ Fiber

2x 1G Ethernet (RJ45)

iDRAC9 Enterprise

Pre-loaded VMS softwareDW Spectrum®
Remote Client

Cross-platform - Windows, Linux Ubuntu and Mac

DW Mobile Plus

DW Spectrum Mobile App

Electrical
Power Consumption

2000W dual power

A UPS is recommended

Redundant power supply

General
Accessories

Keyboard

Mouse

Ai Configuration Tool supported OSCross-platform - Windows and Linux Ubuntu
General Dimensions17.08" x 29.03" x 3.4" (434 x 737.5 x 86.8mm)
Included DW Ai Server Licenses8 (2x DW-DWAiSLSC004)
Operating Temperature and Humidity

41 ~ 104 °F (5~40 °C)

5~85% RH

Preloaded Analytic softwareDW Ai Server
Rail kitIncluded
Recording Licenses (Optional. Sold Separately)Custom-ordered licenses are available by request.
 DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses
 DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses
 DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License
 DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses
 DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses
 DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses
 DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses
 DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses
 DW-SPIOLSC001 - Single DW Spectrum® I/O Module License
 DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License
 Lifetime upgrades are included with no annual renewal fees.
USB interfaceYes
Warrantykeep your hard drive
 Next business day on-site hardware service (after remote diagnosis)
Weight (barebone, HDD not included)88.2 lbs (40 kg)
CertificationCE  FCC  NDAA  ONVIF Conformant  TAA Compliance
Form FactorRack mount
