When paired with a system running DW Spectrum IPVMS, this

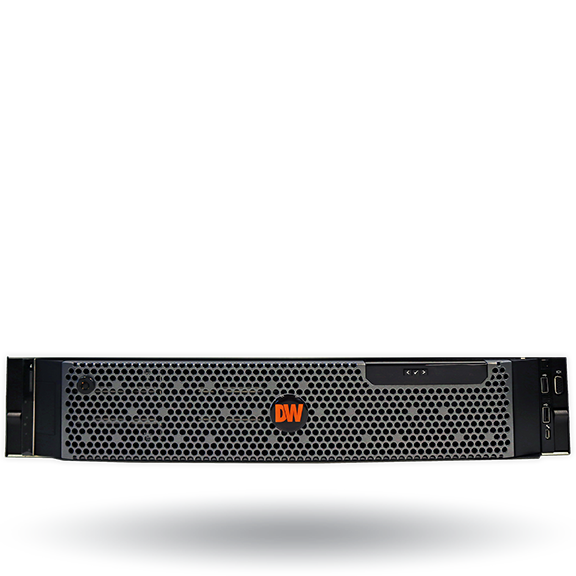

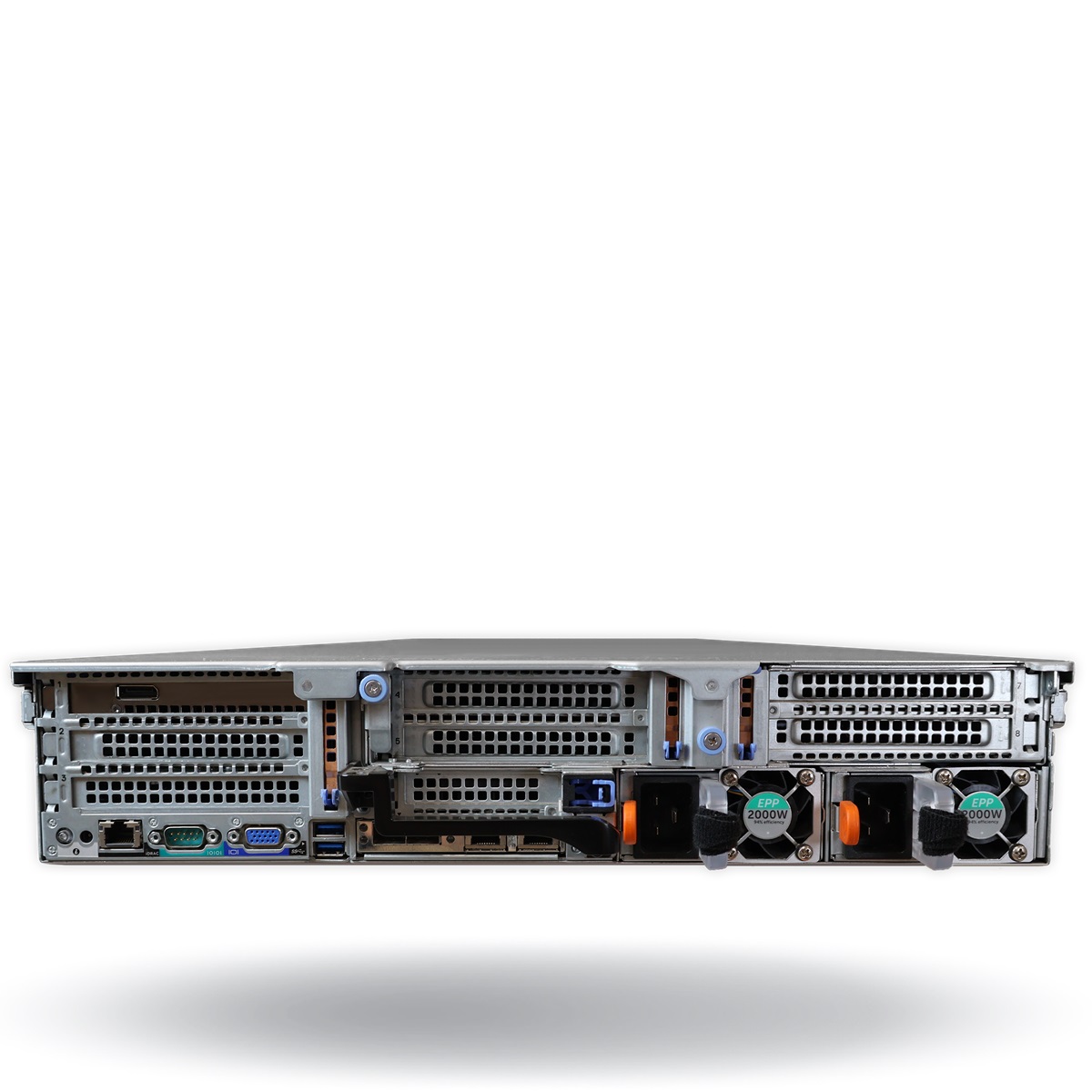

Blackjack Ai Appliance recognizes objects and people in all connected streams by combining advanced algorithms and machine learning to analyze real-time video streams and provide comprehensive video analytics in a user-friendly, scalable solution. The appliance is NDAA/TAA compliant, UL listed, includes Windows 10 IoT OS on a separate RAID1 configured m.2 NVMe and supports up to 32 secondary streams. The 2U rack-mountable hardware features include Ethernet ports, Intel Xeon processor, four (4) Ethernet ports, 32GB RAM, an NVIDIA A4000 video card and a dual power supply. The appliance comes preloaded with four complimentary DW Ai Server licenses and a 5-year, on-site, Next Business Day* warranty to ensure peace of mind.
Features:
- Deep learning analytics on an appliance, connected to any DW Spectrum IPVMS system for any connected stream
- Hosting Intelligent Video Analytics AI software deep learning and color filter
- Providing Server-side analytics to non-analytic cameras on any DW Spectrum IPVMS system
- Analytics by Deep Learning engine
- Up to 32 secondary streams
- Redundant power supply
- Intel XEON Silver processor
- 1x Display Port, for system configuration
- 4 x 1Gb Ethernet ports
- Windows 10 IoT LTSC on separate RAID1 configured m.2 NVMe SSD
- One (1) 4-channel DW Ai Server licenses included (DW-DWAiSLSC004)
- No annual maintenance fees
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
| VIDEO | |
|---|---|
| CPU | Intel Xeon Silver 4215R |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Outputs | For initial system configuration, 1 DisplayPort, 1 display output at a time |
| Memory | 32GB |
| Video Card | NVIDIA RTX A4000 |
| Video Compression | H.264, H.265 |
| Video Operating System | Windows 10 IoT Enterprise LTSC |
| OS on SSD | 2x 512GB M.2 (RAID1) |
| STORAGE | |
| Maximum Storage | No storage |
| PERFORMANCE | |
| Max # of analytic streams (secondary) | Up to 32 |
| Performance features | Analytics appliance for lower deployment cost, Deep learning classifiers and logical rules engine, Server-side analytics for non-analytic cameras |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Ethernet Ports | 4 x 1Gb Ethernet |
| ELECTRICAL | |
| Power Consumption | 1100W dual power, A UPS is recommended, Redundant power supply |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Ai Configuration Tool supported OS | Cross-platform - Windows and Linux Ubuntu |
| General Dimensions | 3.41” x 17.0” x 28.37” (29.78” with bezel); 86.8mm x 482mm x 715.5mm (751.3mm with bezel) |
| Included DW Ai Server Licenses | 4 channel (DW-DWAiSLSC004) |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Preloaded Analytic software | DW Ai Server |
| Rail kit | Included |
| USB interface | Yes |
| Warranty | keep your hard drive, Next business day on-site hardware service (after remote diagnosis) |
| Weight (barebone, HDD not included) | 88.2 lbs (40 kg) |
| Certification |      |
| Form Factor | Rack mount |
