Digital Watchdog - DW-BJAiP80TR - Blackjack Ai P-Rack Artificial Intelligence Network Video Recorder
Product Overview

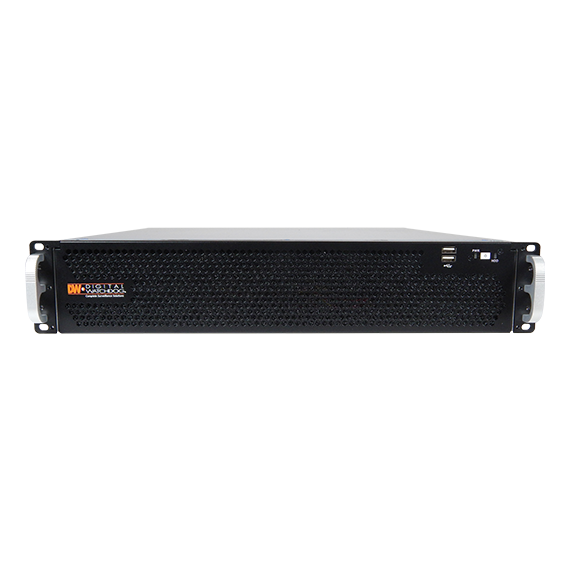

The Digital Watchdog DW-BJAiP80TR is a high-performance Blackjack® P-Rack™ AI 2U rackmount server designed to function as both a robust Network Video Recorder (NVR) and a dedicated AI analytics server. It is powered by an Intel® Core™ i7 processor and 32GB of RAM, featuring an NVIDIA® RTX™ A2000 12GB video card to handle intensive server-side deep learning tasks. The unit comes with Windows 11 IoT LTSC pre-installed on a dedicated 480GB SSD and offers 80TB of raw storage (60TB usable in a RAID 5 configuration).
Key Configuration
- • CPU: Intel Core i7; RAM: 32GB; video card: NVIDIA RTX A2000 12GB; OS: Windows 11 IoT LTSC on 480GB SSD
- • Storage: 6 × SATA HDD bays; 80TB raw (60TB usable with RAID5); RAID5 only
- • Max throughput: 320 Mbps; max analytic streams: up to 64 secondary streams
- • Included licenses: DW-SPECTRUMLSC004 (4 recording licenses) + DW-DWAiSLSC004 (4 Ai Server licenses)
- • Dimensions: 3.5" × 17.29" × 21.93" (88.9 × 439.3 × 557.1 mm); weight: 45.75 lbs (20.75 kg)
Key Features
This server brings server-side AI analytics to non-analytic cameras, enabling advanced deep learning object detection (people, vehicles, and bags) for existing legacy or standard IP cameras. It comes pre-loaded with 4 DW Spectrum® recording licenses and 4 DW Ai Server licenses. The system supports up to 64 analytic streams and features a powerful logical rules engine, allowing for sophisticated automated event triggers based on classified object behavior.
Technical Context

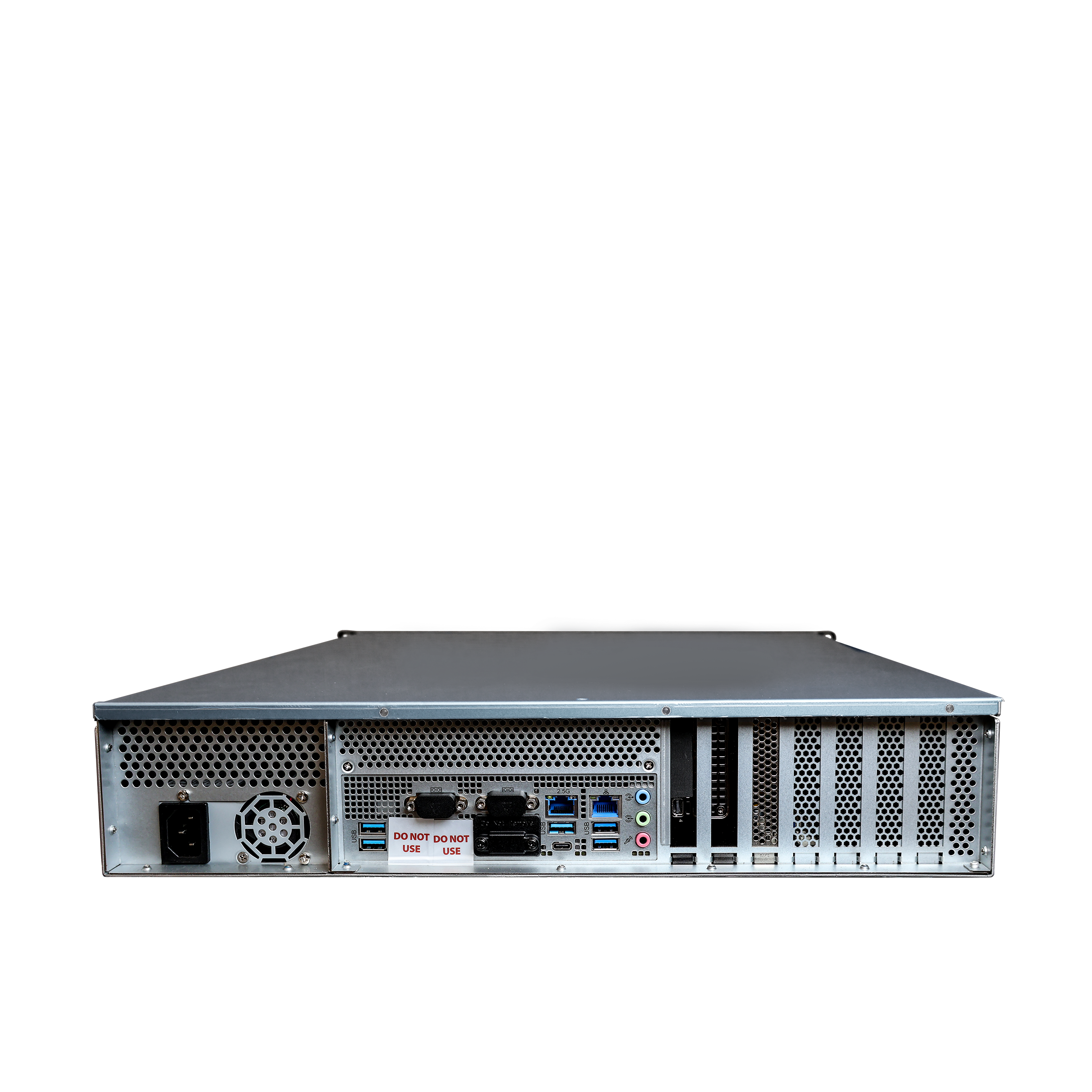

The server manages a maximum recording throughput of 320 Mbps and supports various recording modes, including Motion + Object + Low Res. It features dual 1G RJ45 Ethernet ports to facilitate network segregation for optimized performance. Administrative tools include forensic playback via calendar or thumbnail search, and the system is fully compatible with cross-platform desktop clients (Windows, Linux, Mac) and the DW Spectrum® Mobile app.
Installation Notes
The occupies a 2U rack space and includes a rail kit, USB keyboard, and mouse for immediate deployment. It is designed, assembled, and tested in the U.S.A., ensuring full NDAA and TAA compliance. The hardware is backed by a 5-year limited warranty, which includes Next Business Day on-site hardware service.
| Specifications | |
| Hardware | |
| CPU | Intel Core i7 processor |
| Local Video Outputs | 1x mini Display Port For initial configuration and server management |
| Memory | 32GB |
| Server's Operating System | Windows 11 IoT LTSC |
| Video Card | NVIDIA RTX A2000 12GB |
| Video Compression | H.264 H.265 |
| OS on SSD | 480GB SSD |
| Max throughput (Mbps) | 320Mbps |
| Storage | |
| Raw internal storage options | 080TB 100TB 120TB |
| RAID Options | RAID5 |
| Max HDD Bay | 6 x SATA HDD |
| Maximum Storage | 80TB (60TB, RAID5) (DW-BJAiP80TR) 100TB (80TB, RAID5) (DW-BJAiP100TR) 120TB (100TB, RAID5) (DW-BJAiP120TR) |
| VMS features | |
| Max # of analytic streams (secondary) | Up to 64 |
| Performance features | A single device for NVR and Analytics server for lower deployment cost Deep learning classifiers and logical rules engine Server-side analytics for non-analytic cameras |
| Playback Functions | Calendar Event search Smart motion search Thumbnail search Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous Motion + low res always Motion + Object Motion + Object + Low res Motion detection Object + Low res Object only |
| System Operation | Graphical user interface (GUI) Remote via DW Spectrum USB mouse (included) |
| Network | |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum® |
| Remote Client | Cross-platform - Windows, Linux Ubuntu and Mac DW Mobile Plus DW Spectrum Mobile App |
| Electrical | |
| Power Consumption | 400W A UPS is recommended |
| General | |
| Accessories | Keyboard Mouse |
| Ai Configuration Tool supported OS | Cross-platform - Windows and Linux Ubuntu |
| Included DW Ai Server Licenses | 4 channel (DW-DWAiSLSC004) |
| Included IP licenses | 4 (DW-SPECTRUMLSC004) |
| Operating Temperature and Humidity | 20 ~ 90% RH 41 ~ 104 °F (5~40 °C) |
| Preloaded Analytic software | DW Ai Server |
| Rail kit | Included |
| Recorder Dimensions (H X W X D) | 3.5” x 17.29" x 21.93" (88.9 x 439.3 x 557.1 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses DW-SPIOLSC001 - Single DW Spectrum® I/O Module License DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 45.75 lbs (20.75 kg) |
| Certification | CE FCC NDAA ONVIF Conformant TAA Compliance |
| Form Factor | Rack mount |
