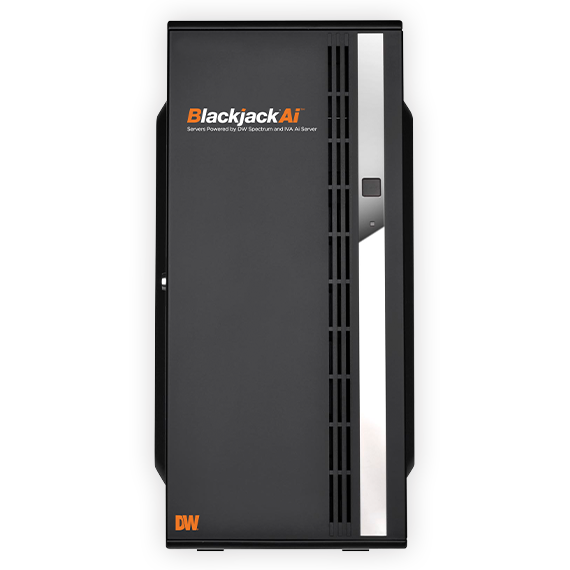

Digital Watchdog - DW-BJAiT96TR - 96TB Blackjack Ai full-size tower servers powered by DW Spectrum IPVMS and IVA
Part number:
DW-BJAiT96TR
Price:

Blackjack Ai Tower Artificial Intelligence Network Video Recorder (AiNVR) is a purpose-built server, with built-in server-side analytics thatunlock advanced Ai capabilities on any connected video stream via our IVAAi Server software. This cost-effective, plug-and-play appliance combineshigh-performance recording with video analytics in an easy-to-deploy,turnkey solution. The NDAA and TAA compliant server features up to600Mbps throughput, 64 analytics streams and comes preloaded with DWSpectrum IPVMS, with four complimentary recording licenses. Add thepower of advanced neural-network-based analytics to your video streamswith a Blackjack Ai NVR, backed by our 5 year limited warranty.



Features :

  • Hosting Intelligent Video Analytics (IVA) Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Deep learning classifiers and logical rules engine
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Up to 64 analytic streams
  • Supports all ONVIF conformant IP cameras
  • 64-96TB raw internal storage with RAID5
  • Hot Swappable HDDs
  • 12th Gen Intel Core i7 processor
  • True HD and Display Port local outputs for system configuration
  • Dual network ports
  • Windows 10 on SSD
  • Hosting DW Spectrum for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
  • One (1) 4-channel IVA Ai license included (DW-IVAAiSERVERLSC004)
  • Show Less
  • No annual maintenance fees
  • Dual stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty
Video
Compression H.264
H.265
CPU Intel® Core™ i7 processor
Display Modes Unlimited
Sequence
Customizable
Local Video Outputs True HD
1 display output at a time
3 DisplayPorts
For initial configuration and server management
Memory 32GB
Operating System Windows®10
Video Card NVIDIA RTX A2000 12GB
OS on SSD 480GB SSD
Storage
Max HDD Bay 6 x SATA HDD
Maximum Storage 96TB (80TB usable storage)
General
Accessories Keyboard
Mouse
Certification NDAA Compliance
ONVIF Conformant
TAA Compliance
Form Factor Full-size Tower
General Dimensions 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
General Warranty 5 Year Limited Warranty
Included IP licenses 4
Max video storage rate (Mbps) 600Mbps
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C)
20 ~ 90% RH
Power Consumption 500W
A UPS is recommended
RAID Options RAID5
Serial ports ONVIF
System Operation Graphical user interface (GUI)
USB mouse (included)
Remote via DW Spectrum IPVMS
USB interface Yes
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum® IPVMS
DW IVA Ai server
Remote Software DW Site Viewer for Apple TV
DW Spectrum Mobile App
Cross-platform - Windows®, Linux Ubuntu® and Mac®
DW Mobile Plus
Performance
Performance features Server-side analytics for non-analytic cameras
Deep learning classifiers and logical rules engine
A single device for NVR and Analytics server for lower deployment cost
Playback Functions Timeline
Calendar
Event search
Thumbnail search
Smart motion search
PTZ control ONVIF
Recording Modes Continuous
Motion detection
Motion + low res always
Object only
Object + Low res
Motion + Object
Motion + Object + Low res
Name
Description
Size
Downloads
File
DW-BJAiTxxTR datasheet
0.6mb
File
DW-BJTR datasheet
1mb
File
DW-BJTR71 AE specifications
0.1mb
File
IVA Ai Server User Manual
1mb
