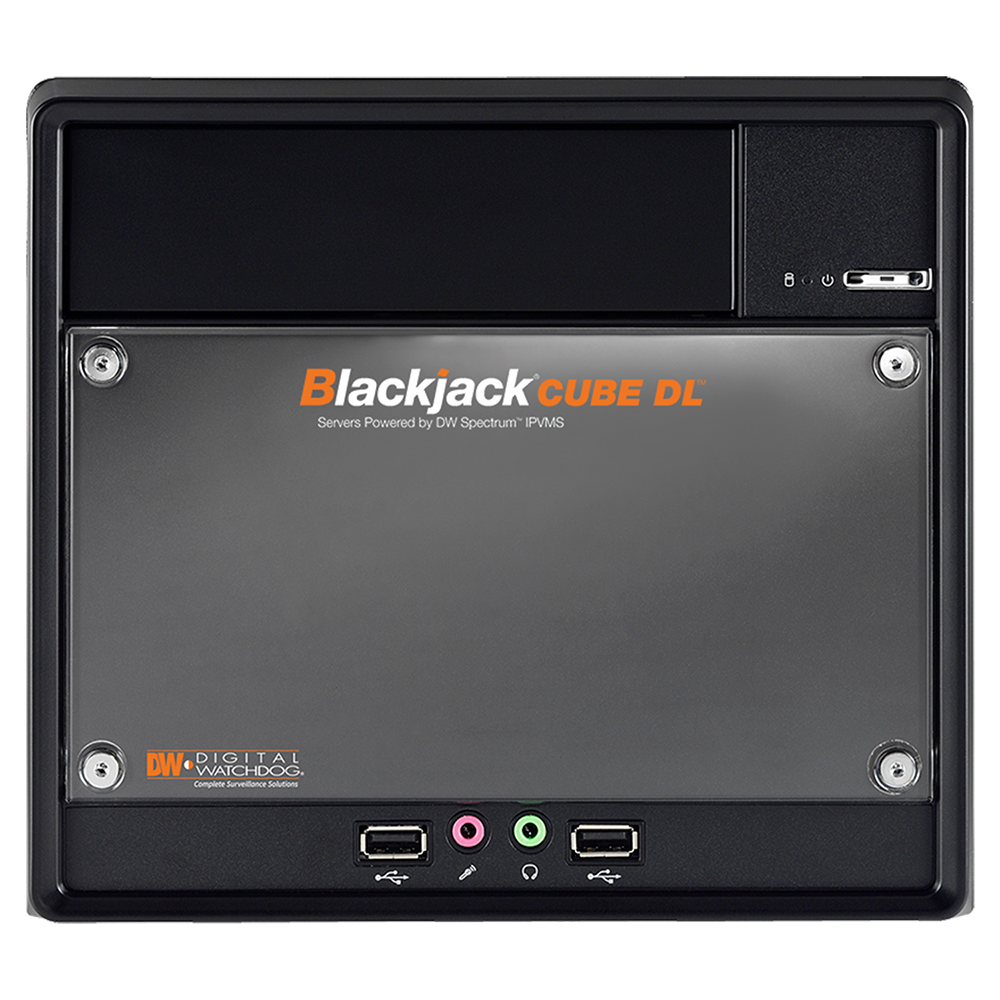

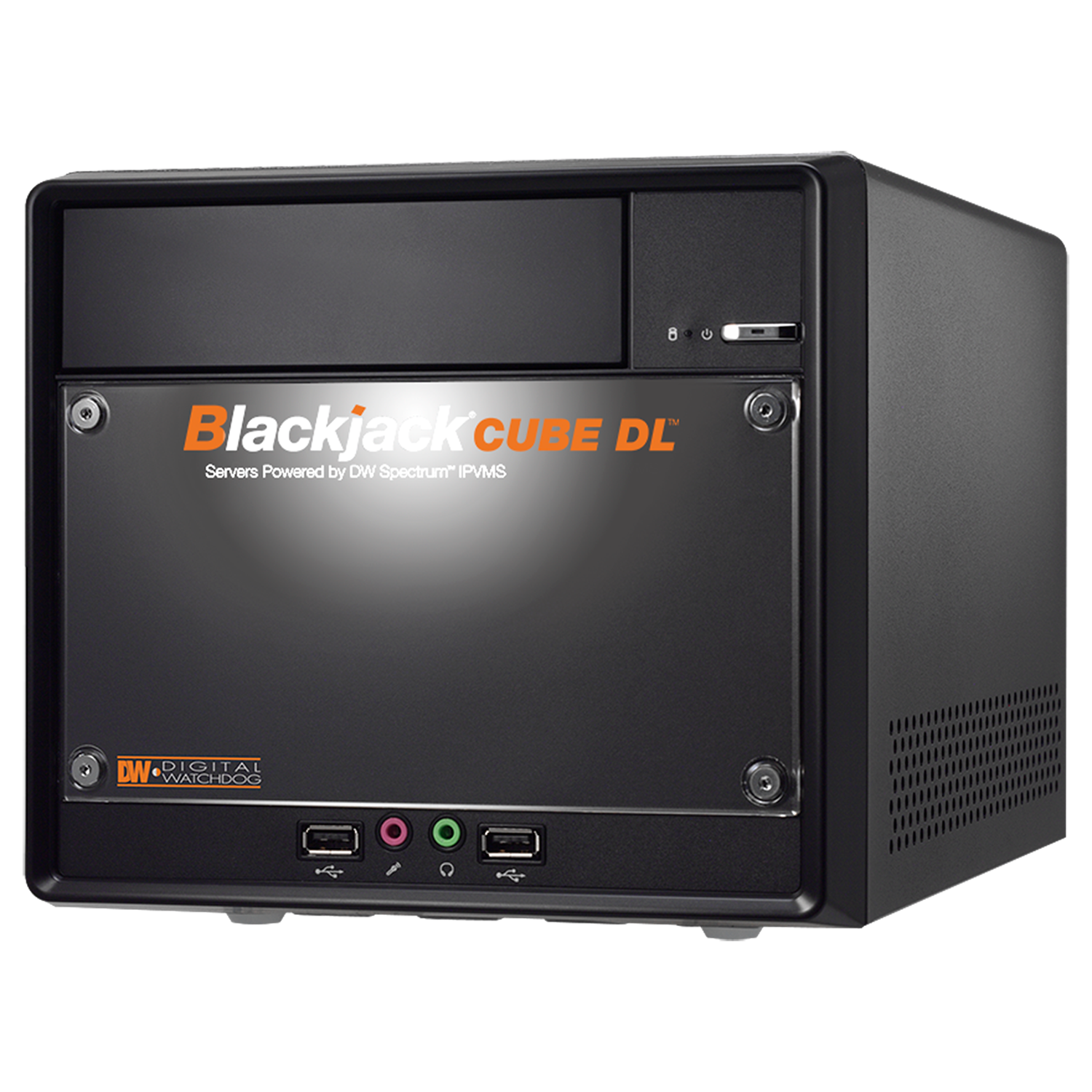

Digital Watchdog - DW-BJCUBE12T-DL - Windows based Blackjack Cube NVR Powered by DW Spectrum IPVMS 12 TB HDD
Part number:
DW-BJCUBE12T-DL
Price:

Windows based Blackjack Cube NVR Powered by DW Spectrum IPVMS.  4 camera licenses pre-installed expandable to 96 cameras. Capable of managing 96 2.1mp 1080P Cameras at 30fps, 480 Mbps throughput,  4 Mini Display Ports(True HD Adapter Included), Windows® 10 OS on an SSD HDD.  Cross platform support for Windows and MAC client software,  i7 Processor, 16GB of Memory, Dual Network Card, OnVIF Profile S compliant,  Graphic System Health Monitor with scheduled auto reboot for hardware performance, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings ,12TB HDD, One-time license charge, fully transferable, with no annual maintenance fees . Can Support up to 3 PZV2M72T 48MP Pano) 5 Year Limited Warranty



Features:

  • Supports all ONVIF conformant IP cameras
  • Storage options 4-20TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to maximum 480Mbps throughput (equivalent to 96 2.1MP/1080p cameras at 30fps)
  • Support for up to three (3) MEGApix® PANO™ 48 megapixel multi-sensor camera (DWC-PZV2M72T)
  • 4 mini display port output (true HD output adapter included)
  • Dual network ports
  • Windows 10® Pro on separate SSD
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel licenses included (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • USB mouse and keyboard included
  • NDAA/TAA compliant
  • 5 Years limited warranty
Maximum IP cameras96 (2.1MP/1080p @30fps, with medium recording quality)
Included IP licenses4
Form factorDesktop / Cube
Operating systemWindows® 10 ProDW-BJCUBExT-DL
 OS on SSDYes
CPUIntel i7® processor
Memory16GB
Ethernet port2x gigabit ethernet ports (RJ45)
SystemMax video storage rate (Mbps)480 Mbps
StorageMaximum hard drives1 x SSD + 2 x SATA HDD
Maximum storage20TB
Video-outOutputs4x mini display port
Video cardOnboard Intel HD Graphics
ResolutionHD 1080p
Pre-loaded VMS softwareDW Spectrum® IPVMS
Remote clientsCross platform - Windows®, Linux Ubuntu® and Mac®
Mobile appsCross Platform - Windows®, LinuxUbuntu®and Mac®
Keyboard & mouseIncluded
Power supply300W**
Operating temperature and humidity41°F~104°F (5°C~40°C)
Operating humidity20~90% RH
Dimension (WxDxH)8.5" x 12.8” x 7.5” (215.9 x 325.1 x 190.5 mm)
Warranty5 year limited
