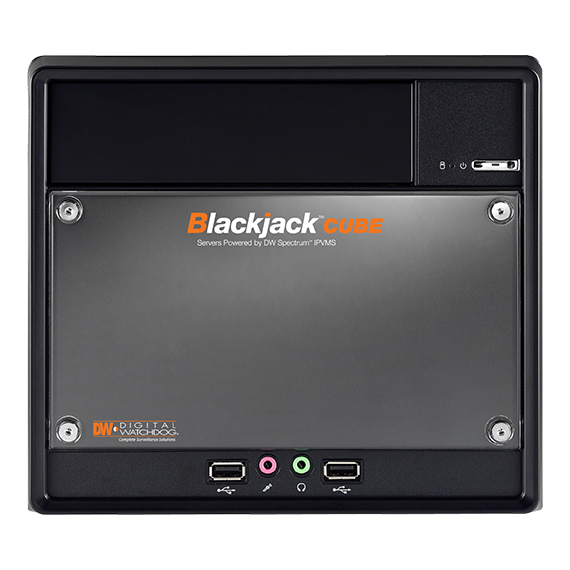

The Blackjack® CUBE-LX can record and manage single-sensor IP cameras of any resolution, with an equivalent capacity of up to 16 2.1MP cameras at 30fps and a maximum of 80Mbps throughput. The hardware includes DVI-D/DVI-I outputs, Linux Ubuntu OS, and Dual Network Card. The NVR is ONVIF conformant and is available with 2-18TB HDD.
Features:
| Maximum IP cameras | 16 (2.1MP/1080p @30fps, with medium recording quality) | |
| Included IP licenses | 4 | |
| Form factor | Desktop / Cube | |
| Operating system | Linux Ubuntu® 64 bit | DW-BJCUBExT-LX |
| CPU | Intel® i3® processor | |
| Memory | 4GB | |
| Option: DW-RME8 - upgrade memory to 8GB* | ||
| Ethernet port | 2x gigabit ethernet ports (RJ45) | |
| System | Max video storage rate (Mbps) | 80 Mbps |
| Storage | Maximum hard drives | 3 x HDD |
| Maximum storage | 18TB | |
| Video-out | Outputs | DVI-D or True HD output |
| Video card | Onboard Intel HD Graphics | |
| Resolution | HD 1080p | |
| Pre-loaded VMS software | DW Spectrum® IPVMS | |
| Remote clients | Cross platform - Windows®, Linux Ubuntu® and Mac® | |
| Mobile apps | iOS® and Andriod® | |
| Keyboard & mouse | Included | |
| Power supply | 300W** | |
| Operating temperature and humidity | 41°F~104°F (5°C~40°C) | |
| Operating humidity | 20~90% RH | |
| Dimension (WxDxH) | 8.5" x 12.8” x 7.5” (215.9 x 325.1 x 190.5 mm) | |
| Warranty | 5 year limited | |
