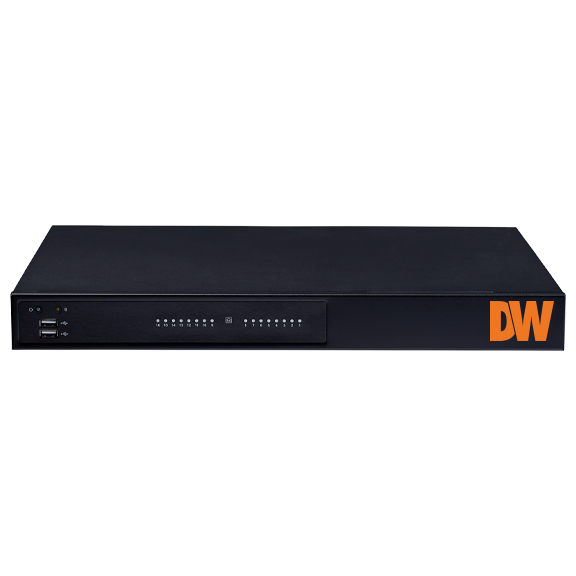

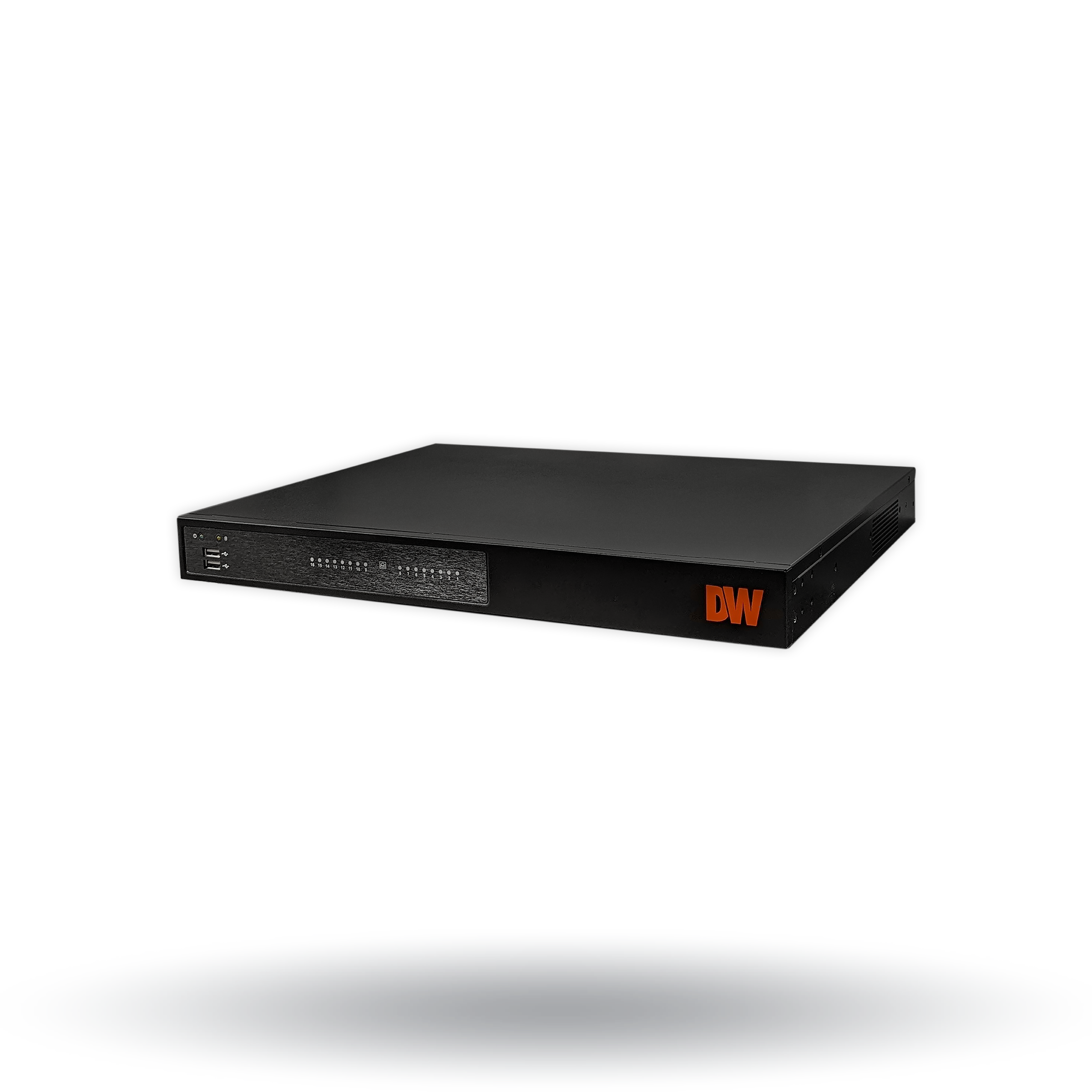

Blackjack CX NVR Powered by DW Spectrum IPVMS. 4 camera licenses pre-installed, 32TB, 80 Mbps of recording throughput, Record and Manage up to 24 IP Cameras, Local PoE/PoE+ Support for 16 Channels, 1x True DS, 1x DVI, Linux Ubuntu OS, Intel Celeron Quad Core Processor, Dual Network Ports, OnVIF compliant, 4 Alarm Inputs, 2 Alarm Outputs, 1 Audio Input, 1 Audio Output, 1 Microphone Input, Graphic System Health Monitor for hardware performance, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, NDAA, TAA . Keyboard and Mouse Included 5 Year Limited Warranty
The Blackjack CX is a sophisticated yet easy to use and costeffective recording solution, eliminating the need for complicated power and wiring installation. The NDAA and TAA-compliant NVR is a plug-and-play embedded NVR powered by DW Spectrum IPVMS with up to 15W simultaneous local PoE power on all ports, giving customers significant versatility on camera choices, with real-time 30fps live and recorded video capabilities. Eight additional ports are supported when you add an external switch. The NVR comes with alarm inputs and outputs, microphone/audio input and output, an Intel quad-core processor, 8GB memory and local display output up to 4K. The Blackjack CX is available with up to 40TB of internal storage and a 5-year limited warranty
Features:
- Supports all ONVIF conformant IP cameras
- Storage options 4-40TB internal storage
- Record and manage up to 24 IP cameras with local PoE support for 16 channels
- Record and manage single- and multi-sensor IP cameras of any resolution up to 80Mbps throughput
- Intel processor
- 1xTrue HD, 1x DVI, 1 display output at a time
- Dual network ports
- 4 alarm inputs, 2 alarm outputs (Under development)
- 1 audio input, 1 audio output, 1 microphone input
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel licenses included (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual stream recording
- USB mouse and keyboard included
- DW-BJCXRM rack mount ears included with the recorder
- Wall mount available. Sold separately
| VIDEO | |
|---|---|
| Compatible Recorders | Blackjack NVRs (DW-BJ) |
| CPU | Intel Celeron processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Output Resolution | 4096 x 2160 |
| Local Video Outputs | DVI-I, For initial configuration and server management, True HD, 1 display output at a time |
| Memory | 8GB |
| PoE Type | 802.3af support 16 ports x 10/100 PoE, per port (240W max PSE) |
| Video Compression | H.264, H.265 |
| OS on SSD | m.2 SSD |
| Input channels | 16 PoE channels, 24 Channels |
| STORAGE | |
| Raw internal storage options |       |
| RAID Options | No RAID |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 16TB (DW-BJCX16T-LX), 24TB (DW-BJCX24T-LX), 4TB (DW-BJCX4T-LX, DW-BJCX4T-LX), 8TB (DW-BJCX8T-LX), 32TB (DW-BJCX32T-LX), 40TB |
| PERFORMANCE | |
| Alarm in/out | 2 alarm outputs |
| Audio in/out | 1 input, 1 output |
| Performance features | Digital Zoom in live and playback, PoE built-in |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Spectrum Mobile App |
| ELECTRICAL | |
| Maximum Power per Port | Up to 15W |
| Power Consumption | 410W |
| Power Requirements | 110~240V A/C |
| Total PoE Power Budget | 240W |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 10~90% RH, 32°F~104°F (0°C~40°C) |
| Recorder Dimensions (H X W X D) | 1.75” (H) x 16.92” (W) x 13.7” (D) (44.5mm (H) x 430mm (W) x 348mm (D)) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| Serial ports | RS232, RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Certification |      |
| Form Factor | Slim Desktop |
