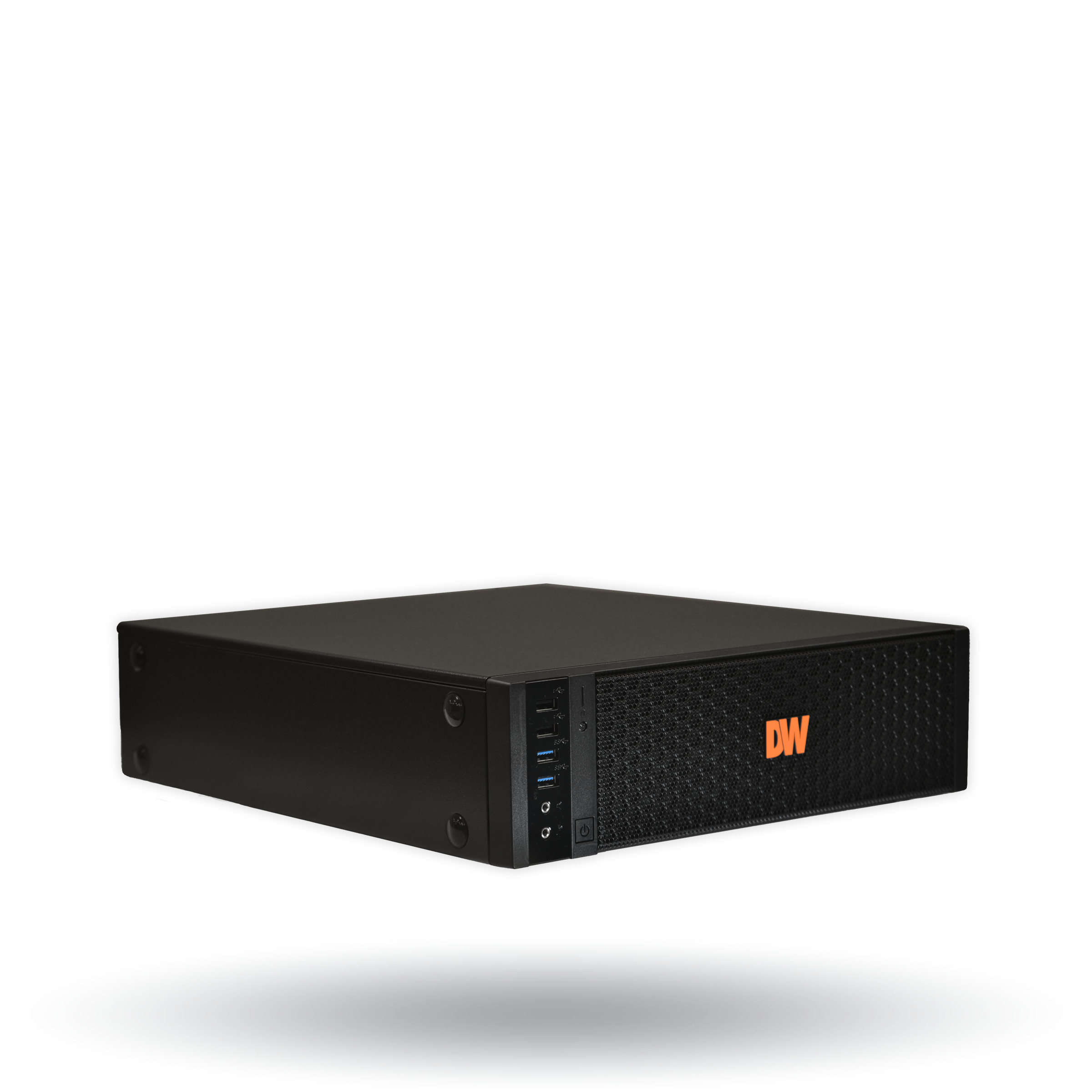

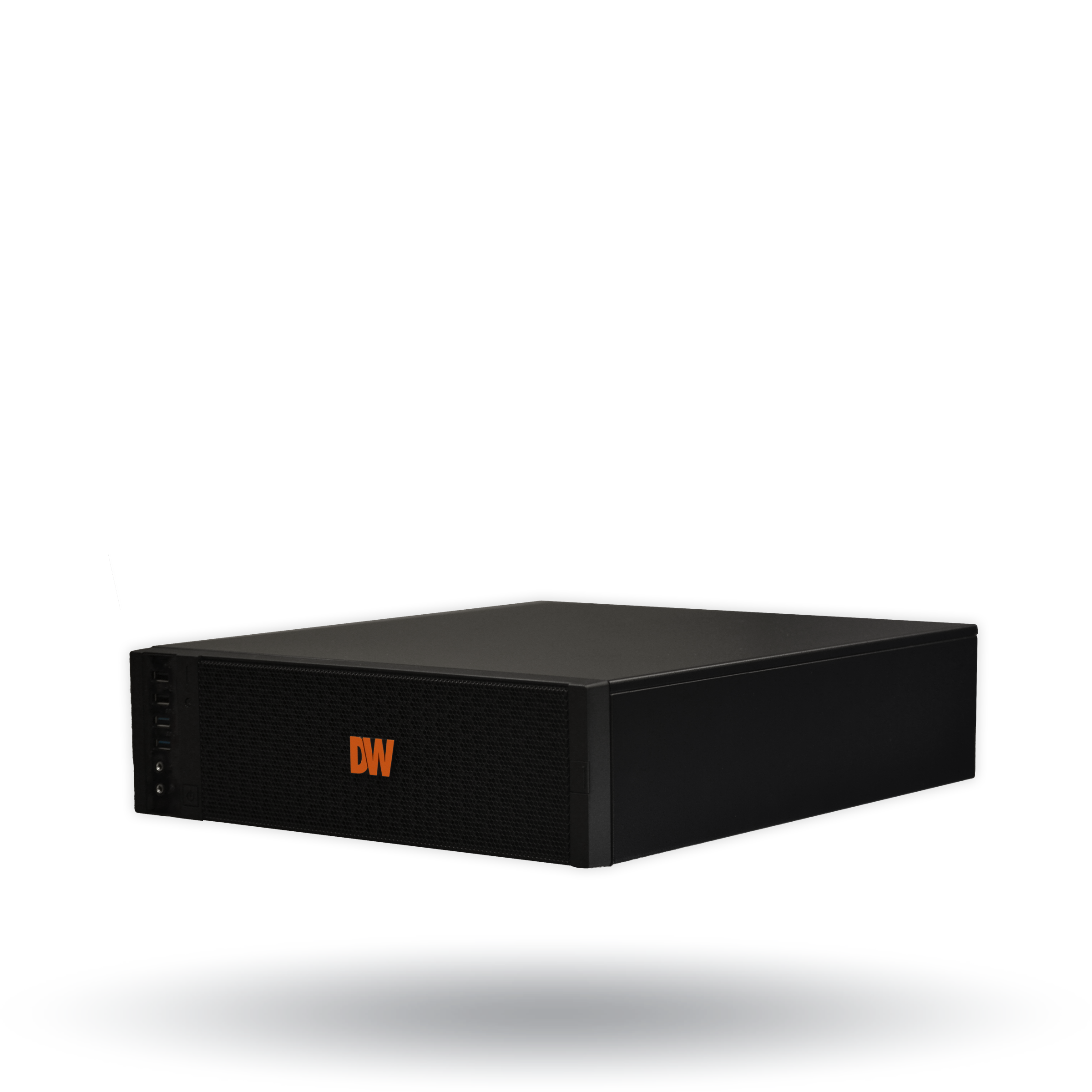

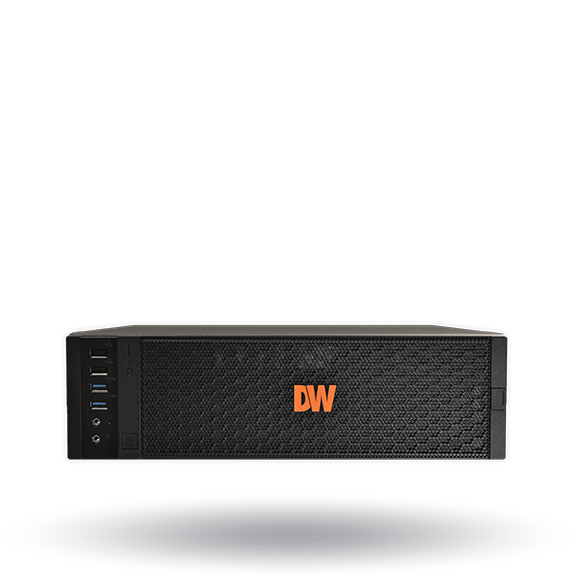

Digital Watchdog - DW-BJDX3108T - Blackjack DX Server, Intel I3 Processor, Window OS with 8TB Storage
Product Overview
The Digital Watchdog DW-BJDX3108T is a high-performance Blackjack DX NVR powered by an Intel i3 processor and 8TB of internal storage. It runs Windows 10 IoT on a dedicated SSD for maximum stability and supports up to 180Mbps throughput for high-resolution IP cameras. Pre-loaded with DW Spectrum IPVMS, the unit includes a 4-channel license and features dual network ports (1GbE and 2.5GbE) to optimize traffic for professional surveillance environments.
Key Configuration
- • Max throughput: 180 Mbps; supports any resolution IP cameras (ONVIF conformant)
- • Storage: 8TB internal (2 × SATA HDD bays, expandable to 12TB-40TB per model)
- • Processor: Intel i3; RAM: 8GB; video: onboard Intel Graphics
- • Network ports: 1 × 1G Ethernet (RJ45) + 1 × 2.5G Ethernet (RJ45)
- • Local video outputs: 1 DisplayPort (up to 7680×4320 @ 60Hz), True HD, 1 display output at a time
Key Features
This is a professional-grade, NDAA/TAA compliant server designed and assembled in the U.S.A., featuring pre-loaded DW Spectrum IPVMS with no annual maintenance fees. It offers highly flexible recording modes, including motion + object and dual-stream recording, alongside advanced forensic tools like smart motion and thumbnail searches. This desktop system simplifies deployment with auto device discovery, includes a USB mouse and keyboard, and is backed by a 5-year limited warranty for long-term operational security.
Technical Context
Supporting H.264/H.265 compression, this server runs Windows or Linux on a dedicated m.2 SSD and features two internal SATA bays for storage. It provides ONVIF PTZ control and cross-platform remote access via the DW Spectrum app and software. The unit consumes 300W, includes a 4-channel license, and offers lifetime upgrades with no annual fees for any added channel or video wall licenses.
Installation Notes
The features a slim desktop form factor measuring 3.88" × 13.1" × 15.8", making it an ideal fit for space-constrained environments. It includes a USB keyboard and mouse, operates reliably in temperatures up to 104°F, and is backed by a 5-year limited warranty.
| Video | |
|---|---|
| CPU | Intel i3 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Output Resolution | 5120x3200 (DP, 120Hz), 7680x4320 (DP, 60Hz), 4096x2160 (True HD) |
| Local Video Outputs | For initial configuration and server management, 1 DisplayPort, True HD, 1 display output at a time |
| Memory | 8GB |
| Video Card | On-board Intel Graphics |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJDX3124T-LX, DW-BJDX3132T-LX, DW-BJDX3140T-LX), Windows 10 IoT Enterprise LTSC (DW-BJDX3124T, DW-BJDX3132T, DW-BJDX3140T) |
| OS on SSD | m.2 SSD |
| Max throughput (Mbps) | 180Mbps |
| Storage | |
| RAID Options | No RAID |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 12TB (DW-BJDX3112T, DW-BJDX3112T-LX), 16TB (DW-BJDX3116T, DW-BJDX3116T-LX), 24TB (DW-BJDX3124T, DW-BJDX3124T-LX), 4TB (DW-BJDX3104T, DW-BJDX3104T-LX), 8TB (DW-BJDX3108T, DW-BJDX3108T-LX), 20TB (DW-BJDX3120T, DW-BJDX3120T-LX), 32TB (DW-BJDX3132T, DW-BJDX3132T-LX), 40TB (DW-BJDX3140T, DW-BJDX3140T-LX) |
| Performance | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| Network | |
| Backup | Network backup via DW Spectrum IPVMS |

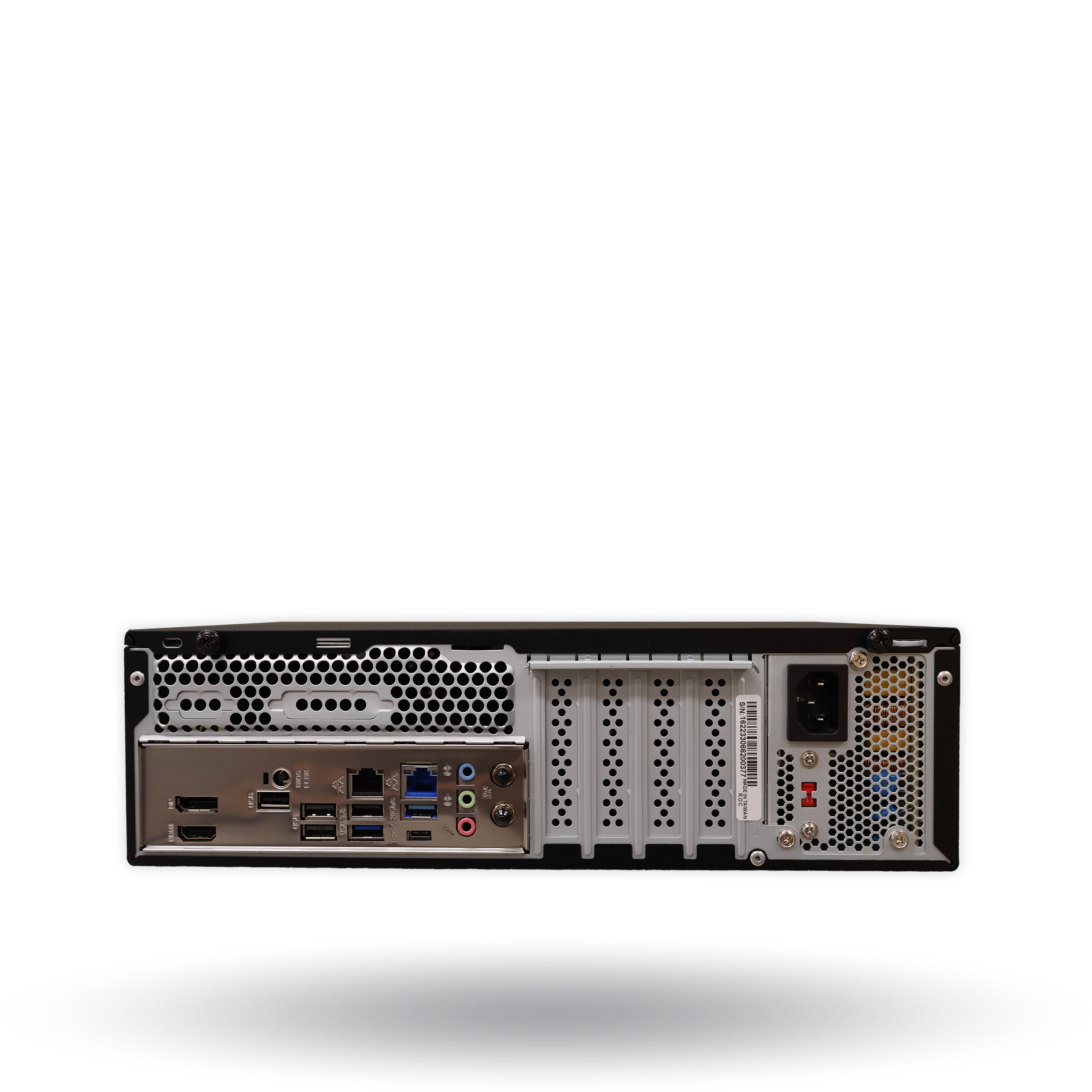

| Ethernet Ports | 1x 1G Ethernet (RJ45), 1x 2.5G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Spectrum Mobile App |
| Electrical | |
| Power Consumption | 300W, A UPS is recommended |
| General | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Recorder Dimensions (H X W X D) | Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Form Factor | Slim Desktop |
