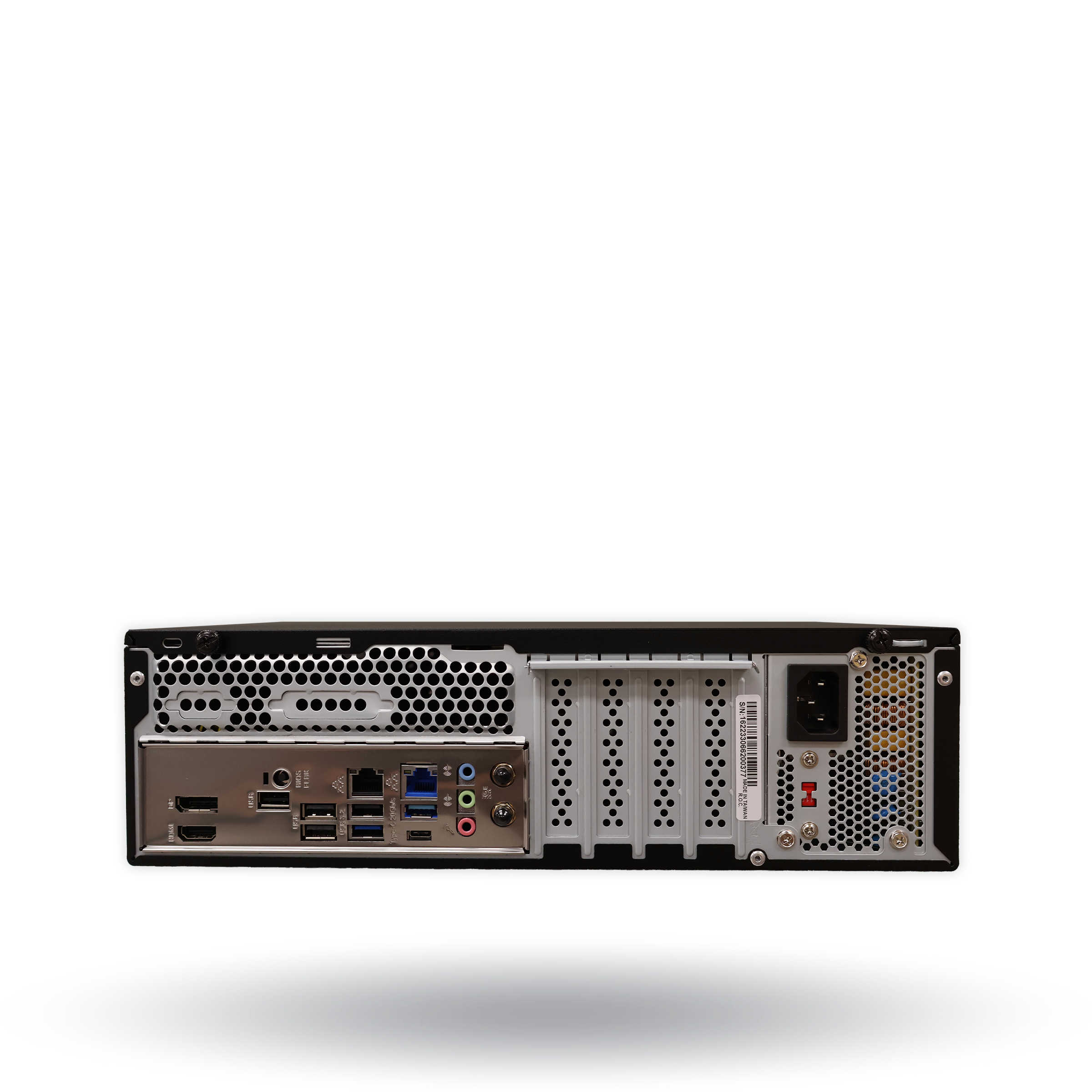

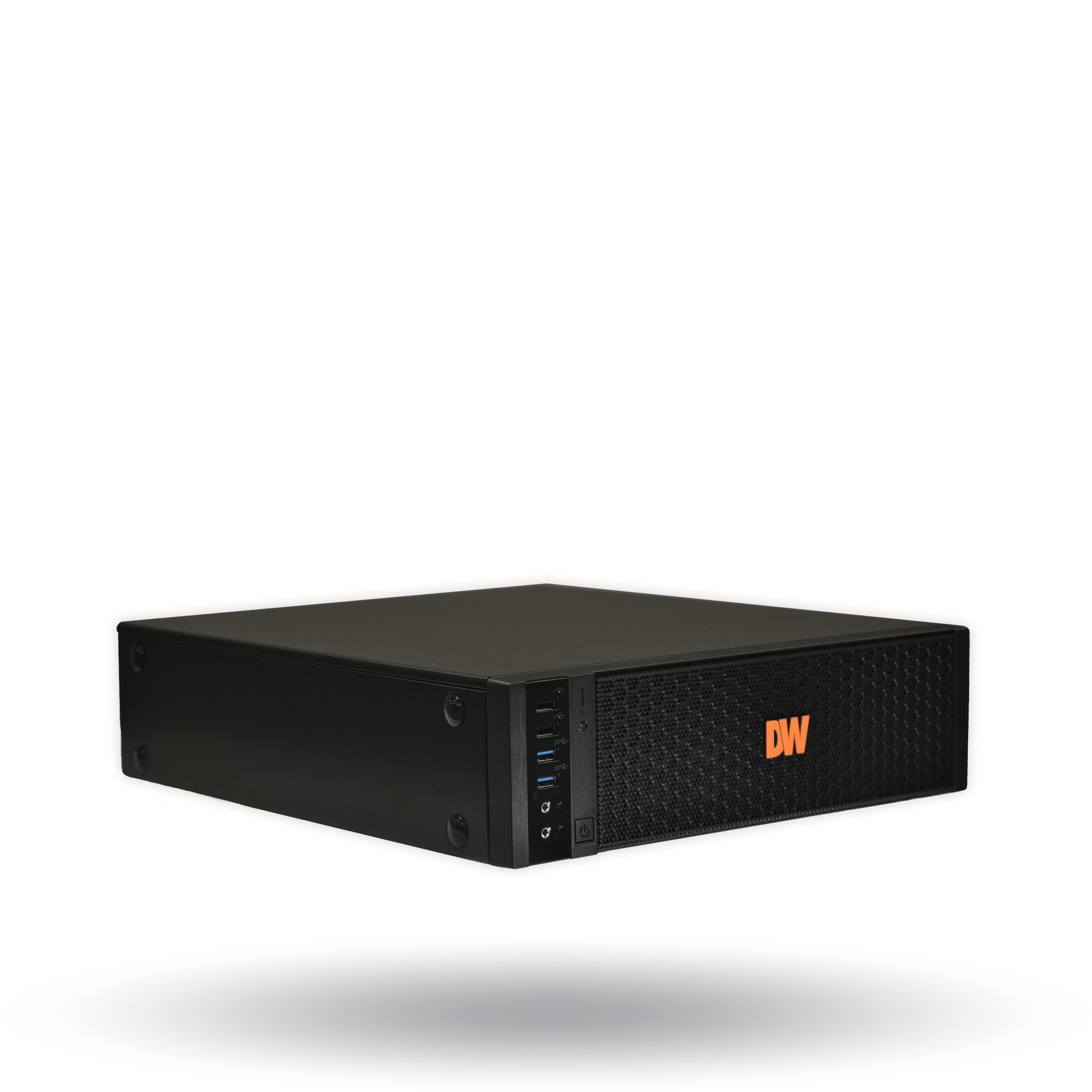

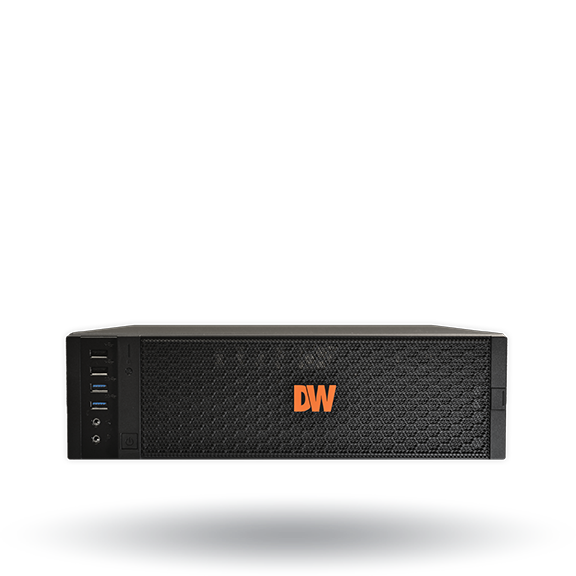

Digital Watchdog - DW-BJDX7116T - Blackjack DX7 NVR Powered by DW Spectrum IPVMS 4 Camera licenses Pre-installed, Windows 10 OS, i7 Processor 16TB
Part number:
DW-BJDX7116T
Price:
- • Supports all ONVIF conformant IP cameras
- • Storage options 4-40TB internal storage
- • Record and manage single- and multi-sensor IP cameras of any resolution up to 480Mbps throughput
- • Intel i7 processor
- • True HD, DP, 1 display output at a time
- • 1x 1G Ethernet, 1x 2.5G Ethernet
- • Windows 10 on separate SSD
- • Hosting DW Spectrum for setup, configuration, monitoring and recording
- • One-time recording license charge, fully transferable between cameras and encoders
- • One (1) 4-channel license included (DW-SPECTRUMLSC004)
- • No annual maintenance fees
- • Simple enterprise scalability and auto device discovery
- • Dual stream recording
- • USB mouse and keyboard included
- • Designed, assembled and tested in the U.S.A.
- • NDAA/TAA compliant
- • 5 Years limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Output Resolution | 5120x3200 (DP, 120Hz), 7680x4320 (DP, 60Hz), 4096x2160 (True HD) |
| Local Video Outputs | For initial configuration and server management, 1 DisplayPort, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | On-board Intel Graphics |
| Video Compression | H.264, H.265 |
| Video Operating System | Windows 10 IoT Enterprise LTSC |
| OS on SSD | m.2 SSD |
| Max throughput (Mbps) | 480Mbps |
| STORAGE | |
| Raw internal storage options |         |
| RAID Options | No RAID |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 12TB (DW-BJDX7112T), 16TB (DW-BJDX7116T), 24TB (DW-BJDX7124T), 4TB (DW-BJDX7104T), 8TB (DW-BJDX7108T), 20TB (DW-BJDX7120T), 32TB (DW-BJDX7132T), 40TB (DW-BJDX7140T) |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45), 1x 2.5G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 300W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Recorder Dimensions (H X W X D) | Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 15.65 lbs (7.09 kg) |
| Certification |      |
| Form Factor | Slim Desktop |
