Blackjack MINI NVR Powered by DW Spectrum IPVMS. Licenses needed, 60 Mbps throughput (equivalent to 12 2.1mp 1080P Cameras at 30fps), Slim Desktop form factor, Linux Ubuntu OS with cross platform support for Windows and MAC client software, Single Gigabit Network Port, OnVIF Profile S compliant, Graphic System Health Monitor for hardware performance, Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings ,2TB HDD, One-time license charge, fully transferable, with no annual maintenance fees . Keyboard and Mouse Included 5 Year Limited Warranty
Make big things happen — record locally, monitor centrally and manage remotely.™ The Blackjack® MINI™ makes big things happen! The server allows you to record locally, combine into a centralized monitoring system via DW Spectrum® IPVMS and managed remotely, from anywhere, any time. The server can record and manage single-sensor IP cameras of any resolution, with maximum of 60 Mbps throughput (equivalent to 12 2.1MP/1080p cameras at 30fps). Manage remotely with DW Spectrum® Client or the DW Spectrum Mobile® app. The Blackjack® MINI™ is an ideal solution for any small scale application or for remote locations with a small number of cameras but no need for local monitoring. The server has 5 years limited warranty, is ONVIF conformant and is available with 2-20TB HDD.
Maximum IP cameras
|
12 (2.1MP/1080p @30fps, with medium recording quality), or 60Mbps total throughput.
|
|
Form factor
|
Slim desktop
|
|
Operating system
|
Embedded Linux®
|
DW-BJMINIxT, DW-BJMINIRxT
|
Ethernet port
|

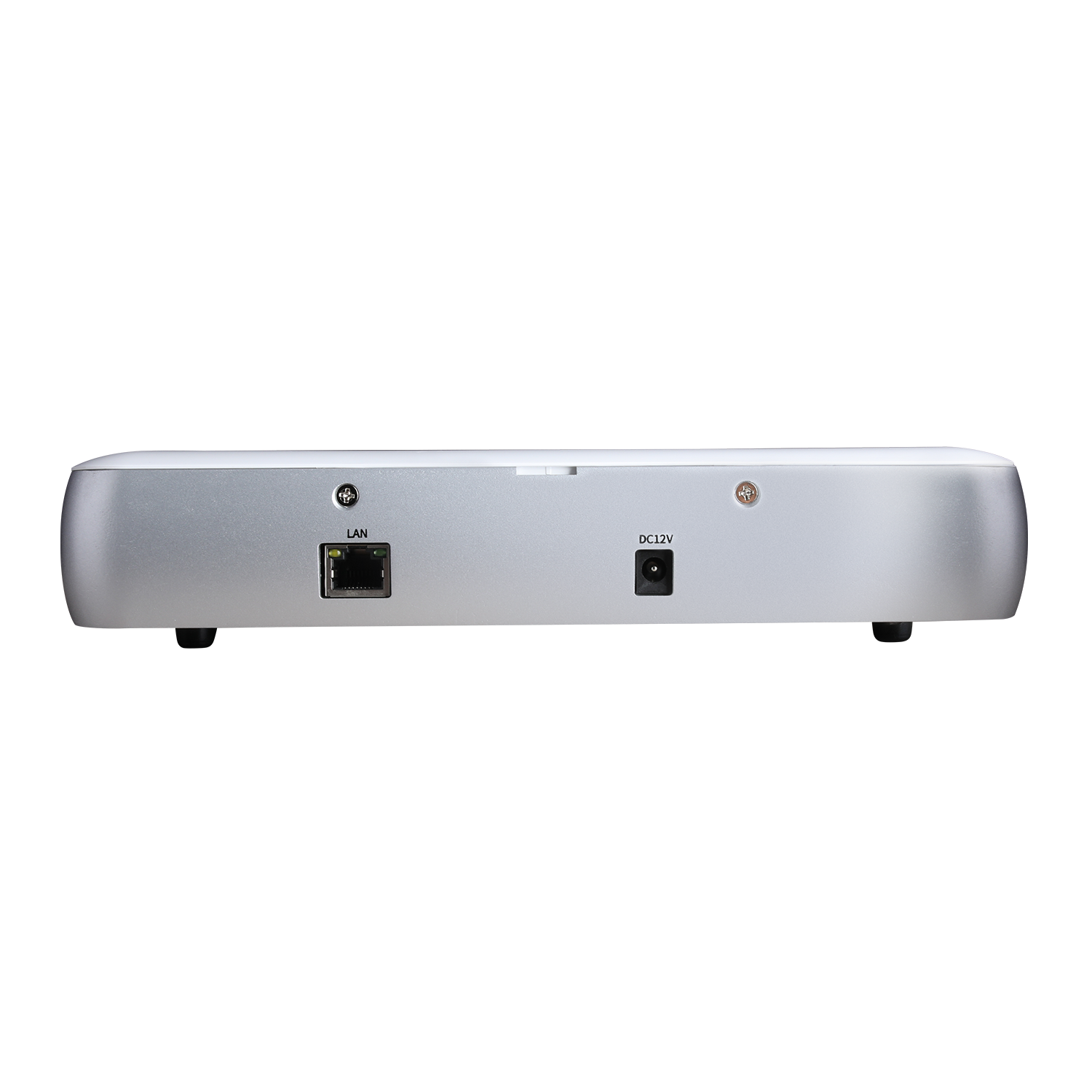

1x gigabit ethernet port (RJ45), can configure up to 2 IP subnets
|
|
System
|
Max video storage rate (Mbps)
|
60 Mbps
|
Storage
|
Maximum hard drives
|
2 x SATA HDD
|
Maximum storage
|
DW-BJMINIxT: 20TB DW-BJMINIxTR: 10TB, RAID 1 |
|
Local video output | NA | |
Pre-loaded VMS software
|
DW Spectrum® IPVMS server
|
|
Remote clients
|
Cross-platform - Windows®, Linux Ubuntu® and Mac®
|
|
Mobile apps
|
iOS® and Andriod®
|
|
Power supply
|
36W
|
|
Operating temperature and humidity
|
41°F~104°F (5°C~40°C)
|
|
Operating humidity
|
20~90% RH
|
|
Dimension (WxDxH)
|
9.84" x 10.74" x 1.96" (250 x 273 x 50mm)
|
|
Warranty
|
5 year limited
|
