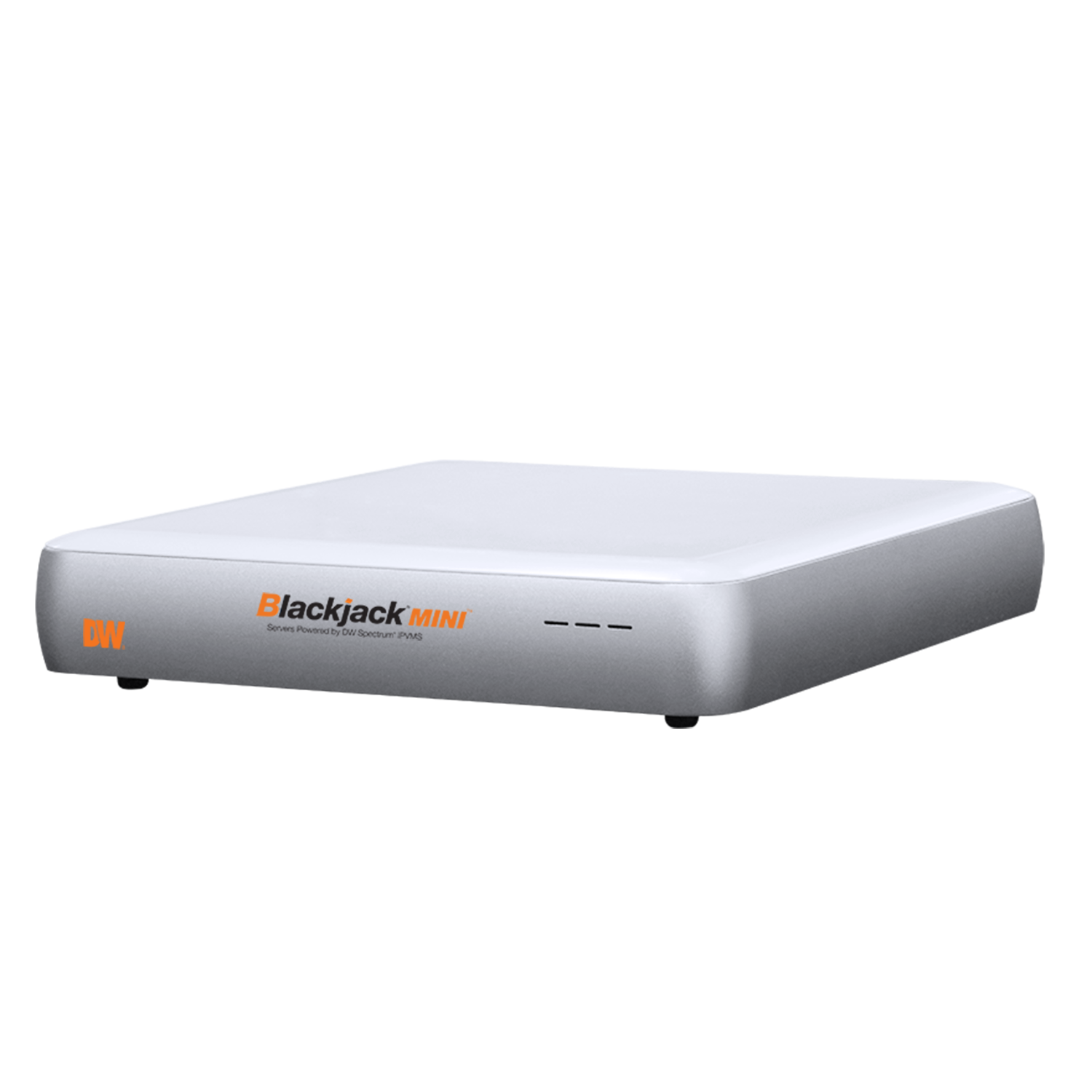

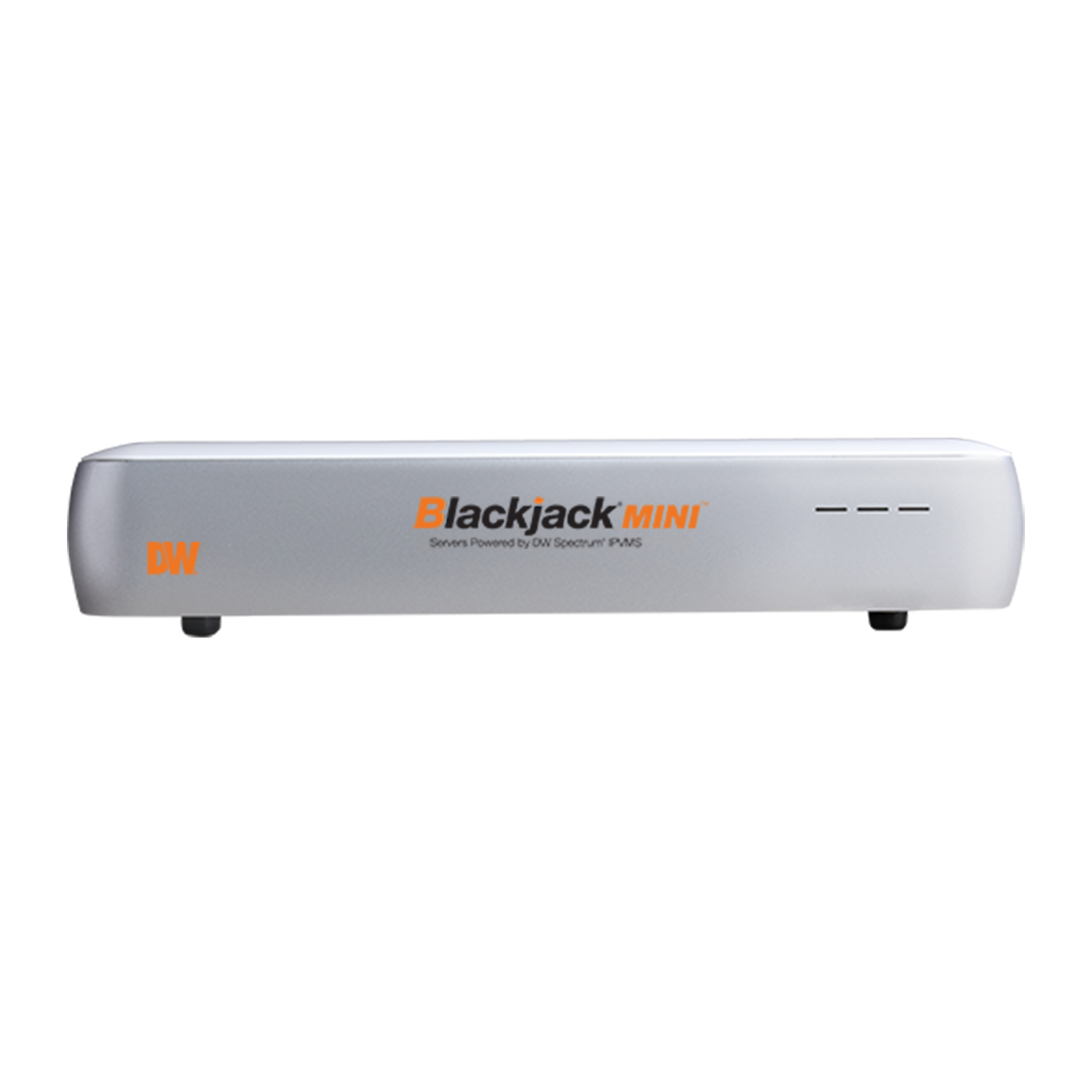

Digital Watchdog - DW-BJMINI4T - Blackjack MINI

Blackjack MINI  NVR Powered by DW Spectrum IPVMS.  Licenses needed, 60 Mbps of recording throughput , Slim Desktop form factor, Linux Ubuntu OS  with cross platform support for Windows and MAC client software, Single Gigabit Network Port, OnVIF Profile S compliant,  Graphic System Health Monitor for hardware performance, Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings ,4TB HDD, One-time license charge, fully transferable, with no annual maintenance fees . Keyboard and Mouse Included 5 Year Limited Warranty

Part number:
DW-BJMINI4T
Price:

Make big things happen — record locally, monitor centrally and manage remotely.™ The Blackjack® MINI™ makes big things happen! The server allows you to record locally, combine into a centralized monitoring system via DW Spectrum® IPVMS and managed remotely, from anywhere, any time. The server can record and manage single-sensor IP cameras of any resolution, with maximum of 60 Mbps throughput (equivalent to 12 2.1MP/1080p cameras at 30fps). Manage remotely with DW Spectrum® Client or the DW Spectrum Mobile® app. The Blackjack® MINI™ is an ideal solution for any small scale application or for remote locations with a small number of cameras but no need for local monitoring. The server has 5 years limited warranty, is ONVIF conformant and is available with 2-20TB HDD.

  • Supports ONVIF conformant IP cameras
  • Storage options 2-20TB internal storage
  • Data redundancy RAID1 (DW-BJMINIxTR models only)
  • Record and manage single- and multi-sensor IP cameras, up to maximum 60 Mbps throughput (equivalent to 12, 2.1MP/1080p cameras at 30fps)
  • Single gigabit network port
  • Embedded Linux® OS
  • Hosting DW Spectrum® IPVMS server for recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • NDAA/TAA compliant
  • 5 Years limited warranty
Maximum IP cameras
12 (2.1MP/1080p @30fps, with medium recording quality), or 60Mbps total throughput.
Form factor
Slim desktop
Operating system
Embedded Linux®
DW-BJMINIxT, DW-BJMINIRxT

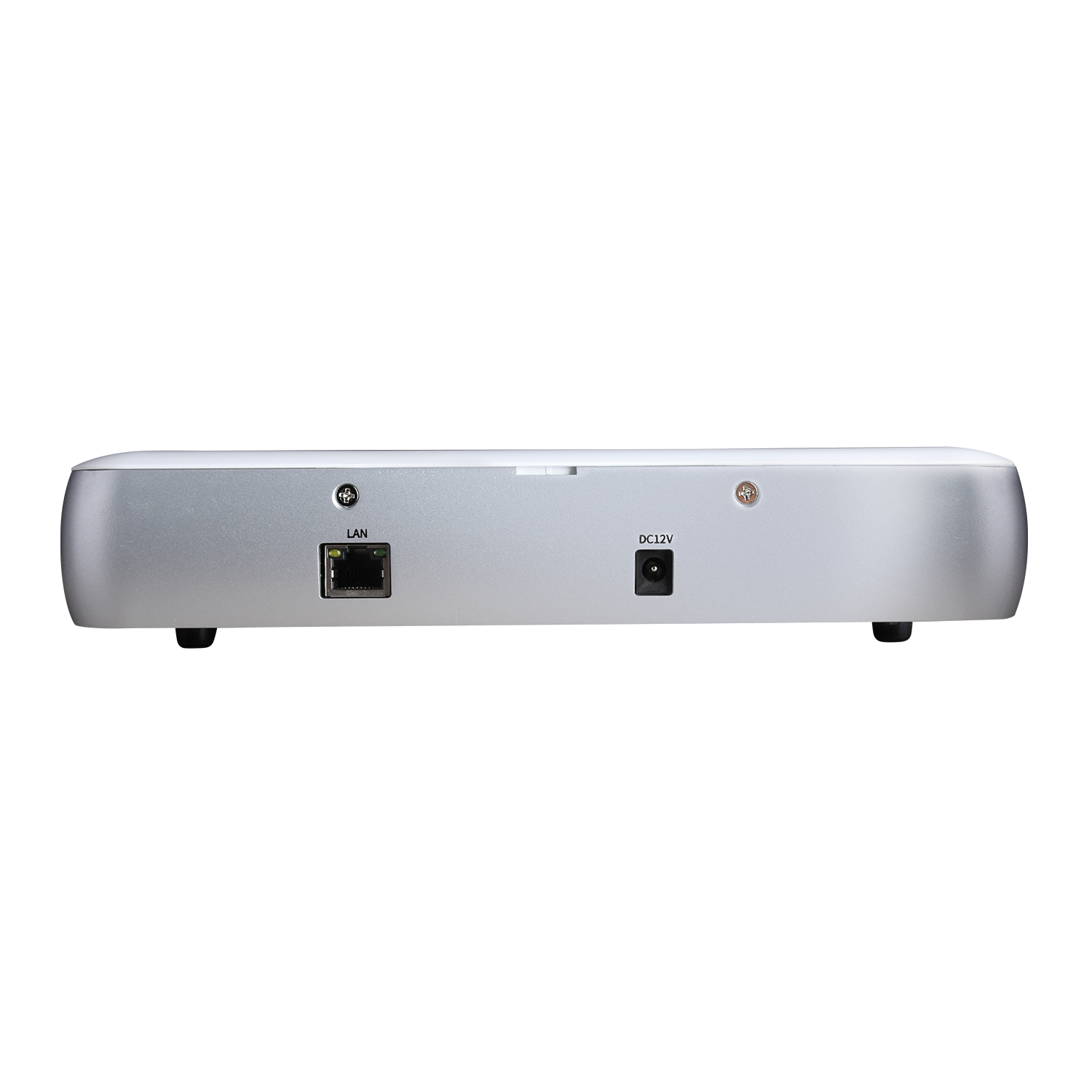

Ethernet port
1x gigabit ethernet port (RJ45), can configure up to 2 IP subnets
System
Max video storage rate (Mbps)
60 Mbps
Storage
Maximum hard drives
2 x SATA HDD
Maximum storage
DW-BJMINIxT: 20TB
DW-BJMINIxTR: 10TB, RAID 1
Local video output NA
Pre-loaded VMS software
DW Spectrum® IPVMS server
Remote clients
Cross-platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
Power supply
36W
Operating temperature and humidity
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
9.84" x 10.74" x 1.96" (250 x 273 x 50mm)
Warranty
5 year limited
