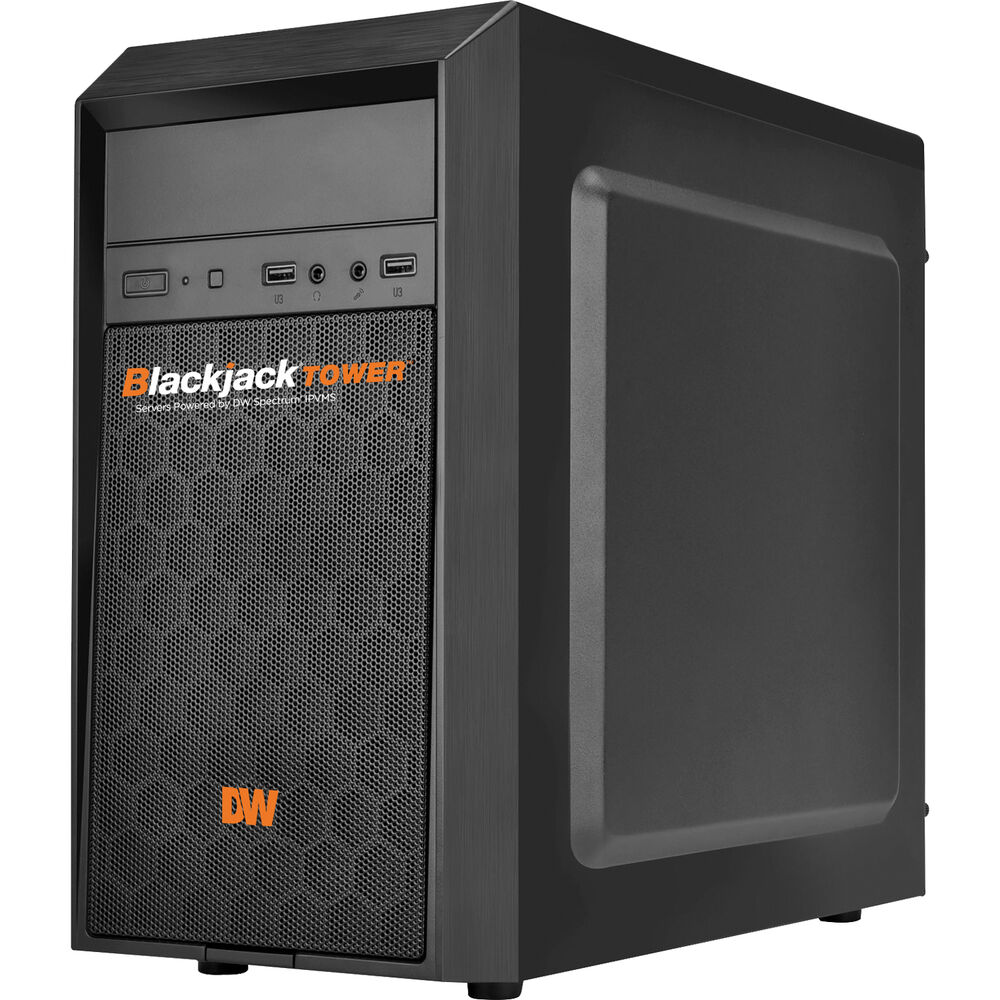

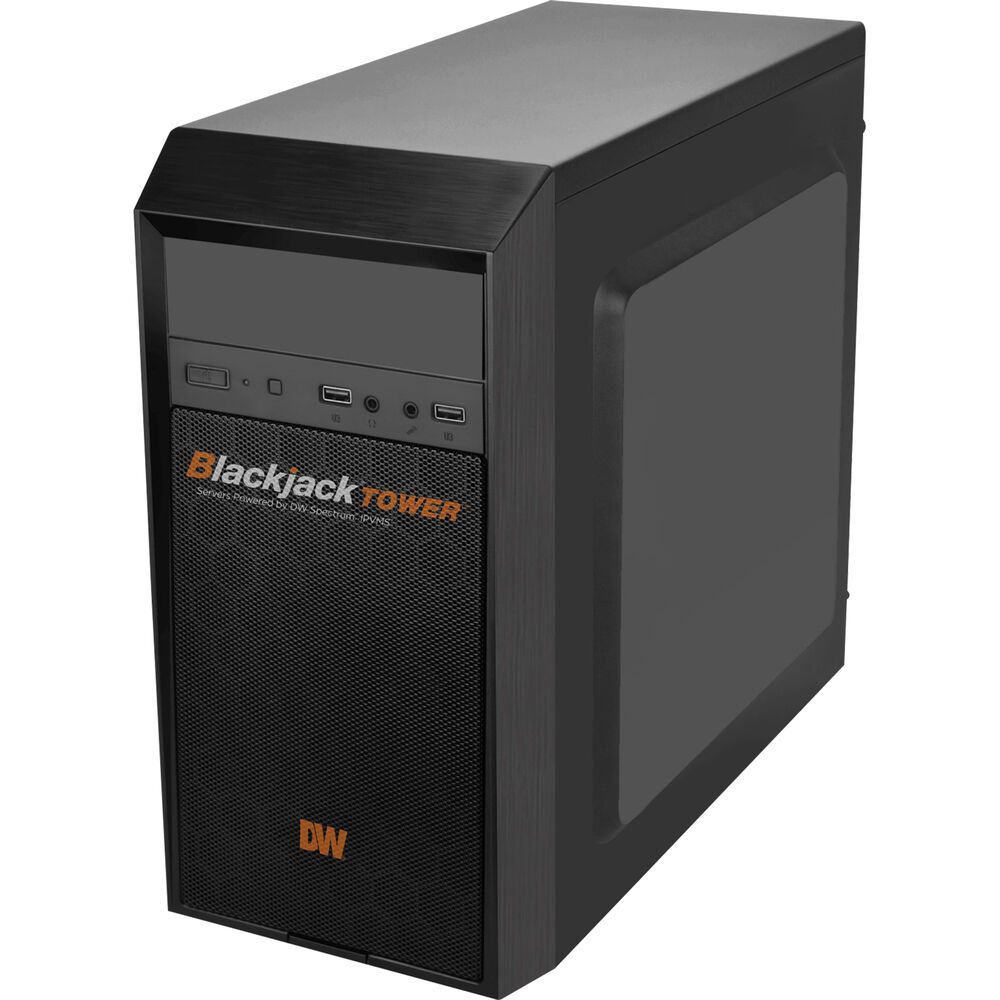

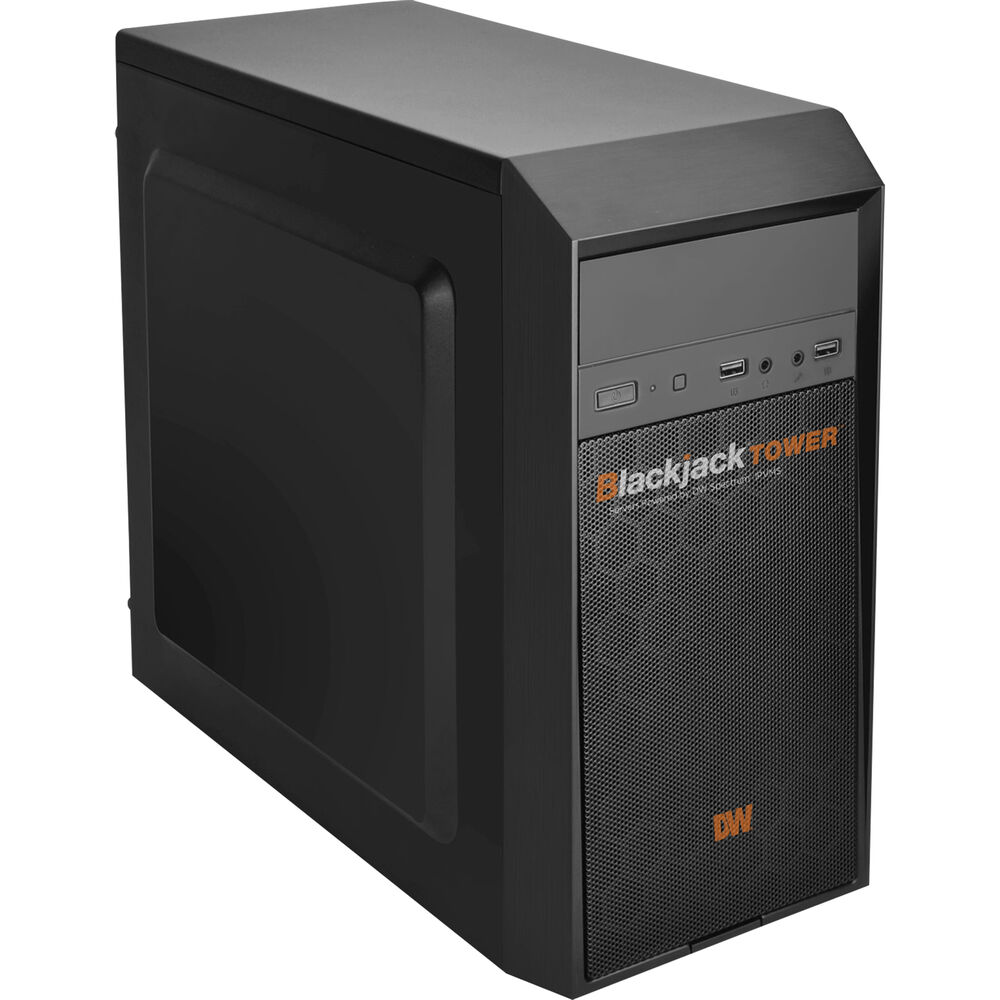

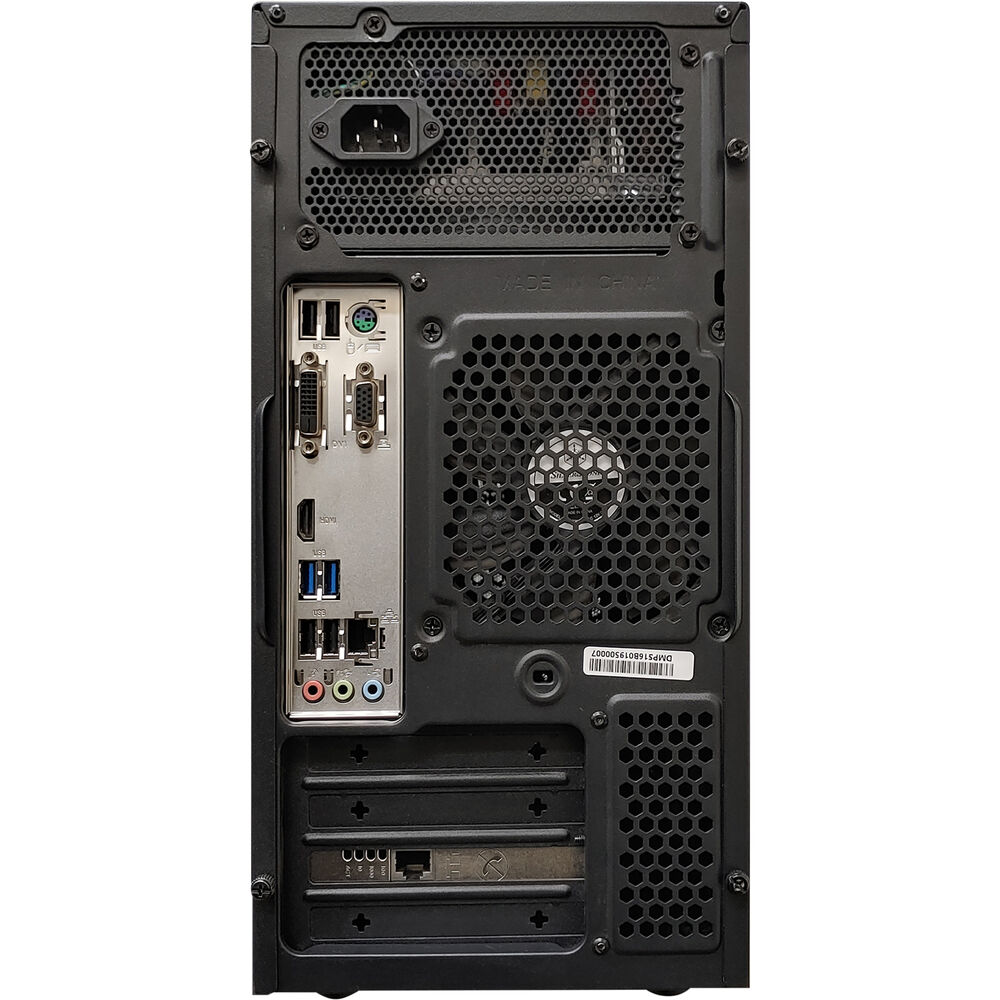

Blackjack® Tower™ mid-size servers are reliable and high-performance solutions for recording multiple IP cameras of any resolution at up to 180Mbps throughput. The servers are UL-listed and NDAA/TAA compliant and include Windows 10® or Linux® Ubuntu® OS on a separate SSD. Hardware features include a 9th generation Intel® Core™ i3 processor, 8GB RAM, dual network cards and local output up to 4K resolution for system configuration. The servers come preloaded with DW Spectrum® IPVMS and four recording licenses, provide up to 20TB internal storage, are ONVIF conformant and come with a 5 year limited warranty.
Features:
|
MODELS
|
DW-BJMT31xxT/LX | DW-BJMT51xxT/LX | DW-BJMT71xxT/LX | |
|
Included IP licenses
|
4 | 4 | 4 | |
|
Form factor
|
Mid-size tower | Mid-size tower | Mid-size tower | |
|
Operating system
|
Windows® 10 | DW-BJMT31xxT | DW-BJMT51xxT | DW-BJMT71xxT |
| Linux Ubuntu® | DW-BJMT31xxTLX | DW-BJMT51xxTLX | --- | |
| Windows Server® | --- | --- | DW-BJMT71xxTS | |
| OS on SSD | 240GB SSD | 240GB SSD | 240GB SSD | |
|
CPU
|
9th generation Intel® i3® processor | 9th generation Intel® i5® processor | 9th generation Intel® i7® processor | |
|
Memory
|
8GB | 16GB | 16GB | |
|
Ethernet port
|
2 x 1Gigabit Ethernet (RJ45) | 2 x 1Gigabit Ethernet (RJ45) | 2 x 1Gigabit Ethernet (RJ45) | |
|
System
|
Max video storage rate (Mbps)
|
180Mbps | 360Mbps | 480 Mbps |
|
Storage
|
Maximum storage drives | 3 x 3.5 SATA HDD | 3 x 3.5 SATA HDD | 3 x 3.5 SATA HDD |
|
Maximum storage
|
20TB | 30TB | 30TB | |
| Video-out |
Outputs
|
1 x true HD, 1 x DVI, 1 x VGA. Maximum 1 display output at a time | ||
|
Video card
|
Onboard Intel graphics | |||
|
Preloaded VMS software
|
DW Spectrum® IPVMS | |||
|
Remote clients
|
Cross-platform - Windows®, Linux® Ubuntu® and Mac® | |||
|
Mobile apps
|
iOS® and Andriod® DW Site Viewer DW Spectrum App |
|||
|
Keyboard and mouse
|
Included | |||
|
Power supply
|
400W** | 400W** | 400W** | |
|
Operating temperature (ambient room temperature)
|
41°F~104°F (5°C~40°C) | |||
|
Operating humidity
|
20~90% RH | |||
|
Dimension (WxDxH)
|
7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm) | |||
| Other certifications | UL listed, ONVIF, NDAA/TAA, CE, FCC | |||
|
Warranty
|
5 year limited | |||
