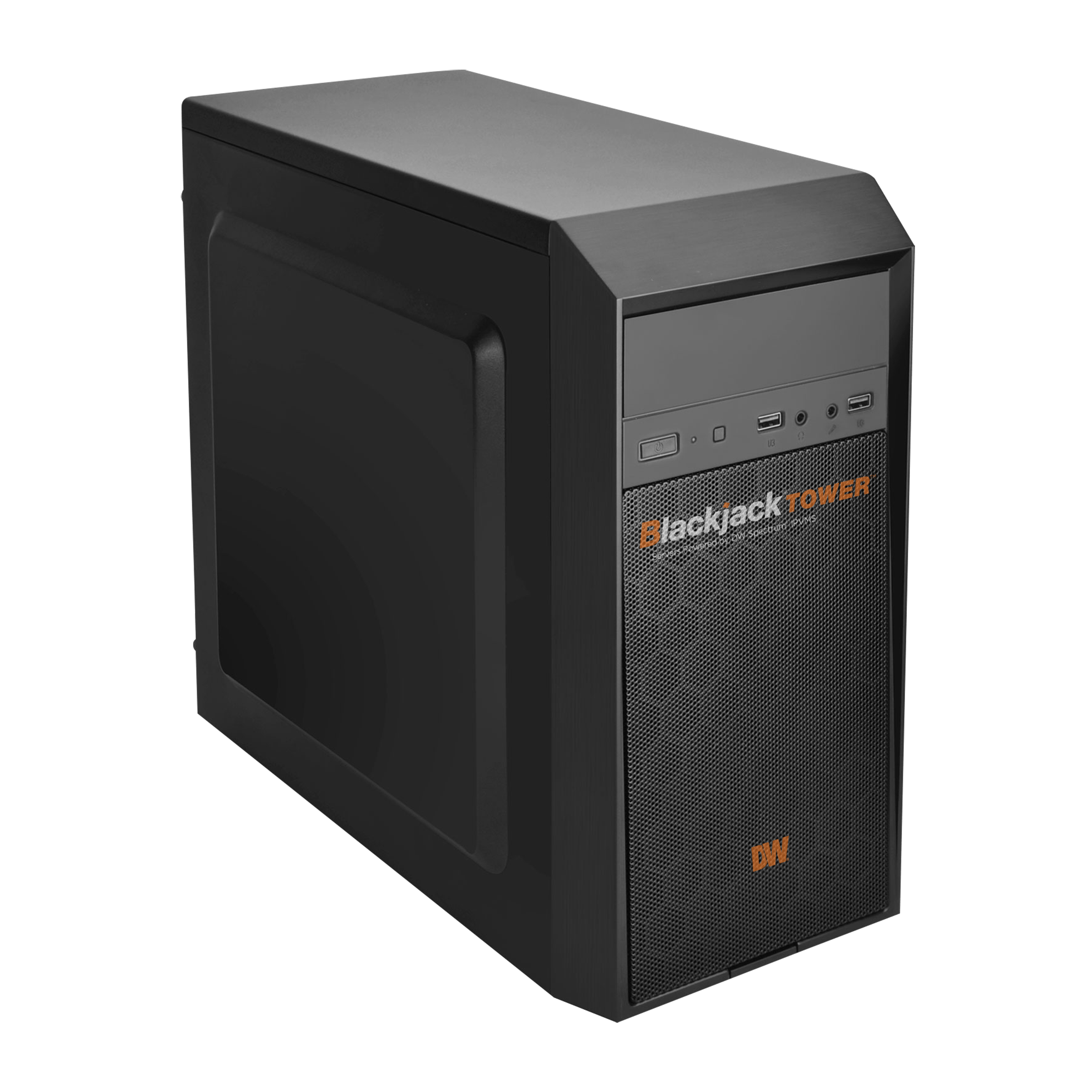

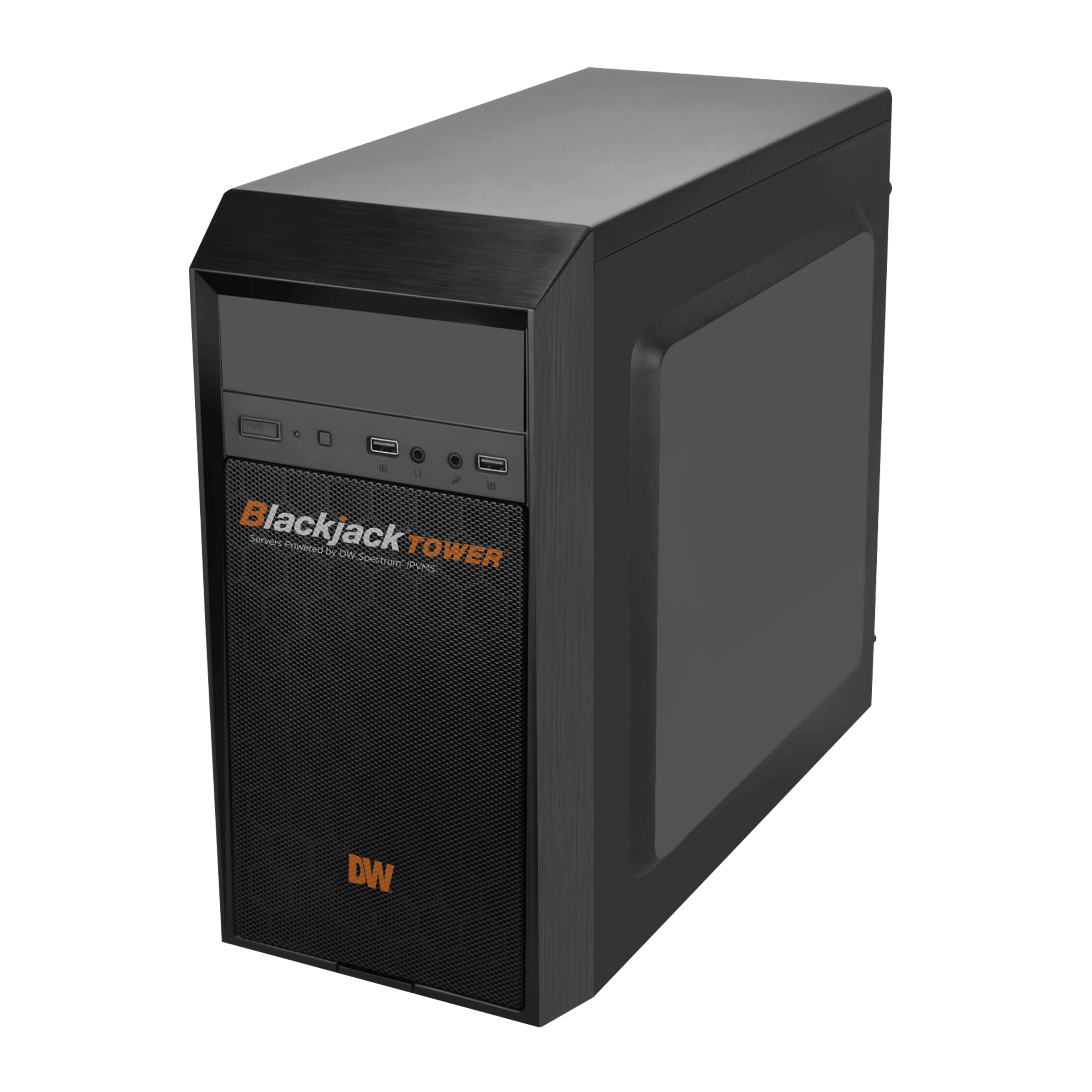

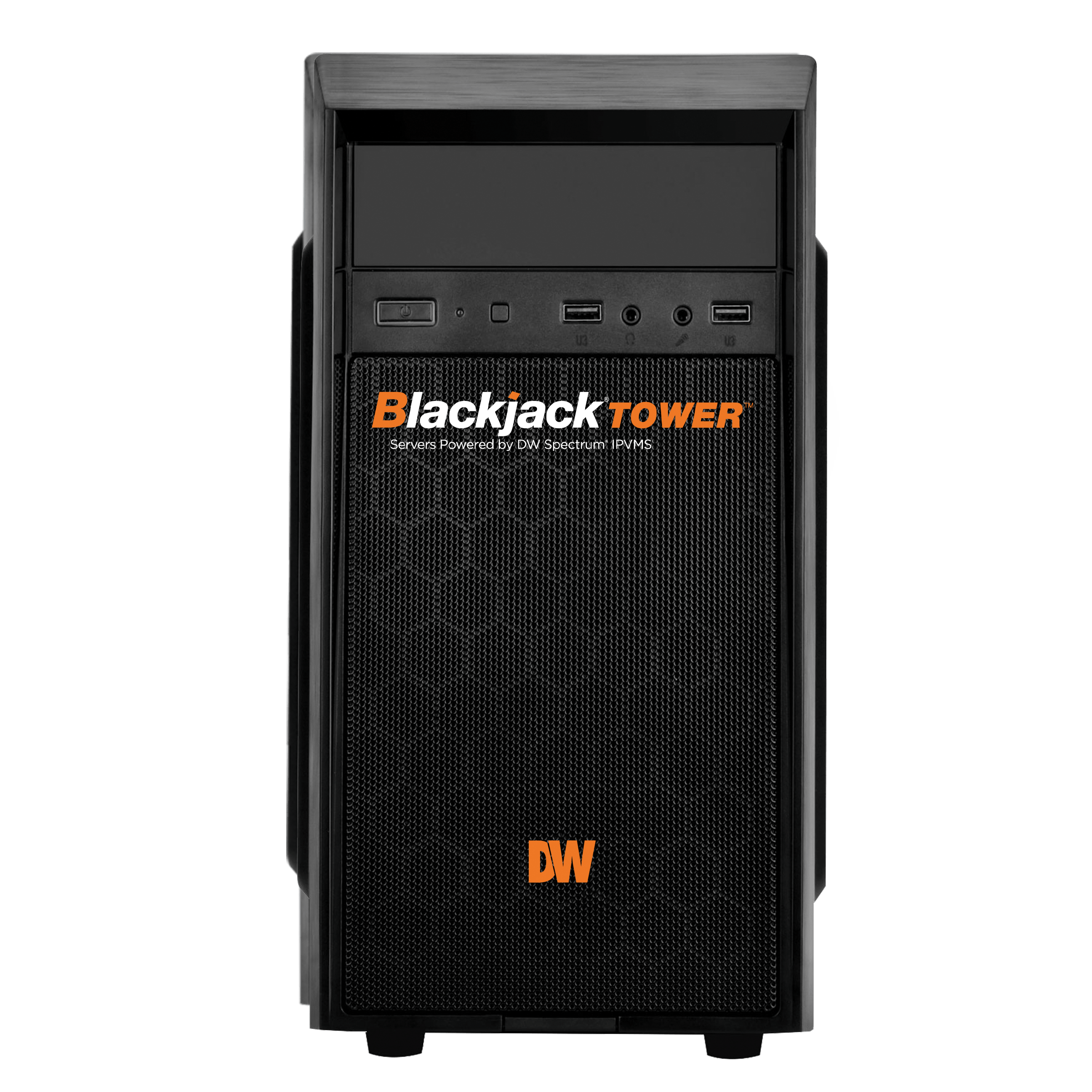

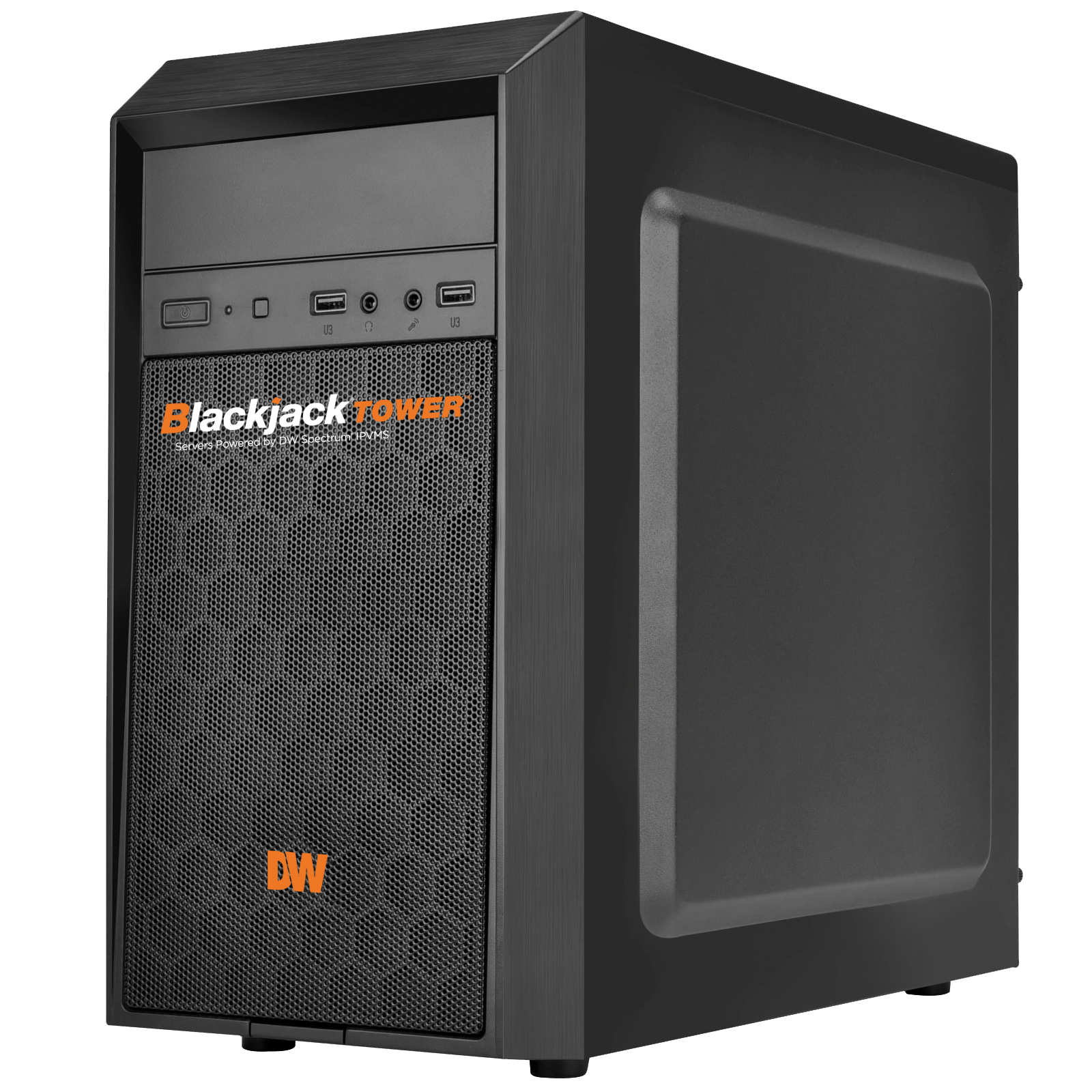

Digital Watchdog - DW-BJMT7130TS - Blackjack Tower Mid-Size Servers with Intel Core i7 Processor, Windows Server OS, 30TB
Part number:
DW-BJMT7130TS
Price:

Blackjack® Tower™ mid-size servers are reliable and high-performance solutions for recording multiple IP cameras of any resolution at up to 480Mbps throughput. The servers are UL-listed and NDAA/TAA compliant and include Windows 10® or Windows Server® OS on a separate SSD. Hardware features include a 9th generation Intel® Core™ i7 processor, 16GB RAM, dual network cards and local output up to 4K resolution for system configuration. The servers come preloaded with DW Spectrum® IPVMS and four recording licenses, provide up to 48TB internal storage, are ONVIF conformant and come with a 5 year limited warranty.


All Blackjack® Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.



Features:

  • Supports all ONVIF conformant IP cameras
  • Up to 48TB internal storage
  • OS on SSD
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 480Mbps throughput

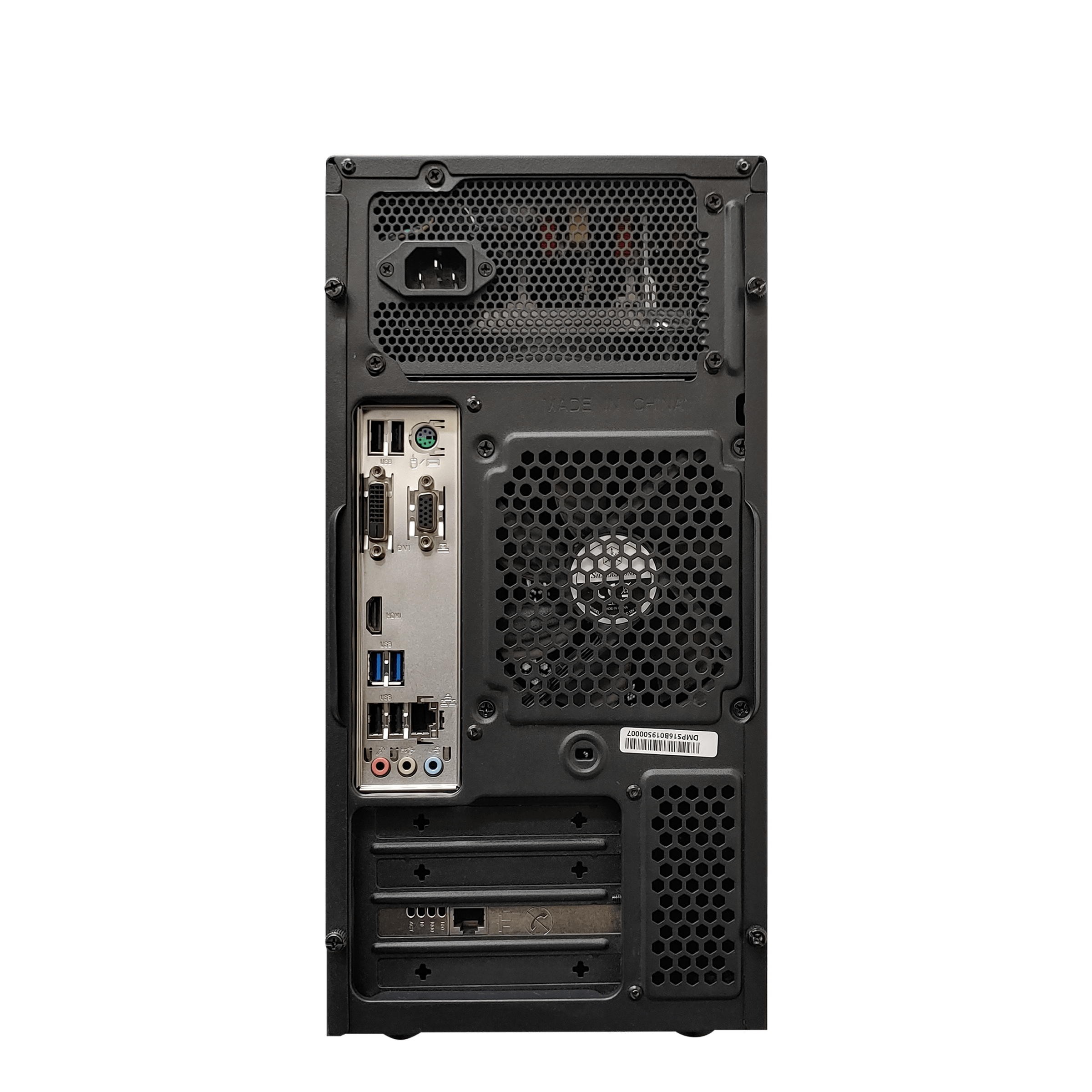

  • 1 x True HD, 1 x DVI, 1 x VGA, 1 display output at a time
  • Dual network ports
  • Windows 10® and Windows® Server® OS options
  • Hosting DW Spectrum® for setup, configuration and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
  • 5 year limited warranty

MODELS

DW-BJMT31xxT/LX DW-BJMT51xxT/LX DW-BJMT71xxT/LX

Included IP licenses

4 4 4

Form factor

Mid-size tower Mid-size tower Mid-size tower

Operating system

Windows®10 DW-BJMT31xxT DW-BJMT51xxT DW-BJMT71xxT
Linux® Ubuntu® DW-BJMT31xxTLX DW-BJMT51xxTLX ---
Windows® Server® --- --- DW-BJMT71xxTS
OS on SSD 240GB SSD 240GB SSD 240GB SSD

CPU

9th generation Intel® i3® processor 9th generation Intel® i5® processor 9th generation Intel® i7® processor

Memory

8GB 16GB 16GB

Ethernet port

2 x 1Gigabit Ethernet (RJ45) 2 x 1Gigabit Ethernet (RJ45) 2 x 1Gigabit Ethernet (RJ45)

System

Max video storage rate (Mbps)

180Mbps 360Mbps 480 Mbps

Storage

Maximum storage drives 3 x 3.5 SATA HDD 3 x 3.5 SATA HDD 3 x 3.5 SATA HDD

Maximum storage

20TB 48TB 48TB
Video-out

Outputs

1 x true HD, 1 x DVI, 1 x VGA. Maximum 1 display output at a time

Video card

Onboard Intel graphics

Preloaded VMS software

DW Spectrum® IPVMS

Remote clients

Cross-platform - Windows®, Linux® Ubuntu® and Mac®

Mobile apps

iOS® and Andriod®
DW Site Viewer
DW Spectrum App

Keyboard and mouse

Included

Power supply

400W** 400W** 400W**

Operating temperature (ambient room temperature)

41°F~104°F (5°C~40°C)

Operating humidity

20~90% RH

Dimension (WxDxH)

7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm)
Other certifications UL listed, ONVIF, NDAA/TAA, CE, FCC

Warranty

5 year limited
