DW Blackjack Network Attached Storage, Linux Embedded OS, 20 terabyte, 160Mbps, 1Gigabit Ethernet, Web Viewer 12vdc. 5 Year Limited Warranty. Note: 12 CaaS cameras max or 32 cameras max with a Bolt/Cube.
Blackjack NAS are high-reliability network attached storage options for Blackjack Cube and Bolt servers, or MEGApix CaaS cameras. The small and simple to setup devices act as recording backup for existing DW Spectrum IPVMS systems. Models offer 4-20TB storage and optional RAID1. These NAS devices integrate easily into a Blackjack system to expand network storage capacity. The Blackjack NAS is seamlessly integrated into the DW Spectrum IPVMS system, allowing for an instant search and data management. The Blackjack NAS is backed by DW’s unbeatable 5-year limited warranty.
Features :
Operating System
|
Linux Embedded
|
Form factor
|
Desktop
|
Flash memory
|
128MB
|
Maximum hard drives
|
2 x SATA HDD
|
Maximum storage capacity
|
20TB (2 x 10TB)
|
Max. recording channel
|
24ch with MEGApix CaaS Max 24 2.1MP cameras with Blakjack Bolt and Blackjack Cube
|
Max. recording bandwidth
|
Max. 120Mbps throughput
|
LAN
|

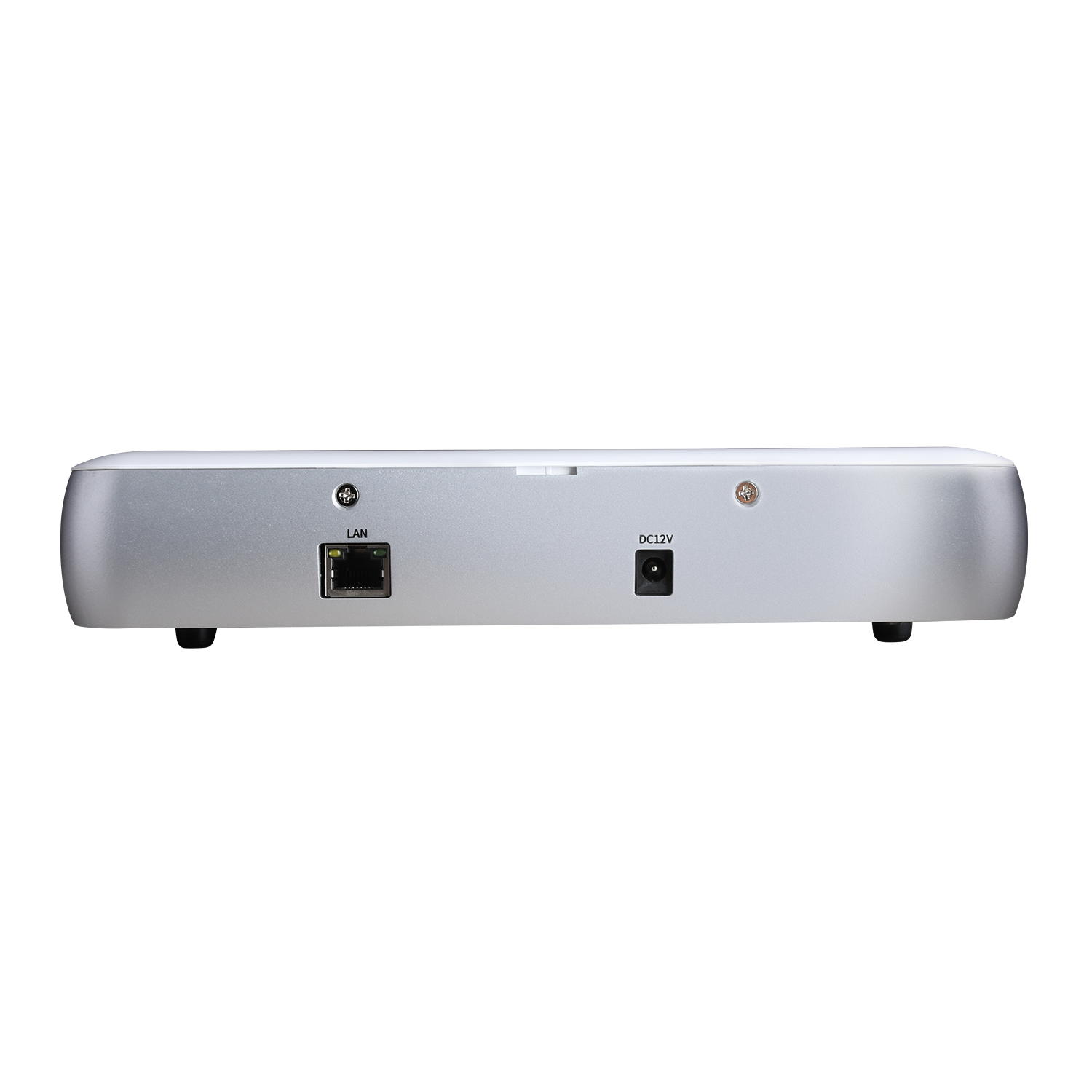

1 x gigabit ethernet (RJ45 connector)
|
Network protocol
|
SMB, HTTP, SMTP, NTP
|
Storage file system
|
EXT4
|
LED indicators
|
HDD status, power
|
Remote configuration
|
Blackjack NAS web management console, DW IP Finder
|
Supported IPVMS
|
DW Spectrum IPVMS
|
Supported Browsers
|
Microsoft IE 10 or higher
Google Chrome 57 or higher Mac Safari 9 or higher (required) Firefox 43 or higher |
Operating temperature
|
41°F~104°F (5°C~40°C)
|
Humidity
|
20~90% (RH) non-condensing
|
Power supply
|
DC 12V
|
Power consumption
|
36W, 3A
|
Dimensions (WxDxH)
|
10.2" x 11.02" x 2.1" (258 x 280 x 53mm)
|
Weight
|
Gross: 4.73lbs (2.1Kg)
Net: 3.3lbs (1.5Kg) |
Warranty
|
5 year limited
|
