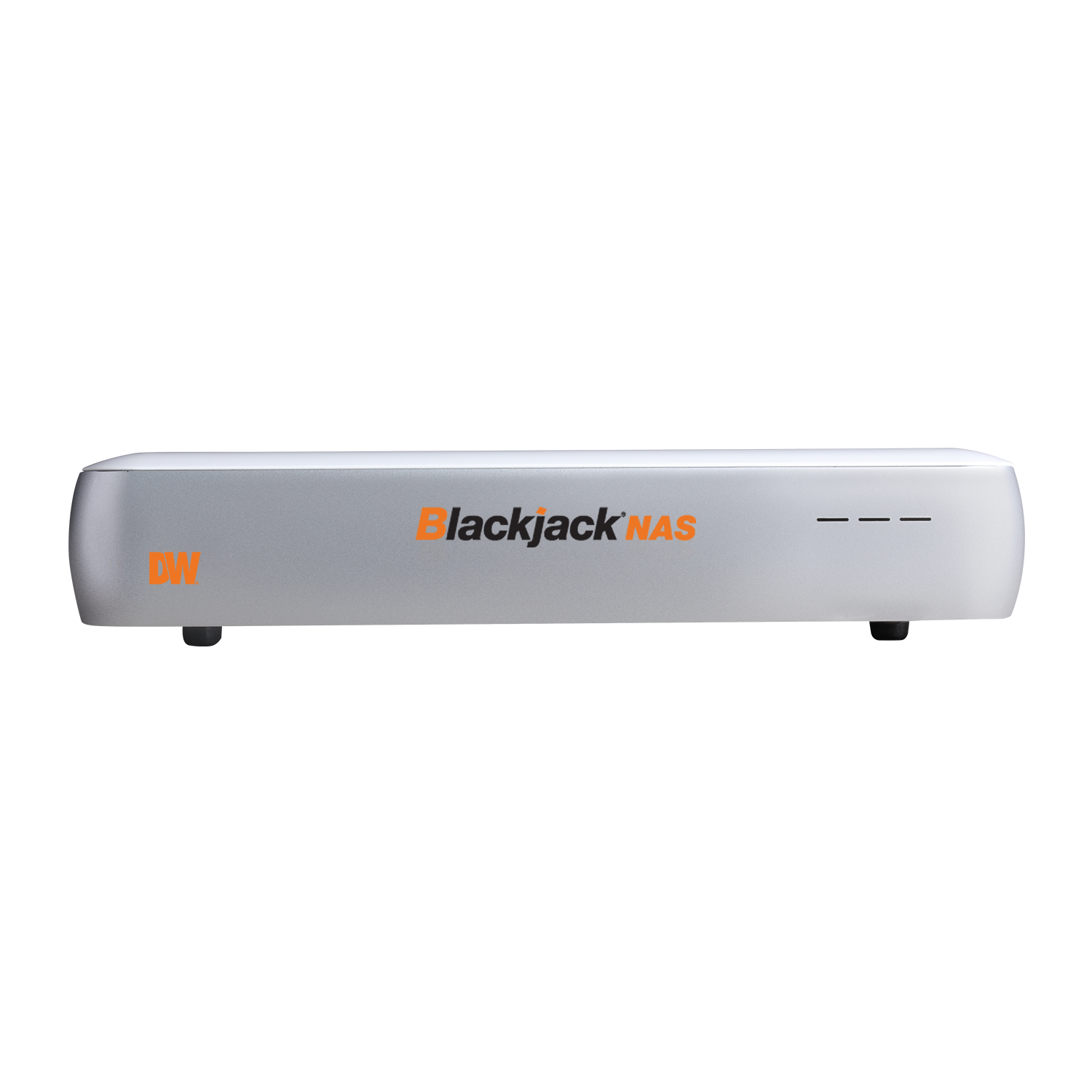

Digital Watchdog - DW-BJNAS20TR - Blackjack NAS storage for Blackjack NVRs or MEGApix CaaS cameras-10 TB

DW Blackjack Network Attached Storage, Linux Embedded OS, 10 terabyte usable storage, 160Mbps, 1Gigabit Ethernet, Web Viewer 12vdc. 5 Year Limited Warranty. Note: 12 CaaS cameras max or 32 cameras max with a Bolt/Cube.

Part number:
DW-BJNAS20TR
Price:

Blackjack NAS are high-reliability network attached storage options for Blackjack Cube and Bolt servers, or MEGApix CaaS cameras. The small and simple to setup devices act as recording backup for existing DW Spectrum IPVMS systems. Models offer 4-20TB storage and optional RAID1. These NAS devices integrate easily into a Blackjack system to expand network storage capacity. The Blackjack NAS is seamlessly integrated into the DW Spectrum IPVMS system, allowing for an instant search and data management. The Blackjack NAS is backed by DW’s unbeatable 5-year limited warranty.


Features :

  • Centralize your file storage and backup with excellent performance
  • Expands recording capacity of any MEGApix CaaS camera solution OR Blackjack NVR system
  • Add and manage recording for your NAS station directly from the DW Spectrum IPVMS client software
  • Seamless search via the DW Spectrum IPVMS client, including smart motion search, spyglass and calendar search options.
  • Add a NAS station to a MEGApix CaaS network with up to 24 cameras
  • Add a NAS station to a Blackjack server to quickly expand local storage and backup up to 120Mbps throughput.
  • Storage options 4-20TB internal storage
  • RAID1 option (DW-BJNASxTR models)
  • Linux embedded OS
  • Attractive and slim desktop design to compliment any application
  • NDAA/TAA compliant
  • 5 year warranty
Operating System
Linux Embedded
Form factor
Desktop
Flash memory
128MB
Maximum hard drives
2 x SATA HDD
Maximum storage capacity
20TB (2 x 10TB)
Max. recording channel
24ch with MEGApix CaaS Max 24 2.1MP cameras with Blakjack Bolt and Blackjack Cube
Max. recording bandwidth
Max. 120Mbps throughput

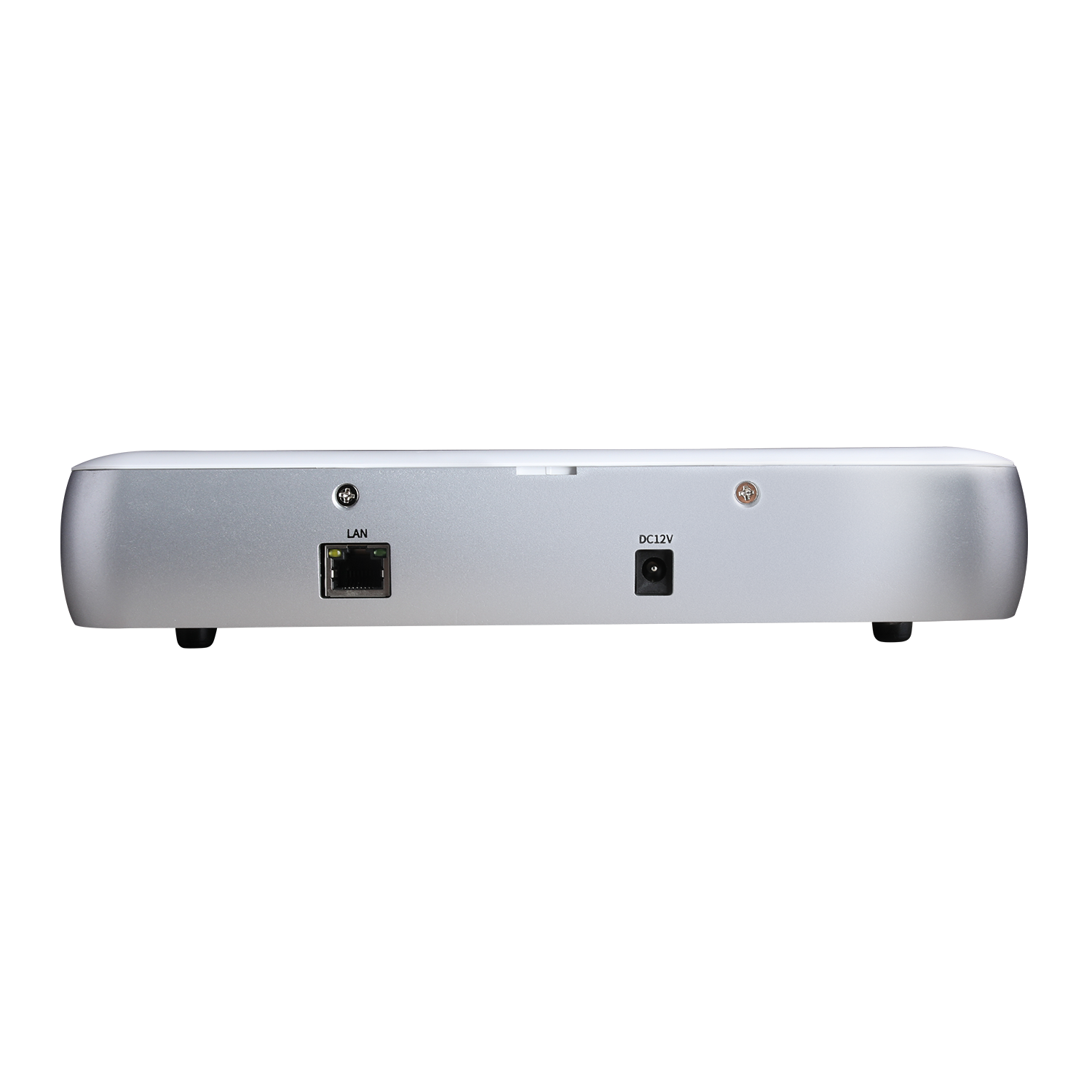

LAN
1 x gigabit ethernet (RJ45 connector)
Network protocol
SMB, HTTP, SMTP, NTP
Storage file system
EXT4
LED indicators
HDD status, power
Remote configuration
Blackjack NAS web management console, DW IP Finder
Supported IPVMS
DW Spectrum IPVMS
Supported Browsers
Microsoft IE 10 or higher
Google Chrome 57 or higher
Mac Safari 9 or higher (required)
Firefox 43 or higher
Operating temperature
41°F~104°F (5°C~40°C)
Humidity
20~90% (RH) non-condensing
Power supply
DC 12V
Power consumption
36W, 3A
Dimensions (WxDxH)
10.2" x 11.02" x 2.1" (258 x 280 x 53mm)
Weight
Gross: 4.73lbs (2.1Kg)
Net: 3.3lbs (1.5Kg)
Warranty
5 year limited
Name
Description
Size
Downloads
File
DW-BJNASxT_R data sheet
0.3mb
File
DW-BJNASxT user manual
1.4mb
File
Blackjack NAS product brochure
1.7mb
