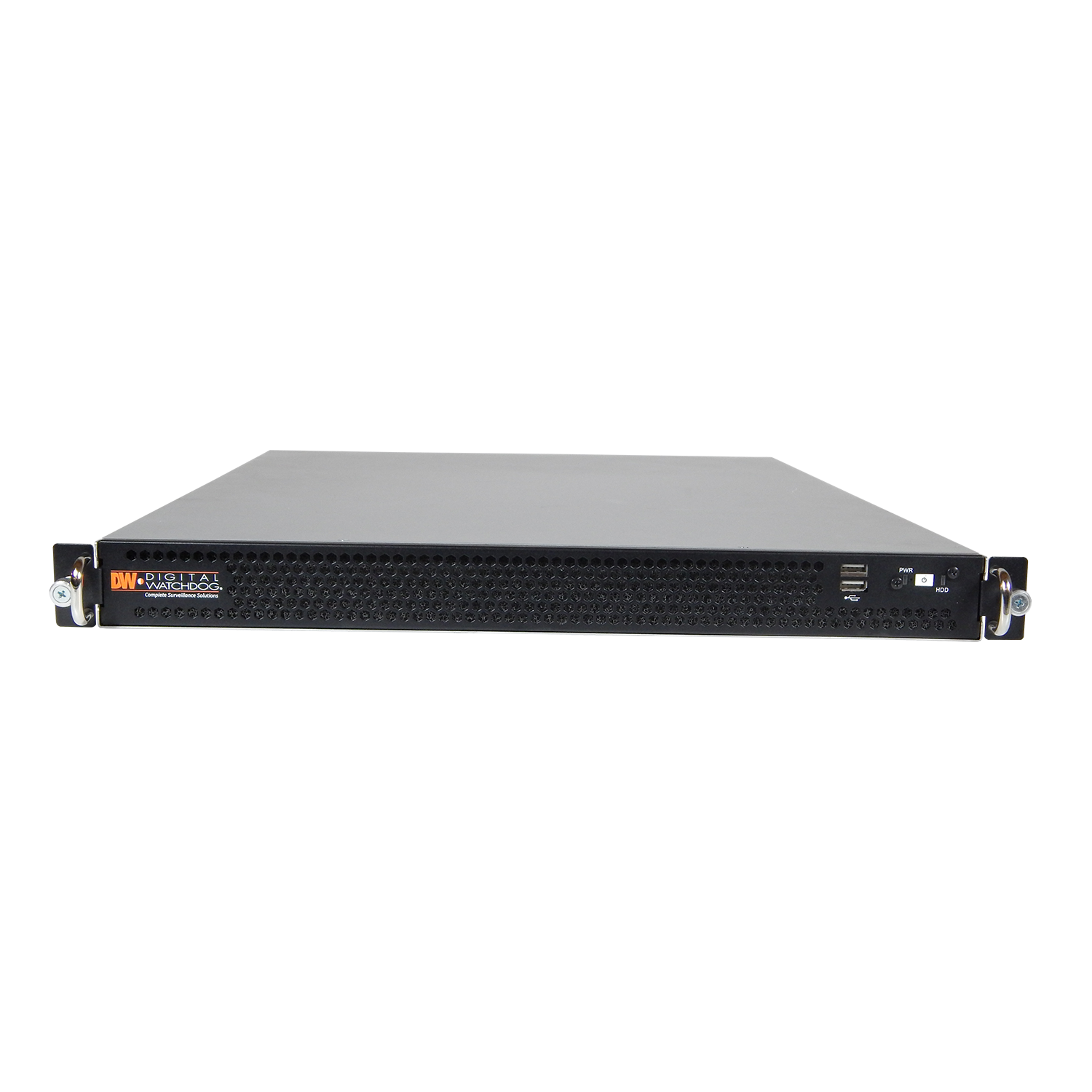

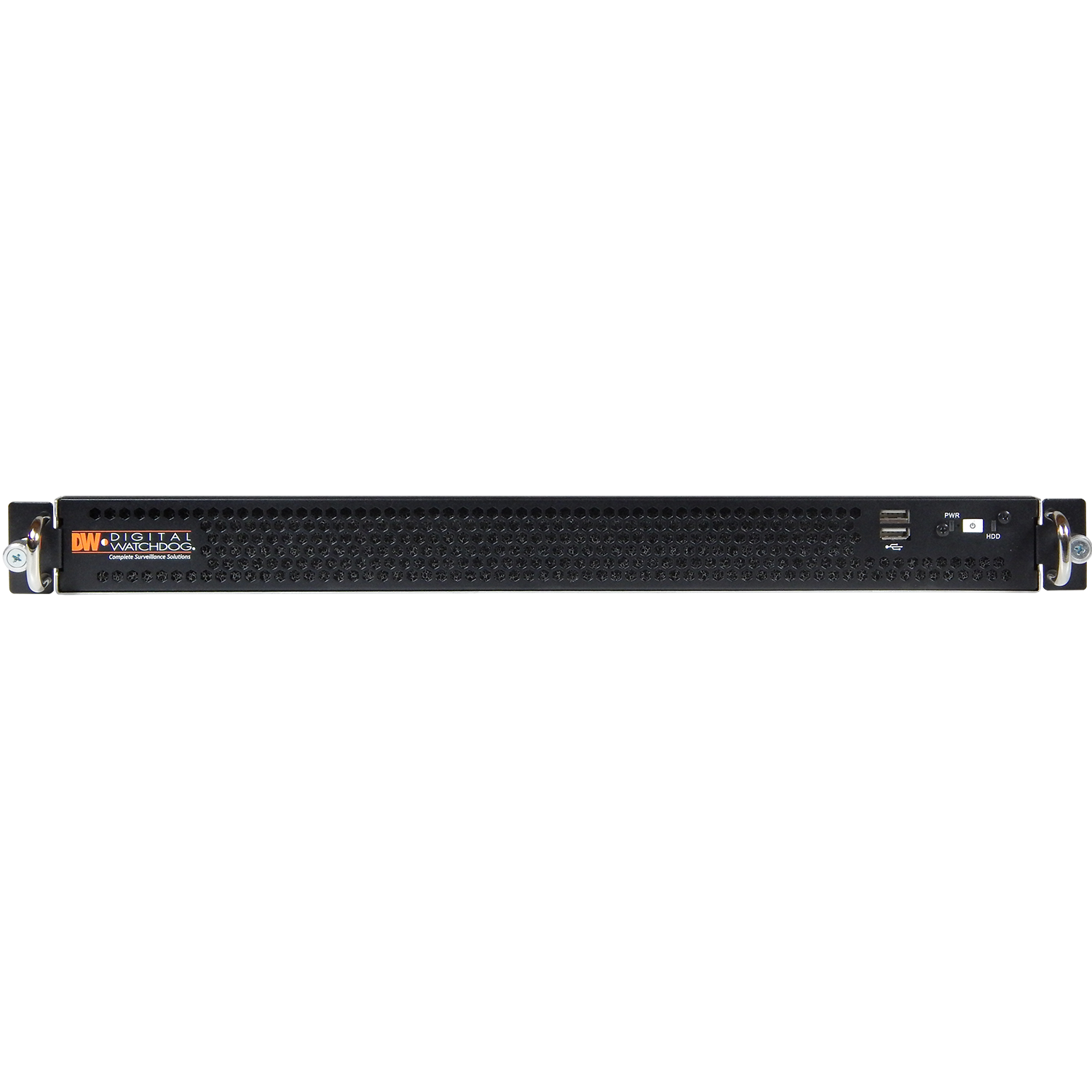

Digital Watchdog - DW-BJP1U10T - Blackjack P-RACK 1U 4-Bay Chassis NVRs powered by DW Spectrum IPVMS Windows 10 OS 10 TB HDD
Part number:
DW-BJP1U10T
Price:

​​​​​​Blackjack® P-Rack™ servers can record and manage single- and multi-sensor IP cameras of any resolution, with a maximum of 360Mbps throughput. Standard features include Intel® i5®, Windows® 10 IoT or Linux® Ubuntu® 18.04 LTS OS and 2x NIC cards. Blackjack® P-Rack™ servers can be configured with 16-48TB HDD and come with our 5 year limited warranty.

All Blackjack® P-RACK NVR models come with a DW-SPECTRUMLS004 4-channel license included.



Features:

  • Supports All ONVIF conformant IP cameras
  • Storage options 10-30TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 64 2.1MP cameras at 30fps and a maximum of 360Mbps throughput
  • True HD, VGA and DVI local monitoring outputs ports
  • Dual network ports
  • Windows® 10 IoT or Linux® Ubuntu® 16.04 OS on separate SSD
  • USB interface
  • Hosting DW Spectrum® IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum® IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit Included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 years limited warranty
Maximum IP cameras64 (2.1MP/1080p @30fps, with medium recording quality)
Included IP licenses4
Form factorRack mount
Operating systemWindows® 10 IoTDW-BJP1UXT
Linux Ubuntu® 64 bitDW-BJP1UXT-LX
OS on SSD150GB SSD
CPUIntel® i5® processor
Option: DW-CPUI7 - upgrade processor to i7*
Memory16GB


Ethernet port2x gigabit ethernet ports (RJ45)


SystemMax video storage rate (Mbps)360 Mbps
StorageMaximum hard drives1 x SSD + 3 x HDD
Maximum storage30TB
Video-outOutputsTrue HD output or VGA or DVI
Video cardGeForce 210 512MB
Option: DW-RV4H - 4 head HD video card*
ResolutionHD 1080p
Pre-loaded VMS softwareDW Spectrum® IPVMS
Remote clientsCross platform - Windows®, Linux Ubuntu® and Mac®
Mobile appsiOS® and Andriod®
Keyboard & mouseIncluded
Rail kitIncluded
Power supply300W**
Operating temperature and humidity41°F~104°F (5°C~40°C)
Operating humidity20~90% RH
Dimension (WxDxH)17.32” x 20.86” x 1.718” (440 x 530 x 43.65 mm)
Warranty5 year limited
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Quick Start Guide
0.6mb
File
Blackjack Brochure
1mb
File
AE Specifications
0.1mb
