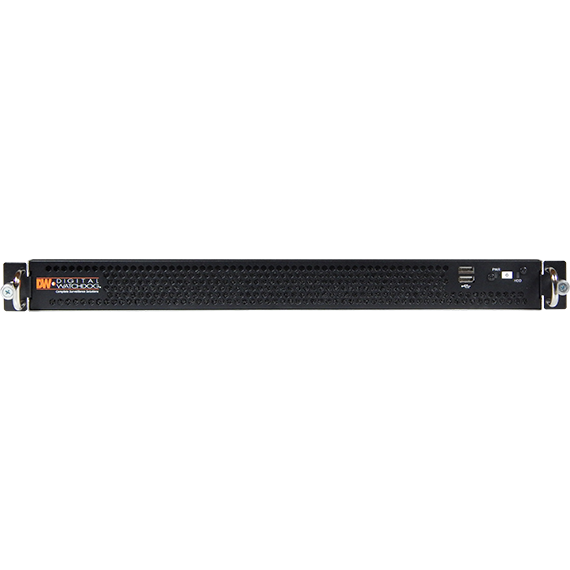

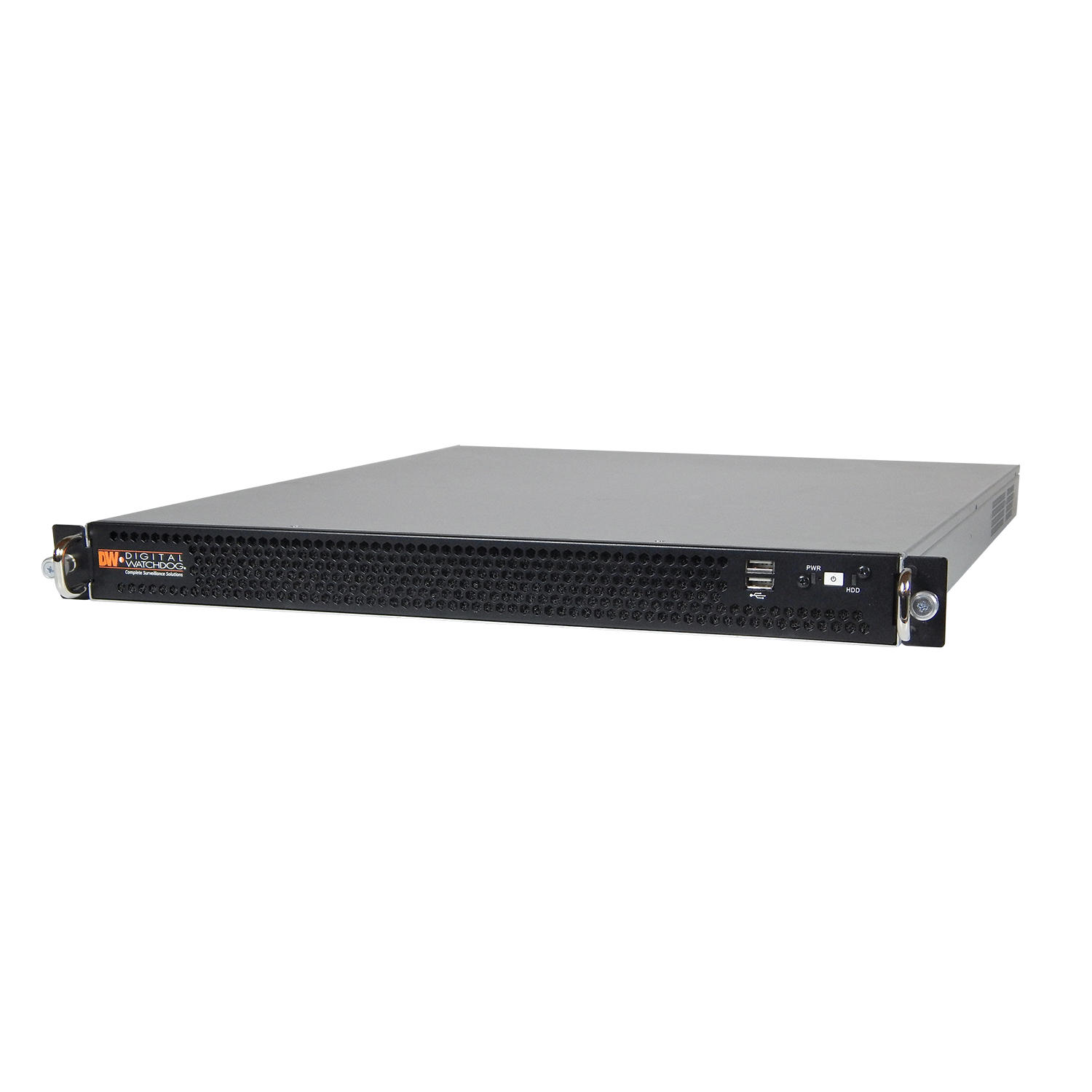

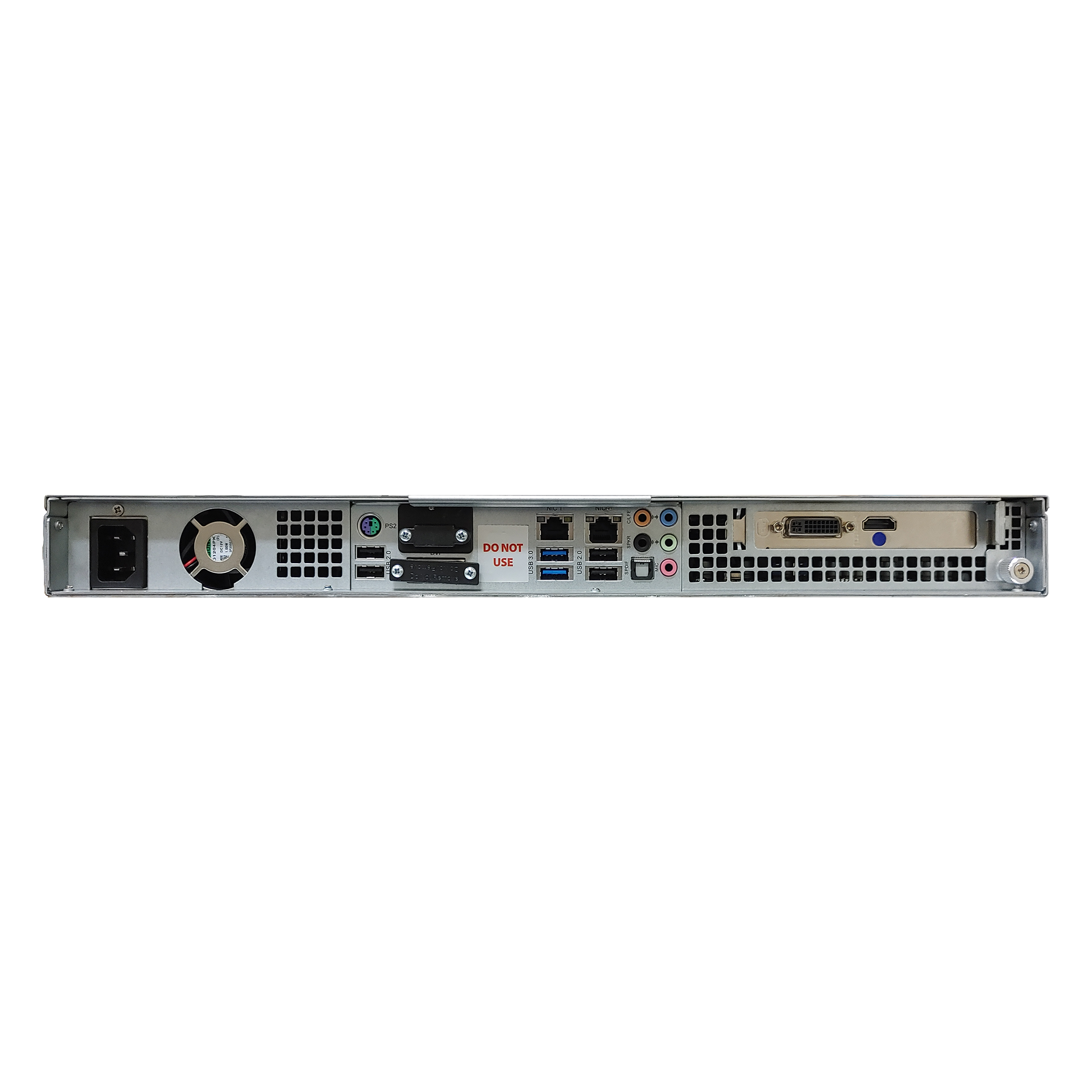

Blackjack® P-Rack™ servers are NDAA and TAA compliant and can record and manage single- and multi-sensor IP cameras of any resolution with a maximum of 360Mbps throughput. Standard features include Intel® i5®, Windows® 10 IoT or Linux® Ubuntu® 18.04 LTS OS on separate SSD and 2x NIC cards. Blackjack P-Rack servers come preloaded with the DW Spectrum® IPVMS suite, can be configured with 16-48TB recording storage and come with our 5 year limited warranty.
Features:
| Video | |
|---|---|
| Compression | H.264 H.265 |
| CPU | Intel® i5® processor Option: DW-CPUI7 - upgrade processor to i7* * Available at initial order only |
| Display Modes | Unlimited Sequence Customizable |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | True HD VGA DVI 1 display output at a time |
| Memory | 16GB |
| Operating System | Linux OS Windows®10 |
| Video Card | GeForce 210 512MB Option: DW-RV4H - 4 head HD video card* * Available at initial order only |
| OS on SSD | 150GB SSD |
| Storage | |
| Max HDD Bay | 3 x SATA HDD |
| Maximum Storage | 30TB |
| General | |
| Accessories | Keyboard Mouse |
| Certification | NDAA Compliance ONVIF Conformant TAA Compliance |
| Form Factor | Rack mount |
| General Dimensions | 17.32” x 20.86” x 1.718 (440 x 530 x 43.65 mm) |
| General Warranty | 5 Year Limited Warranty |
| Included IP licenses | 4 |
| Max video storage rate (Mbps) | 360Mbps |
| Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C) 20 ~ 90% RH |
| Power Consumption | 300W A UPS is recommended |
| Rail kit | Included |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI) USB mouse (included) Remote via DW Spectrum IPVMS |
| USB interface | Yes |
| Network | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum® IPVMS |
| Remote Software | DW Site Viewer for Apple TV DW Spectrum Mobile App Cross-platform - Windows®, Linux Ubuntu® and Mac® DW Mobile Plus |
| Performance | |
| Playback Functions | Timeline Calendar Event search Thumbnail search Smart motion search |
| PTZ control | ONVIF |
| Recording Modes | Continuous Motion detection Motion + low res always Object only Object + Low res Motion + Object Motion + Object + Low res |
Model #* |
Usable Storage Size** |
| DW-BJP1U16T | 16TB |
| DW-BJP1U32T | 32TB |
| DW-BJP1U48T | 48TB |
