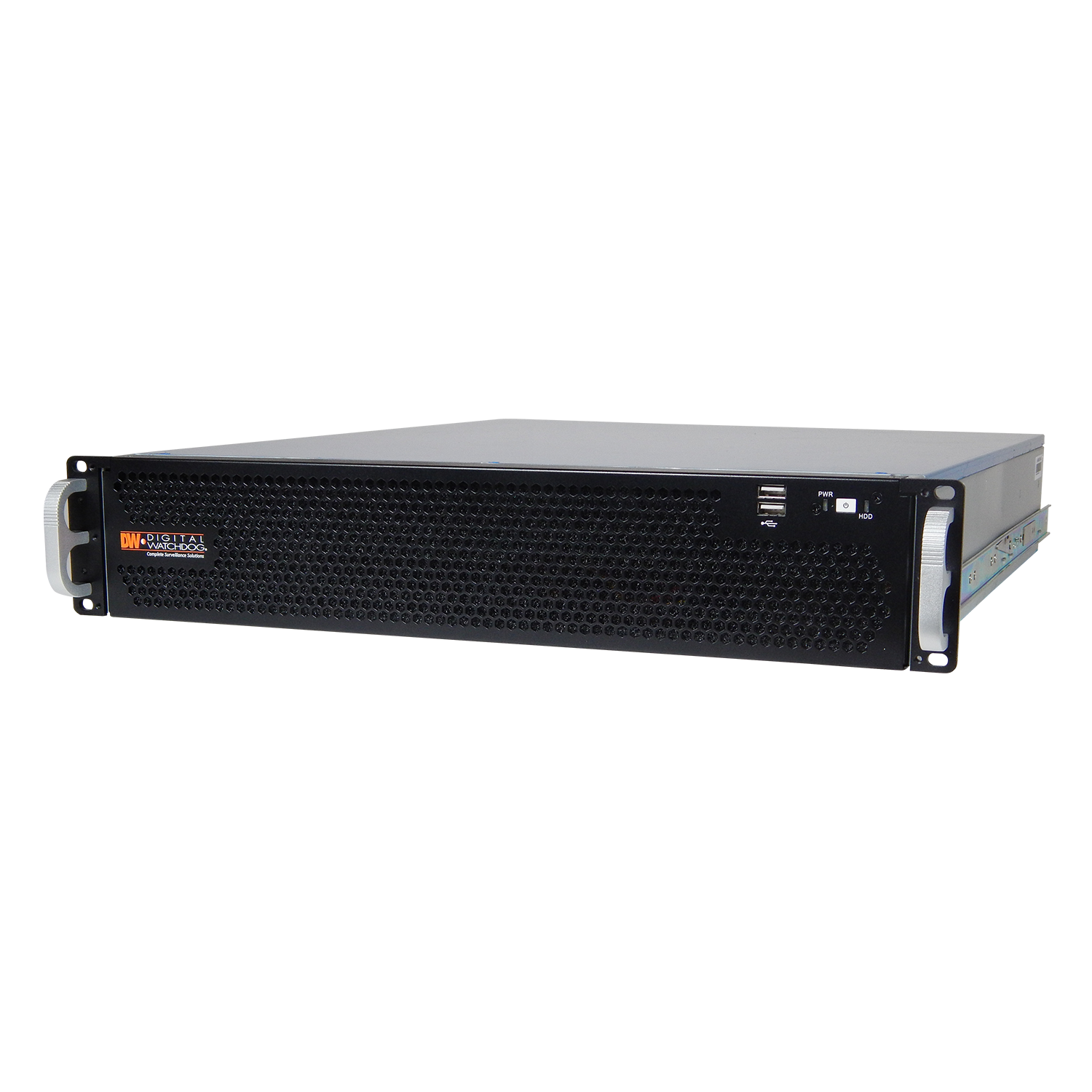

Blackjack® P-Rack™ servers are NDAA and TAA compliant and can record and manage single- and multi-sensor IP cameras of any resolution with a maximum of 600Mbps throughput. Standard features include Intel® i7®, Windows® 10 IoT or Linux® Ubuntu® 18.04 LTS OS on separate SSD and 2x NIC cards. Blackjack P-Rack servers come preloaded with the DW Spectrum® IPVMS suite, can be configured with 32-112TB recording storage and come with our 5 year limited warranty.
Features:
Video | |
---|---|
Compression | H.264 H.265 |
CPU | Intel i7® processor |
Display Modes | Unlimited Sequence Customizable |
Display Speed | Up to 30fps per channel |
Local Video Outputs | True HD VGA DVI 1 display output at a time |
Memory | 16GB |
Operating System | Linux OS Windows®10 |
Video Card | GeForce 210 512MB Option: DW-RV4H - 4 head HD video card* * Available at initial order only |
OS on SSD | 150GB SSD |
Storage | |
Max HDD Bay | 6 x SATA HDD |
Maximum Storage | 70TB |
General | |
Accessories | Keyboard Mouse |
Certification | NDAA Compliance ONVIF Conformant TAA Compliance |
Form Factor | Rack mount |
General Dimensions | 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm) |
General Warranty | 5 Year Limited Warranty |
Included IP licenses | 4 |
Max video storage rate (Mbps) | 600Mbps |
Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C) 20 ~ 90% RH |
Power Consumption | 400W A UPS is recommended |
Rail kit | Included |
Serial ports | ONVIF |
System Operation | Graphical user interface (GUI) USB mouse (included) Remote via DW Spectrum IPVMS |
USB interface | Yes |
Network | |
Backup | Network backup via DW Spectrum IPVMS |
Ethernet Ports | 2x 1G Ethernet (RJ45) |
Ethernet Ports (Product Specification) | Option: DW-R2NIC - upgrade dual 1GB NIC card OR DW-R4NIC - upgrade quad 1GB NIC card * * Available at initial order only |
Pre-loaded VMS software | DW Spectrum® IPVMS |
Remote Software | DW Site Viewer for Apple TV DW Spectrum Mobile App Cross-platform - Windows®, Linux Ubuntu® and Mac® DW Mobile Plus |
Performance | |
Playback Functions | Timeline Calendar Event search Thumbnail search Smart motion search |
PTZ control | ONVIF |
Recording Modes | Continuous Motion detection Motion + low res always Object only Object + Low res Motion + Object Motion + Object + Low res |
Model #* |
Usable Storage Size** |
DW-BJP2U32T | 32TB |
DW-BJP2U48T | 48TB |
DW-BJP2U64T | 64TB |
DW-BJP2U96T | 96TB |
DW-BJP2U112T | 112TB |
