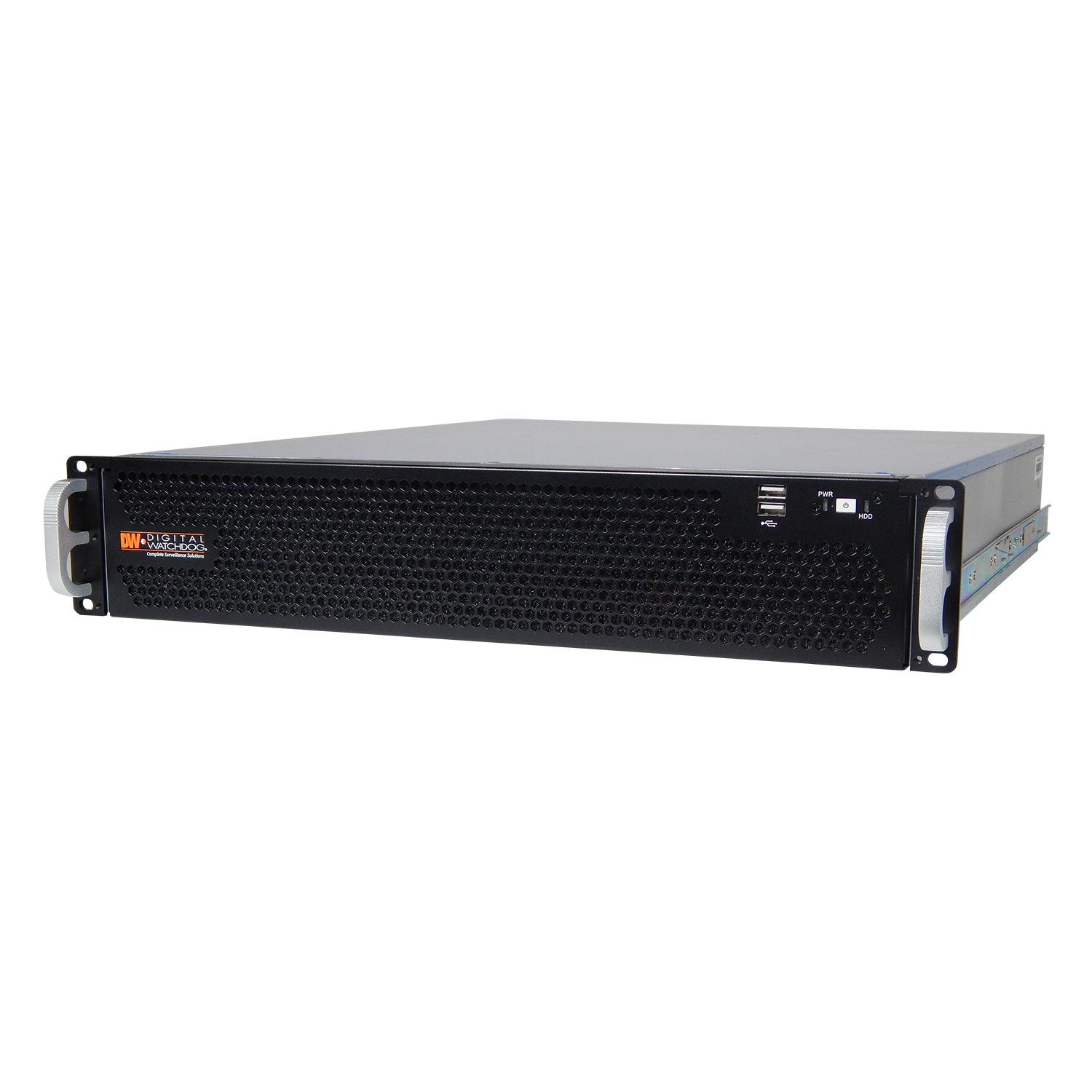

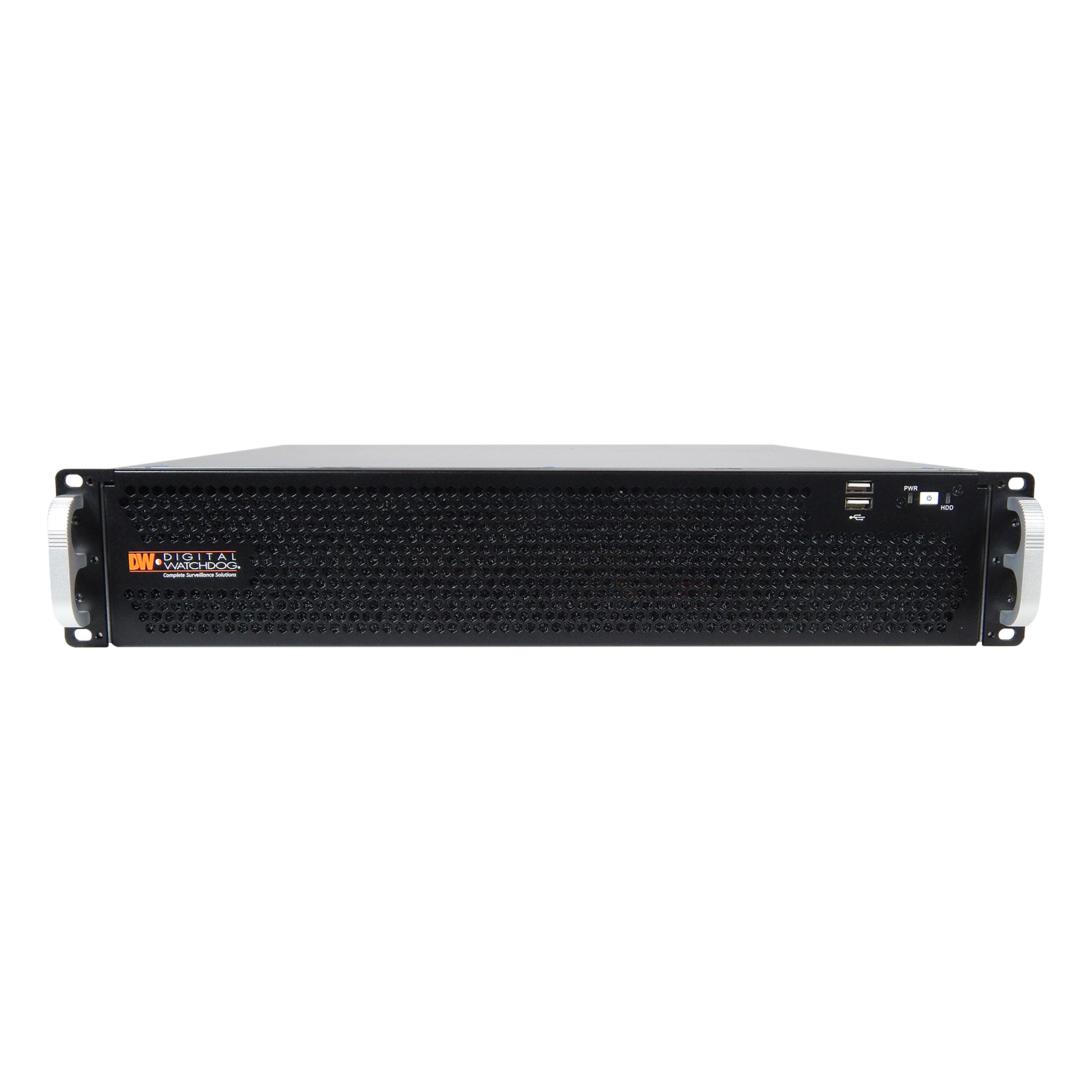

Digital Watchdog - DW-BJPR2U64T - 64TB Blackjack P-Rack 2U 8-Bay Chassis with RAID
Part number:
DW-BJPR2U64T
Price:

Blackjack P-Rack servers are NDAA and TAA compliant and can record and manage single- and multi-sensor IP cameras of any resolution with a maximum of 600Mbps throughput. Standard features include Intel i7, Windows 10 IoT or Linux Ubuntu 18.04 LTS OS on separate SSD and 2x NIC cards. Blackjack P-Rack servers come preloaded with the DW Spectrum IPVMS suite, can be configured with 64-96TB RAID5 recording storage and come with our 5 year limited warranty.



Features :

  • Supports All ONVIF conformant IP cameras
  • Storage options 64-96TB internal storage, 48-80TB usable storage
  • Data redundancy
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • True HD and DVI local monitoring outputs ports
  • Dual network ports
  • Windows 10 IoT or Linux Ubuntu 18.04 LTS OS on separate SSD
  • Hosting DW Spectrum IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 years limited warranty
Video
Compression H.264
H.265
CPU Intel i7® processor
Display Modes Unlimited
Sequence
Customizable
Display Speed Up to 30fps per channel
Local Video Outputs True HD
VGA
DVI
1 display output at a time
Memory 16GB
Operating System Linux OS
Windows®10
Video Card GeForce 210 512MB
Option: DW-RV4H - 4 head HD video card*
* Available at initial order only
OS on SSD 150GB SSD (RAID1 mirrored)
Option: DW-SSD80 – second SSD for mirroring the OS *
* Available at initial order only
Storage
Max HDD Bay 6 x SATA HDD
Maximum Storage 70TB RAID 5 (60TB usable storage)
General
Accessories Keyboard
Mouse
Certification NDAA Compliance
ONVIF Conformant
TAA Compliance
Form Factor Rack mount
General Dimensions 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm)
General Warranty 5 Year Limited Warranty
Included IP licenses 4
Max video storage rate (Mbps) 600Mbps
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C)
20 ~ 90% RH
Power Consumption 400W
A UPS is recommended
Rail kit Included
Serial ports ONVIF
System Operation Graphical user interface (GUI)
USB mouse (included)
Remote via DW Spectrum IPVMS
USB interface Yes
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Ethernet Ports (Product Specification) Option: DW-R2NIC - upgrade dual 1GB NIC card OR DW-R4NIC - upgrade quad 1GB NIC card *
* Available at initial order only
Pre-loaded VMS software DW Spectrum® IPVMS
Remote Software DW Site Viewer for Apple TV
DW Spectrum Mobile App
Cross-platform - Windows®, Linux Ubuntu® and Mac®
DW Mobile Plus
Performance
Playback Functions Timeline
Calendar
Event search
Thumbnail search
Smart motion search
PTZ control ONVIF
Recording Modes Continuous
Motion detection
Motion + low res always
Object only
Object + Low res
Motion + Object
Motion + Object + Low res

Part Numbers

Model #*

Usable Storage Size**

DW-BJPR2U64T 48TB
DW-BJPR2U96T 80TB
