Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS),includes 8 camera licenses pre-installed,600 Mbps of recording throughput, Windows 10 Pro on mirrored SSD's, 750W Dual Power Supply, 2U rack-mount, 112TB usable Raid storage Raid 5, Intel Xeon Silver Processor, 16GB of memory, 3 mini display ports, Dual Network Ports Graphic System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, Keyboard, Mouse and Rail kit are included, 5 Year Onsite Next Business Day Keep Your Hard Drive Warranty.

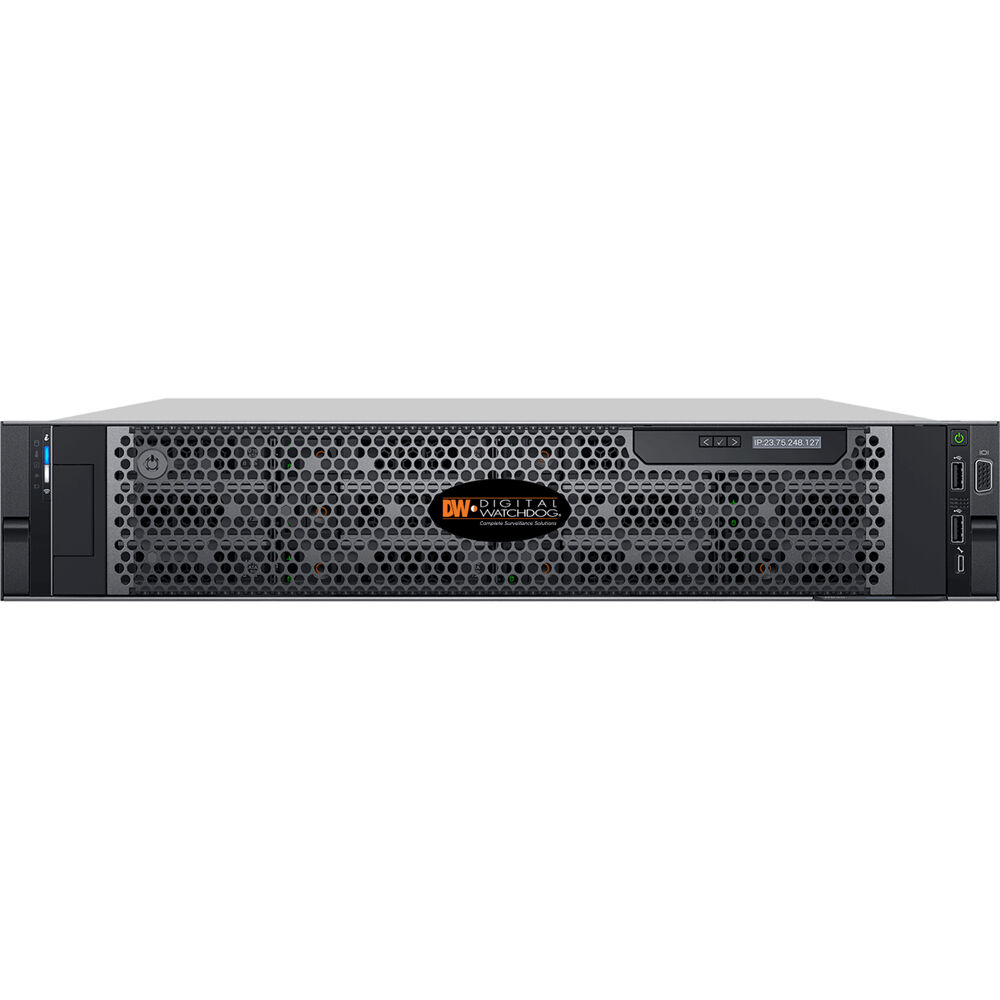

This single processor Blackjack Rack™ server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features an Intel Xeon processor, 16GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 192TB raw internal storage with RAID5 and is ONVIF conformant The server comes complete with a 5-year, on-site, Next Business Day**, Keep Your Hard Drive warranty to ensure peace of mind.
Features :
- Supports ONVIF conformant IP cameras
- Storage options 64-192TB raw internal storage with RAID5
- Hot-Swappable HDDs
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Intel Xeon processor
- Dual network ports
- Windows 10, Ubuntu Linux, Windows Server 2019 OS on NVMe SSD, RAID1
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual-stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL listed
- NDAA/TAA compliant
- 5 year warranty, next business day on-site hardware service*, keep your hard drive - *after remote diagnosis
|
Included IP licenses
|
8
|
|
|
Form factor
|
2U Rackmount
|
|
|
Operating system
|
Windows® 10
|
DW-BJRR2UxxT
|
| Linux Ubuntu® 18.04 LTS | DW-BJRR2UxxTLX | |
| Windows Server® 2019 | DW-BJRR2UxxTS | |
|
OS on NVMe SSD
|
2 x 240GB NVMe SSD (RAID1)
|
|
|
CPU
|
Intel® Xeon® Silver processor
|
|
|
Memory
|
16GB (2x 8GB)
|
|
|
Ethernet port
|
2 x 1Gigabit Ethernet (RJ45)
Option: DW-BJRR10GBN - Dell Broadcom 57412 Low Profile Dual Port 10Gb SFP+ NIC*** |
|
|
System
|
Maximum video storage rate (Mbps)
|
600 Mbps
|
|
Storage
|
Maximum HDD
|
12 x 3.5" SATA HDD
|
| Maximum storage | 192TB RAID5 | |
|
Video-out
|
Outputs
|
3 x mini DisplayPort (1 x mini-DP to true HD adapter included)
|
|
Video card
|
Nvidia Quadro P400
|
|
|
Pre-loaded VMS software
|
DW Spectrum® IPVMS
|
|
|
Remote clients
|
Cross-platform - Windows®, Linux Ubuntu® and Mac®
|
|
|
Mobile apps
|
||
|
Keyboard and mouse
|
Included
|
|
|
Rail kit
|
Included
|
|
|
Power supply
|
Dual 750W Redundant*
|
|
|
Operating temperature (ambient room temperature)
|
41°F~104°F (5°C~40°C)
|
|
|
Operating humidity
|
5~85% RH
|
|
|
Dimension (WxDxH)
|
19” x 28.25” x 3.41” (482.6 x 717.55 x 86.61mm)
|
|
| Certification | FCC and CE | |
|
Warranty
|
5 year warranty with next business day on-site hardware repair**
|
|
