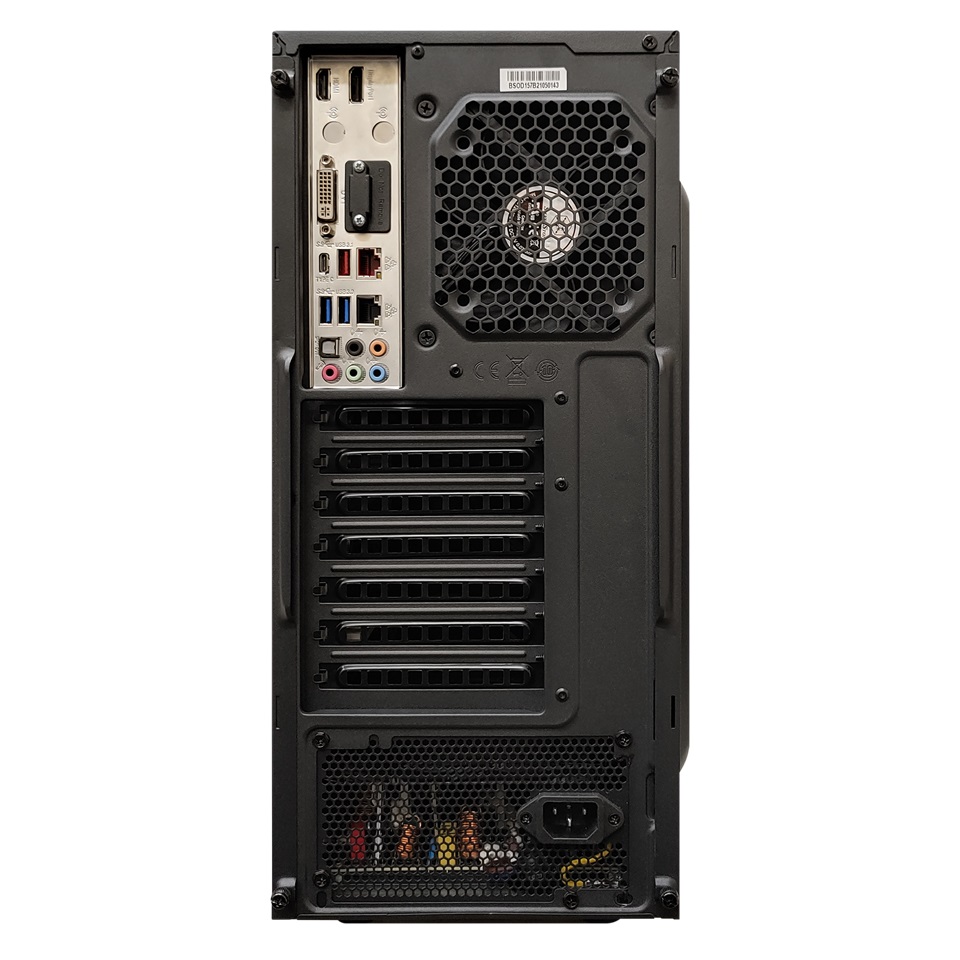

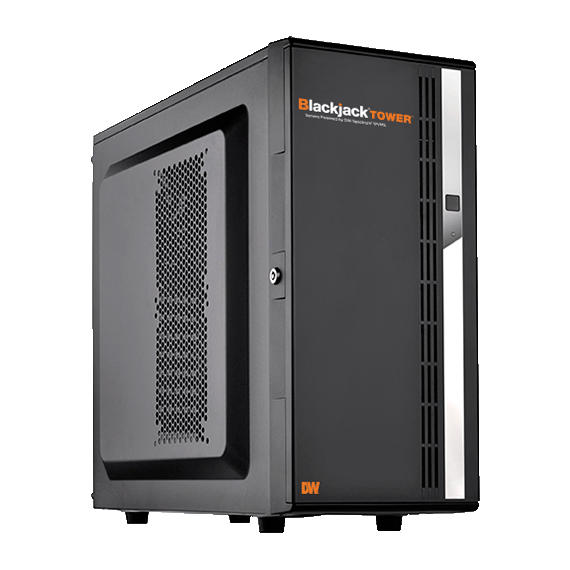

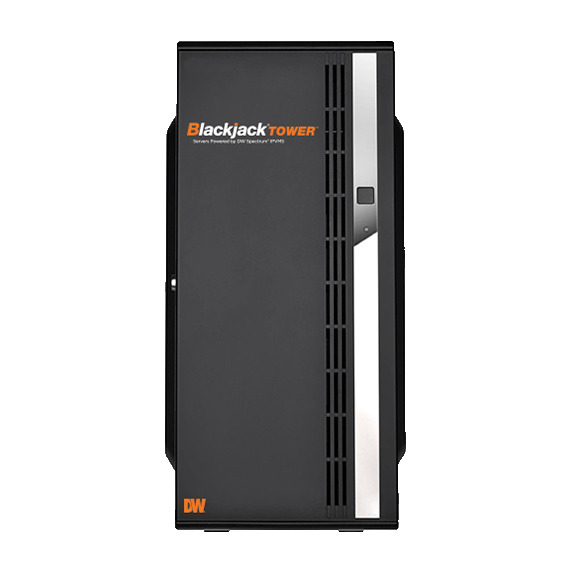

Digital Watchdog - DW-BJT71120T - Blackjack tower, Windows OS on SSD, 600Mbps throughput, Intel i7, 16GB RAM, hot-swappable, 120TB storage, UL
Part number:
DW-BJT71120T
Price:
Blackjack Tower servers are reliable and high-performance solutions for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are UL-listed and NDAA/ TAA compliant and come pre-loaded with DW Spectrum IPVMS and four complimentary recording licenses, provide up to 140TB internal storage, hot-swappable drives, are ONVIF conformant and come with a 5 year limited warranty
Features:
- Supports all ONVIF conformant IP cameras
- Up to 140TB internal storage

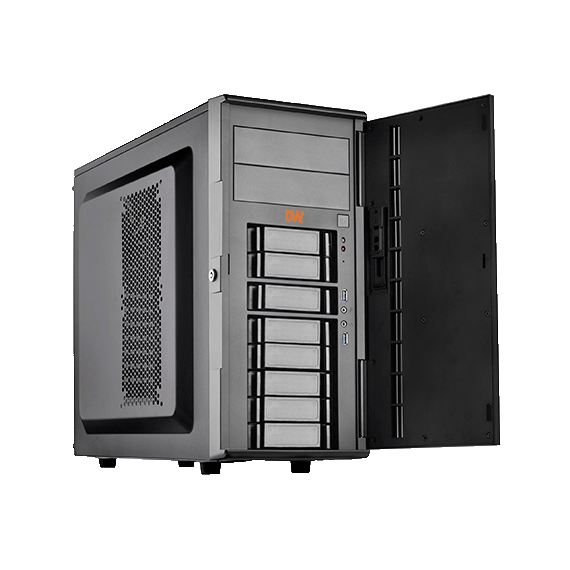

- Hot-swappable HDDs
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- OS on separate SSD
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual-stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
- 5 year limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | HD 1080p |
| Local Video Outputs | For initial configuration and server management, 1 DisplayPort, DVI, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | On-board Intel Graphics |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJT7120TLX, DW-BJT7140TLX, DW-BJT7160TLX, DW-BJT7180TLX, DW-BJT71100TLX, DW-BJT71120TLX), Windows 10 IoT Enterprise LTSC (DW-BJT7120T, DW-BJT7140T, DW-BJT7160T, DW-BJT7180T, DW-BJT71100T, DW-BJT71120T, DW-BJT71140T) |
| OS on SSD | 240GB SSD |
| Max throughput (Mbps) | 600Mbps |
| STORAGE | |
| Raw internal storage options |        |
| RAID Options | No RAID |
| Max HDD Bay | 7 x SATA HDD |
| Maximum Storage | 100TB (DW-BJT71100T, DW-BJT71100TLX), 80TB (DW-BJT7180T, DW-BJT7180TLX), 20TB (DW-BJT7120T, DW-BJT7120TLX), 40TB (DW-BJT7140T, DW-BJT7140TLX), 60TB (DW-BJT7160T, DW-BJT7160TLX), 120TB (DW-BJT71120T, DW-BJT71120TLX), 140TB (DW-BJT71140T, DW-BJT71140TLX) |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 500W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Recorder Dimensions (H X W X D) | 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Weight (barebone, HDD not included) | 19.7 lbs (8.93 kg) |
| Certification |       |
| Form Factor | Full-size Tower |
