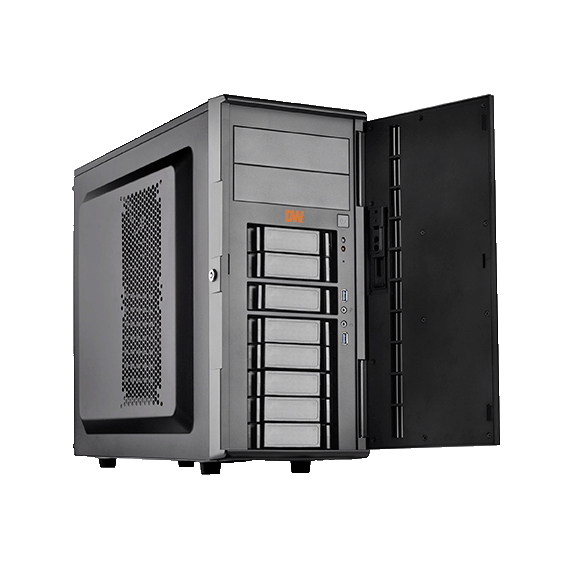

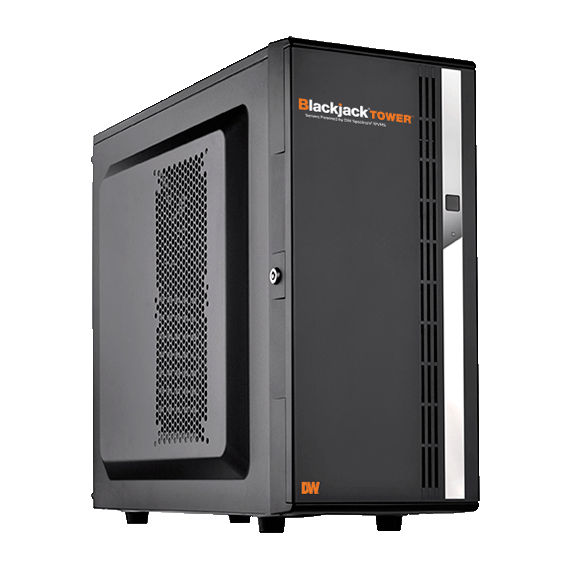

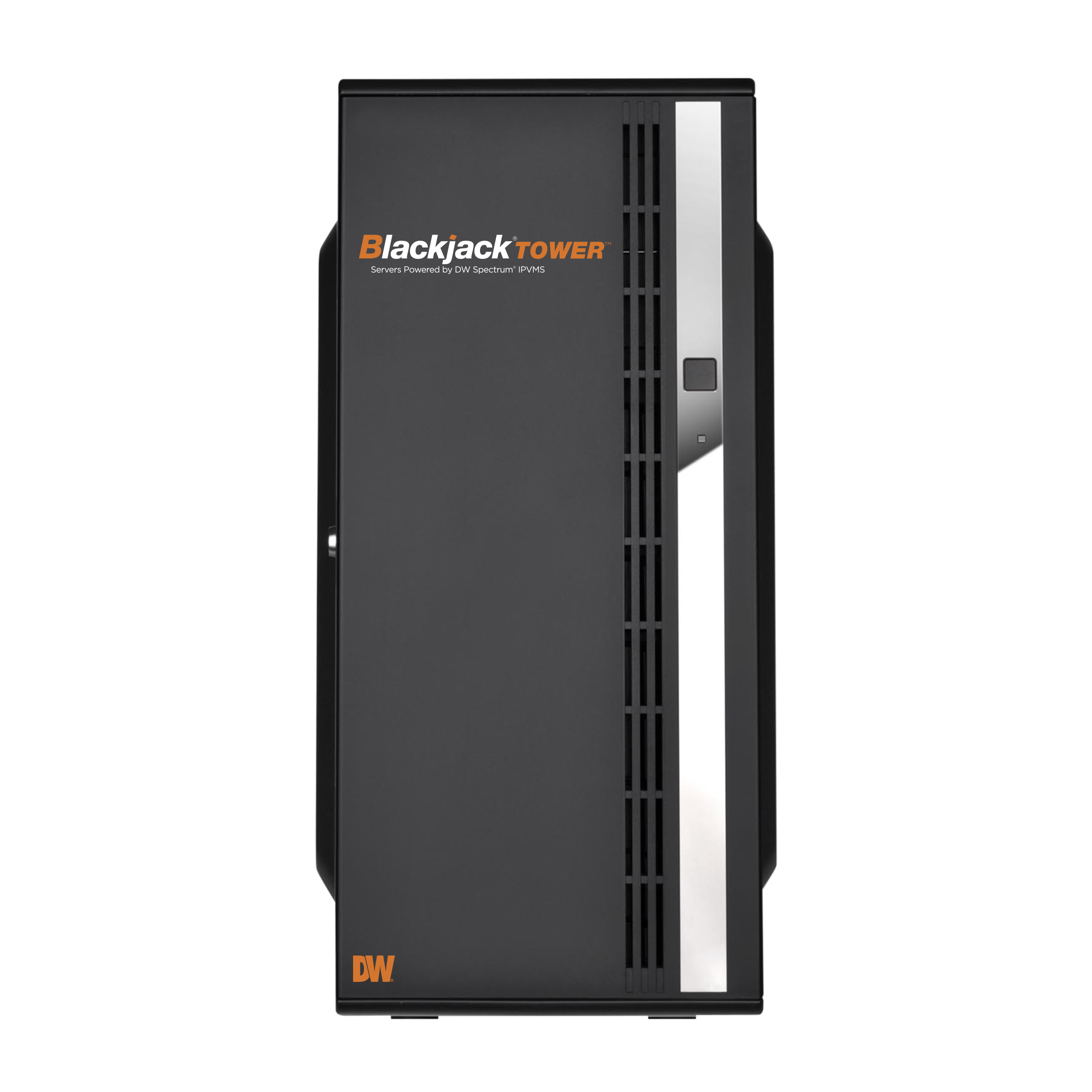

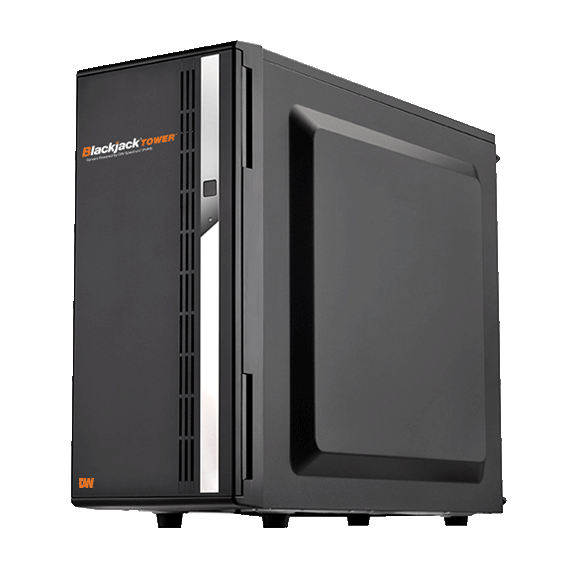

Digital Watchdog - DW-BJT7140T - Blackjack Tower, Windows OS on SSD, 600Mbps Throughput, Intel i7, 16GB RAM, Hot-swappable, 40TB Storage, UL
Part number:
DW-BJT7140T
Price:

Blackjack Tower servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10 or Linux Ubuntu OS on a separate SSD. Hardware features include an Intel 9th generation processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come preloaded with DW Spectrum IPVMS and four complimentary recording licenses, provide up to 112TB internal storage, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty. All Blackjack Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.



Features:

  • Supports all ONVIF conformant IP cameras
  • Up to 112TB internal storage
  • Hot-swappable HDDs
  • OS on SSD
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • 1x true HD, 1x DVI, 1x DisplayPort for local configuration
  • Dual network ports
  • Windows 10 and Ubuntu Linux OS options
  • Hosting DW Spectrum for setup, configuration and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
  • 5 year limited warranty
VIDEO
CPUIntel i7 processor
Display ModesUnlimited, Customizable, Sequence
Display SpeedUp to 30fps per channel
Local Video Output ResolutionHD 1080p
Local Video OutputsFor initial configuration and server management, 1 DisplayPort, DVI, True HD, 1 display output at a time
Memory16GB
Video CardOn-board Intel Graphics
Video CompressionH.264, H.265
Video Operating SystemLinux Ubuntu Desktop 20.04.5 LTS OS (DW-BJT7120TLX, DW-BJT7140TLX, DW-BJT7160TLX, DW-BJT7180TLX, DW-BJT71100TLX, DW-BJT71120TLX), Windows 10 IoT Enterprise LTSC (DW-BJT7120T, DW-BJT7140T, DW-BJT7160T, DW-BJT7180T, DW-BJT71100T, DW-BJT71120T, DW-BJT71140T)
OS on SSD240GB SSD
Max throughput (Mbps)600Mbps
STORAGE
Raw internal storage options020TB040TB060TB080TB100TB120TB140TB
RAID OptionsNo RAID
Max HDD Bay7 x SATA HDD
Maximum Storage100TB (DW-BJT71100T, DW-BJT71100TLX), 80TB (DW-BJT7180T, DW-BJT7180TLX), 20TB (DW-BJT7120T, DW-BJT7120TLX), 40TB (DW-BJT7140T, DW-BJT7140TLX), 60TB (DW-BJT7160T, DW-BJT7160TLX), 120TB (DW-BJT71120T, DW-BJT71120TLX), 140TB (DW-BJT71140T, DW-BJT71140TLX)
PERFORMANCE
Playback FunctionsCalendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ controlONVIF
Recording ModesContinuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System OperationGraphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
NETWORK
BackupNetwork backup via DW Spectrum IPVMS
Ethernet Ports2x 1G Ethernet (RJ45)
Pre-loaded VMS softwareDW Spectrum IPVMS
Network Remote SoftwareCross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App
ELECTRICAL
Power Consumption500W, A UPS is recommended
GENERAL
AccessoriesKeyboard, Mouse
Included IP licenses4
Operating Temperature and Humidity20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Recorder Dimensions (H X W X D)8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
Recording Licenses (Optional. Sold Separately)Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interfaceYes
Weight (barebone, HDD not included)19.7 lbs (8.93 kg)
CertificationCEFCCNDAA ComplianceONVIF ConformantTAA ComplianceUL Listed
Form FactorFull-size Tower
Name
Description
Size
Downloads
File
Datasheet
1mb
File
Quick Setup Guide
0.6mb
File
Blackjack Brochure
1mb
File
AE Specifications
0.1mb
