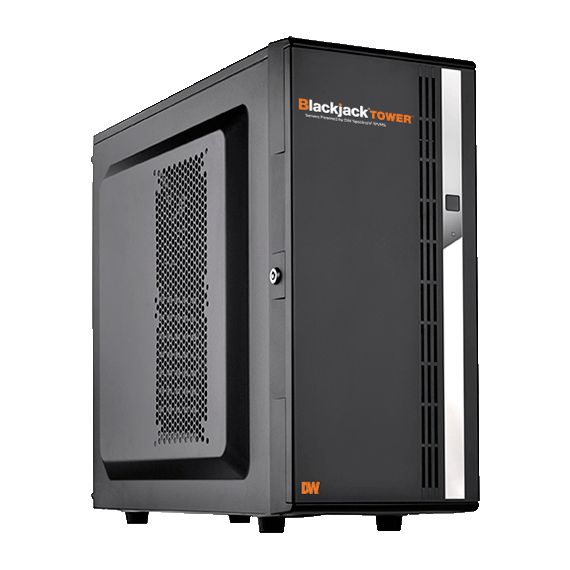

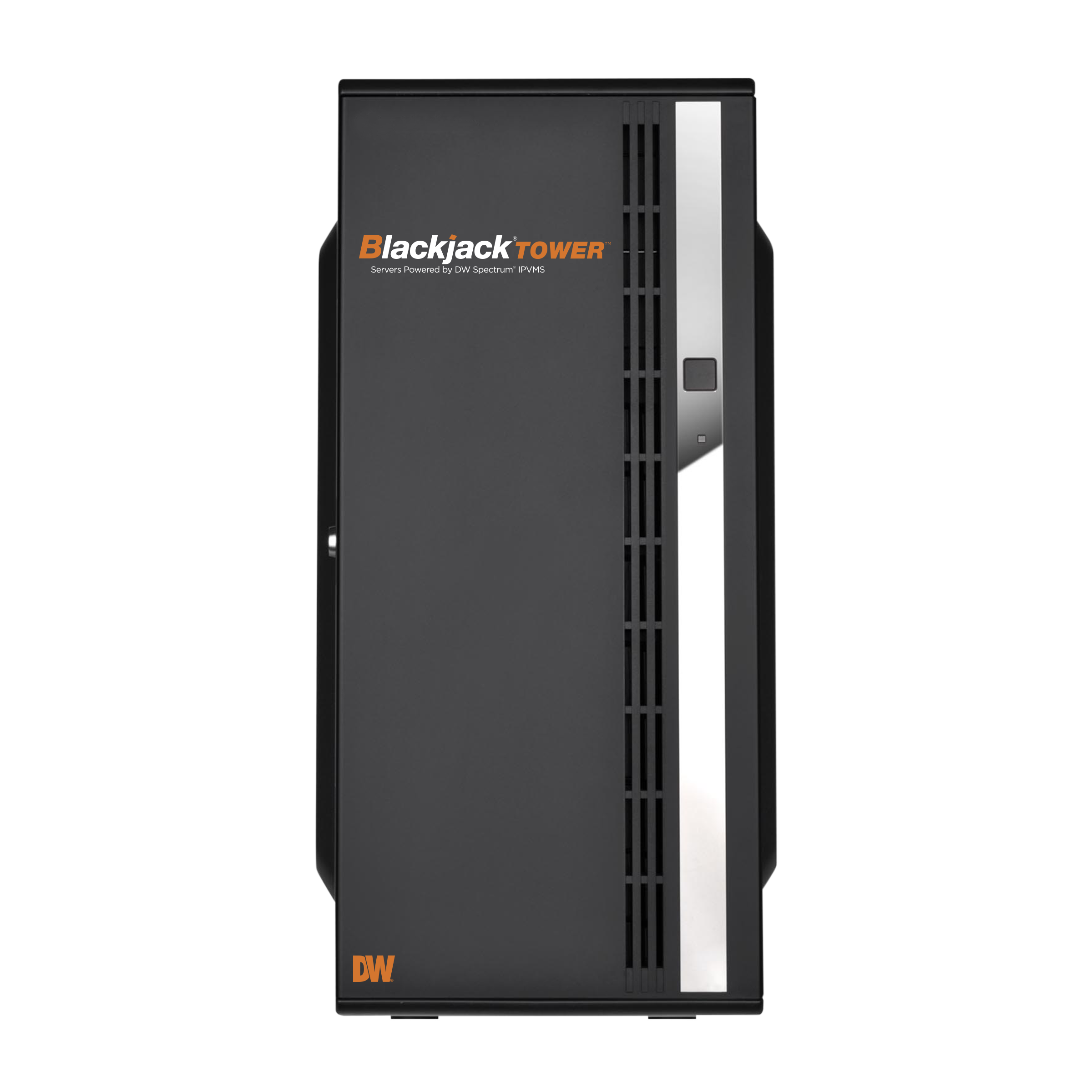

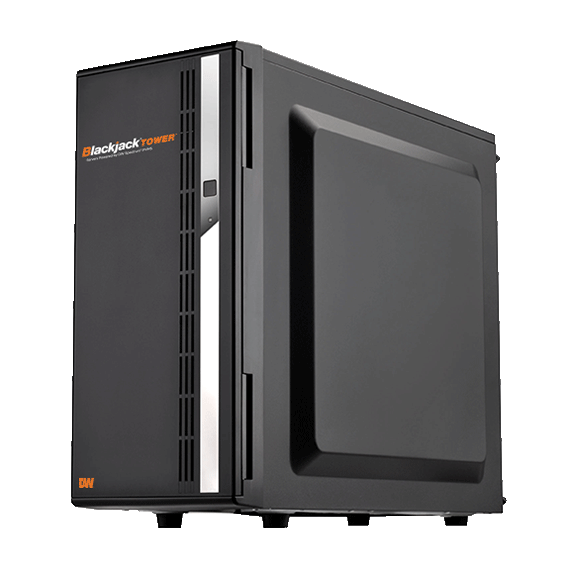

Digital Watchdog - DW-BJT7150TLX - Blackjack Tower Servers with Intel Core i7 Processor, Ubuntu Linux OS, 50TB
Part number:
DW-BJT7150TLX
Price:

Blackjack® Tower™ servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10® or Linux® Ubuntu® OS on a separate SSD. Hardware features include an Intel® 9th generation processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come preloaded with DW Spectrum® IPVMS and four complimentary recording licenses, provide up to 112TB internal storage, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty.

All Blackjack® Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.



Features:

  • Supports all ONVIF conformant IP cameras
  • Up to 112TB internal storage

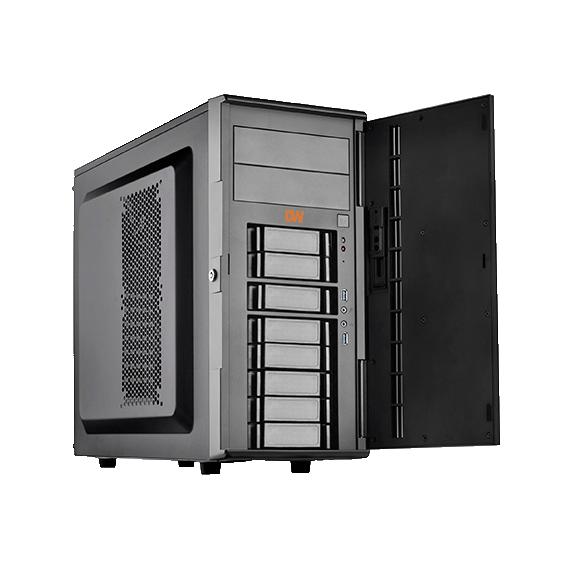

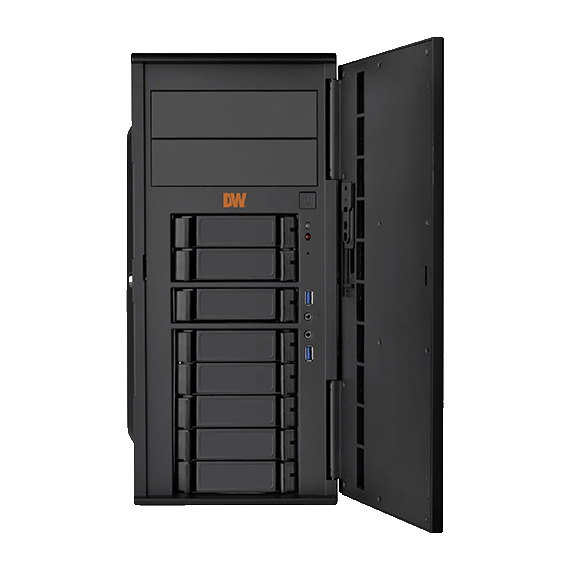

  • Hot-swappable HDDs
  • OS on SSD
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput

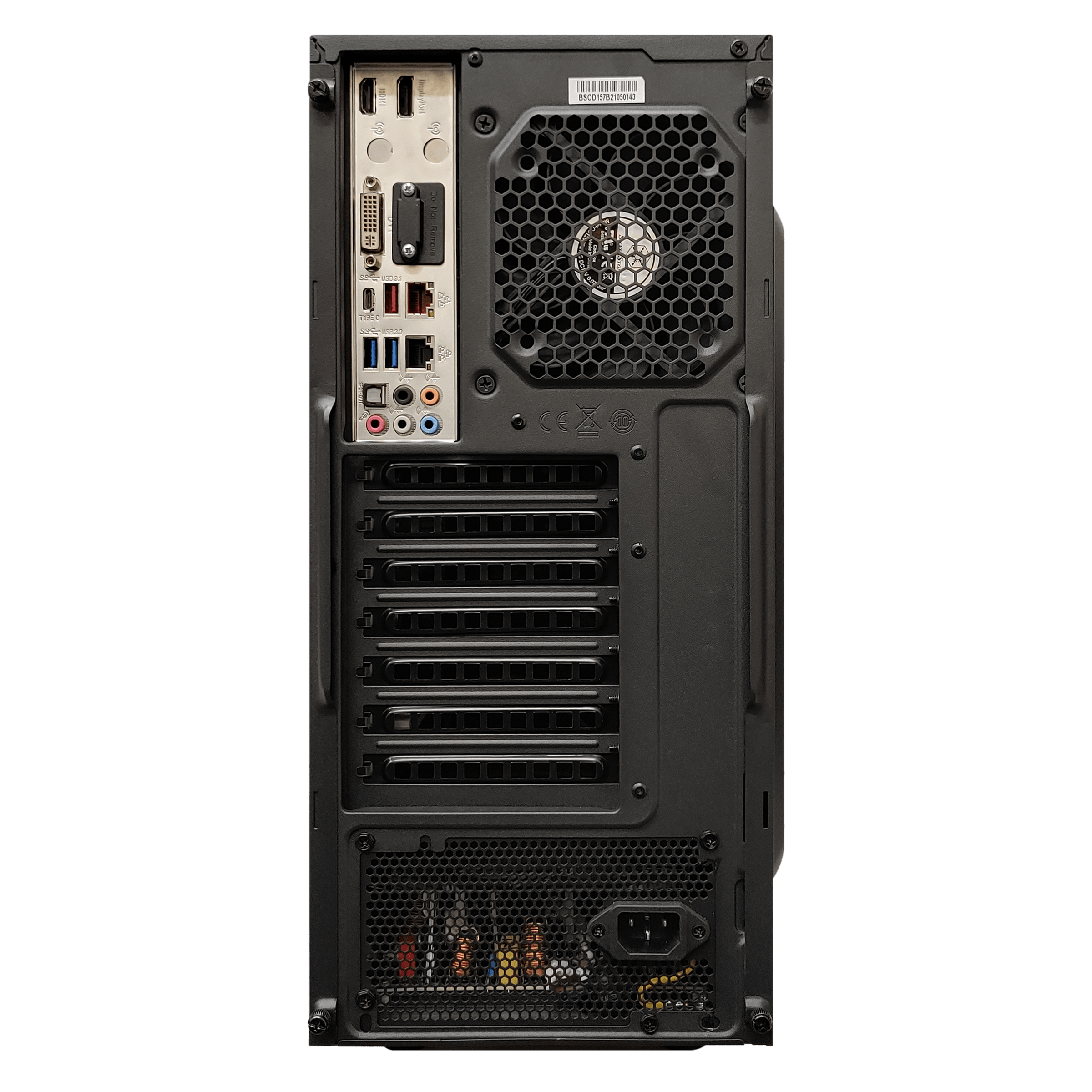

  • 1x true HD, 1x DVI, 1x DisplayPort for local configuration
  • Dual network ports
  • Windows 10® and Ubuntu® Linux® OS options
  • Hosting DW Spectrum® for setup, configuration and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
  • 5 year limited warranty

Included IP licenses

4

Form factor

Full-size tower

Operating system

Windows® 10 DW-BJT71xxT
Linux Ubuntu® DW-BJT71xxTLX
Windows Server® ---
OS on SSD 240GB SSD

CPU

9th Gen Intel® Core™ i7 processor

Memory

16GB

Ethernet port

2 x 1Gigabit Ethernet (RJ45)

System

Max video storage rate (Mbps)

600Mbps

Storage

Maximum storage drives 7 x 3.5 SATA HDD

Maximum storage

112TB
RAID options ---
Video-out

Outputs

1x true HD, 1x DVI, 1x DisplayPort, for system configuration.
Maximum 1 display output at a time.

Video card

Onboard Intel graphics

Preloaded VMS software

DW Spectrum® IPVMS

Remote clients

Cross-platform - Windows®, Linux Ubuntu® and Mac®

Mobile apps

iOS® and Andriod®
DW Site Viewer
DW Spectrum App

Keyboard and mouse

Included

Power supply

500W**

Operating temperature (ambient room temperature)

41°F~104°F (5°C~40°C)

Operating humidity

20~90% RH

Dimension (WxDxH)

8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
Other certifications UL listed, ONVIF, NDAA/TAA, CE, FCC

Warranty

5 year limited
