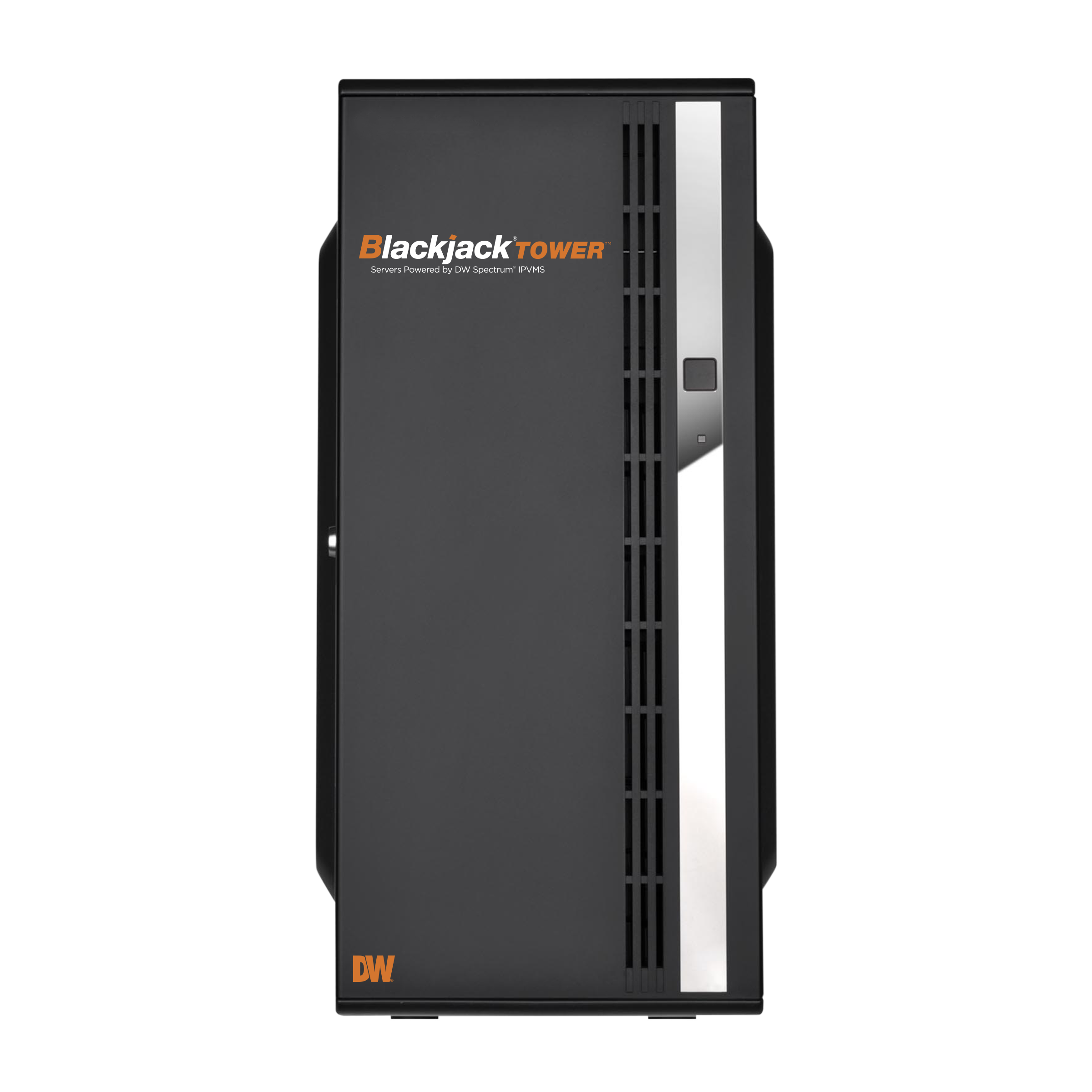

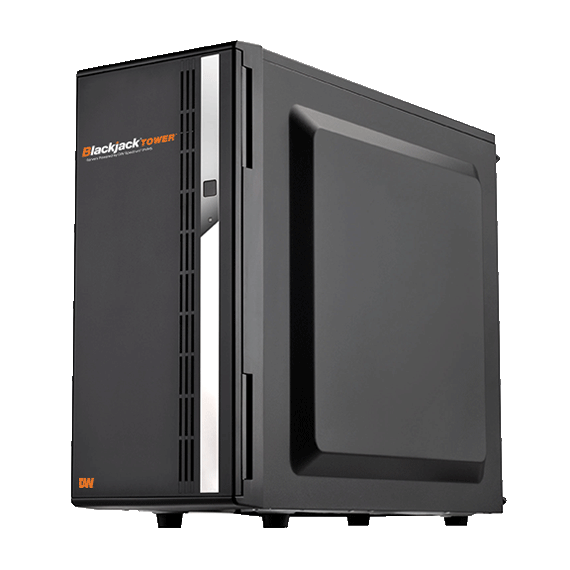

Blackjack Tower servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10 or Linux Ubuntu OS on a separate SSD. Hardware features include an Intel 9th generation processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come preloaded with DW Spectrum IPVMS and four complimentary recording licenses, provide up to 112TB internal storage, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty. All Blackjack Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.
Features:
VIDEO | |
---|---|
CPU | Intel i7 processor |
Display Modes | Unlimited, Customizable, Sequence |
Display Speed | Up to 30fps per channel |
Local Video Output Resolution | HD 1080p |
Local Video Outputs | For initial configuration and server management, 1 DisplayPort, DVI, True HD, 1 display output at a time |
Memory | 16GB |
Video Card | On-board Intel Graphics |
Video Compression | H.264, H.265 |
Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJT7120TLX, DW-BJT7140TLX, DW-BJT7160TLX, DW-BJT7180TLX, DW-BJT71100TLX, DW-BJT71120TLX), Windows 10 IoT Enterprise LTSC (DW-BJT7120T, DW-BJT7140T, DW-BJT7160T, DW-BJT7180T, DW-BJT71100T, DW-BJT71120T, DW-BJT71140T) |
OS on SSD | 240GB SSD |
Max throughput (Mbps) | 600Mbps |
STORAGE | |
Raw internal storage options | ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
RAID Options | No RAID |
Max HDD Bay | 7 x SATA HDD |
Maximum Storage | 100TB (DW-BJT71100T, DW-BJT71100TLX), 80TB (DW-BJT7180T, DW-BJT7180TLX), 20TB (DW-BJT7120T, DW-BJT7120TLX), 40TB (DW-BJT7140T, DW-BJT7140TLX), 60TB (DW-BJT7160T, DW-BJT7160TLX), 120TB (DW-BJT71120T, DW-BJT71120TLX), 140TB (DW-BJT71140T, DW-BJT71140TLX) |
PERFORMANCE | |
Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
PTZ control | ONVIF |
Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
NETWORK | |
Backup | Network backup via DW Spectrum IPVMS |
Ethernet Ports | 2x 1G Ethernet (RJ45) |
Pre-loaded VMS software | DW Spectrum IPVMS |
Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
ELECTRICAL | |
Power Consumption | 500W, A UPS is recommended |
GENERAL | |
Accessories | Keyboard, Mouse |
Included IP licenses | 4 |
Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
Recorder Dimensions (H X W X D) | 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) |
Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
USB interface | Yes |
Weight (barebone, HDD not included) | 19.7 lbs (8.93 kg) |
Certification | ![]() ![]() ![]() ![]() ![]() ![]() |
Form Factor | Full-size Tower |
