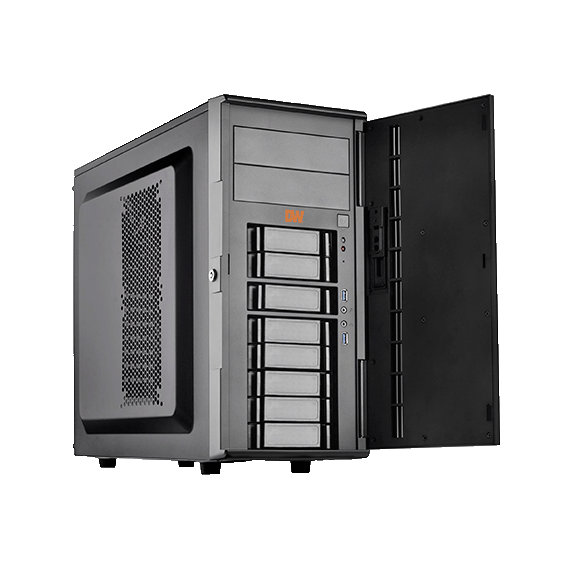

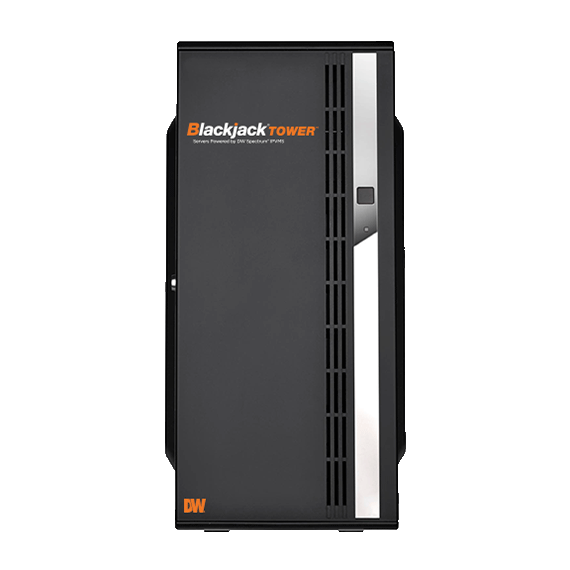

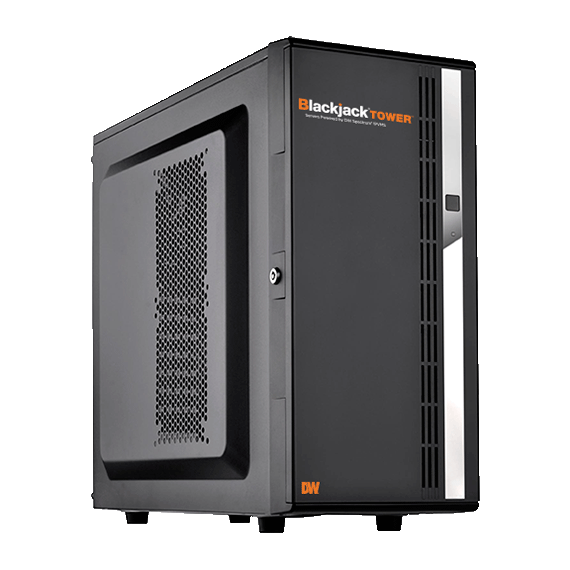

Digital Watchdog - DW-BJT7196T - Blackjack Tower full-size servers, Intel Core i7 processor Windows OS - 96TB
Part number:
DW-BJT7196T
Price:
Blackjack tower, Windows OS on SSD, 600Mbps throughput, Intel i7, 16GB RAM, hot-swappable, 96TB storage, UL
Features:
- Supports all ONVIF conformant IP cameras
- Up to 112TB internal storage
- Hot-swappable HDDs
- OS on SSD
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- 1x true HD, 1x DVI, 1x DisplayPort for local configuration
- Dual network ports
- Windows 10® and Ubuntu® Linux® OS options
- Hosting DW Spectrum® for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual-stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
- 5 year limited warranty
| VIDEO | |
|---|---|
| Compression | H.264 H.265 |
| CPU | Intel i7® processor |
| Display Modes | Unlimited Sequence Customizable |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | HD 1080p |
| Local Video Outputs | True HD DVI 1 display output at a time 1 DisplayPort For initial configuration and server management |
| Memory | 16GB |
| Operating System | Linux OS Windows®10 Linux Ubuntu® 16.04 LTS |
| Video Card | on-board Intel Graphics |
| OS on SSD | 240GB SSD |
| STORAGE | |
| Max HDD Bay | 7 x SATA HDD |
| Maximum Storage | 70TB |
| GENERAL | |
| Accessories | Keyboard Mouse |
| Certification | NDAA Compliance ONVIF Conformant TAA Compliance |
| Certification (Product Specification) | CE FCC RohS KCC |
| Form Factor | Full-size Tower |
| General Dimensions | 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) |
| Included IP licenses | 4 |
| Max video storage rate (Mbps) | 600Mbps |
| Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C) 20 ~ 90% RH |
| Power Consumption | 500W A UPS is recommended |
| RAID Options | No RAID |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI) USB mouse (included) Remote via DW Spectrum IPVMS |
| USB interface | Yes |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum® IPVMS |
| Remote Software | DW Site Viewer for Apple TV DW Spectrum Mobile App Cross-platform - Windows®, Linux Ubuntu® and Mac® DW Mobile Plus |
| PERFORMANCE | |
| Playback Functions | Timeline Calendar Event search Thumbnail search Smart motion search |
| PTZ control | ONVIF |
| Recording Modes | Continuous Motion detection Motion + low res always Object only Object + Low res Motion + Object Motion + Object + Low res |
