Blackjack® Tower™ servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10®, Windows Server® or Linux® Ubuntu® OS on a separate SSD. Hardware features include an Intel® i7 processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come pre-loaded with DW Spectrum® IPVMS and four complimentary recording licenses, provide up to 112B internal storage with RAID5 and RAID6 options, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty.
All Blackjack® Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.
Features:
Included IP licenses |
4 | |
Form factor |
Full-size tower | |
Operating system |
Windows® 10 | DW-BJTR715xxT/ DW-BJTR716xxT |
Linux Ubuntu® | DW-BJTR715xxTLX/ DW-BJTR716xxTLX |
|
Windows Server® | DW-BJTR715xxTS/ DW-BJTR716xxTS |
|
OS on SSD | 240GB SSD | |
CPU |
9th Gen Intel® Core™ i7 processor | |
Memory |
16GB | |
Ethernet port |
2 x 1Gigabit Ethernet (RJ45) | |
System |
Max video storage rate (Mbps) |
RAID5: 600Mbps RAID6: 420Mbps |
Storage |

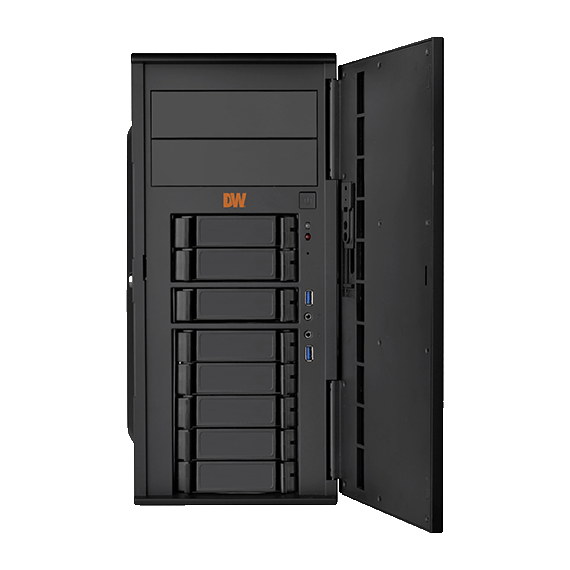

Maximum storage drives | 7 x 3.5 SATA HDD |
Maximum storage |
Maximum raw 112TB | |
RAID options | RAID5, RAID6 | |
Video-out |
Outputs |
1x true HD, 1x DVI, 1x DisplayPort, for system configuration. Maximum 1 display output at a time. |
Video card |
Onboard Intel graphics | |
Preloaded VMS software |
DW Spectrum® IPVMS | |
Remote clients |
Cross-platform - Windows®, Linux Ubuntu® and Mac® | |
Mobile apps |
iOS® and Andriod® DW Site Viewer DW Spectrum App |
|
Keyboard and mouse |
Included | |
Power supply |
500W** | |
Operating temperature (ambient room temperature) |
41°F~104°F (5°C~40°C) | |
Operating humidity |
20~90% RH | |
Dimension (WxDxH) |
8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) | |
Other certifications | UL listed, ONVIF, NDAA/TAA, CE, FCC | |
Warranty |
5 year limited |
