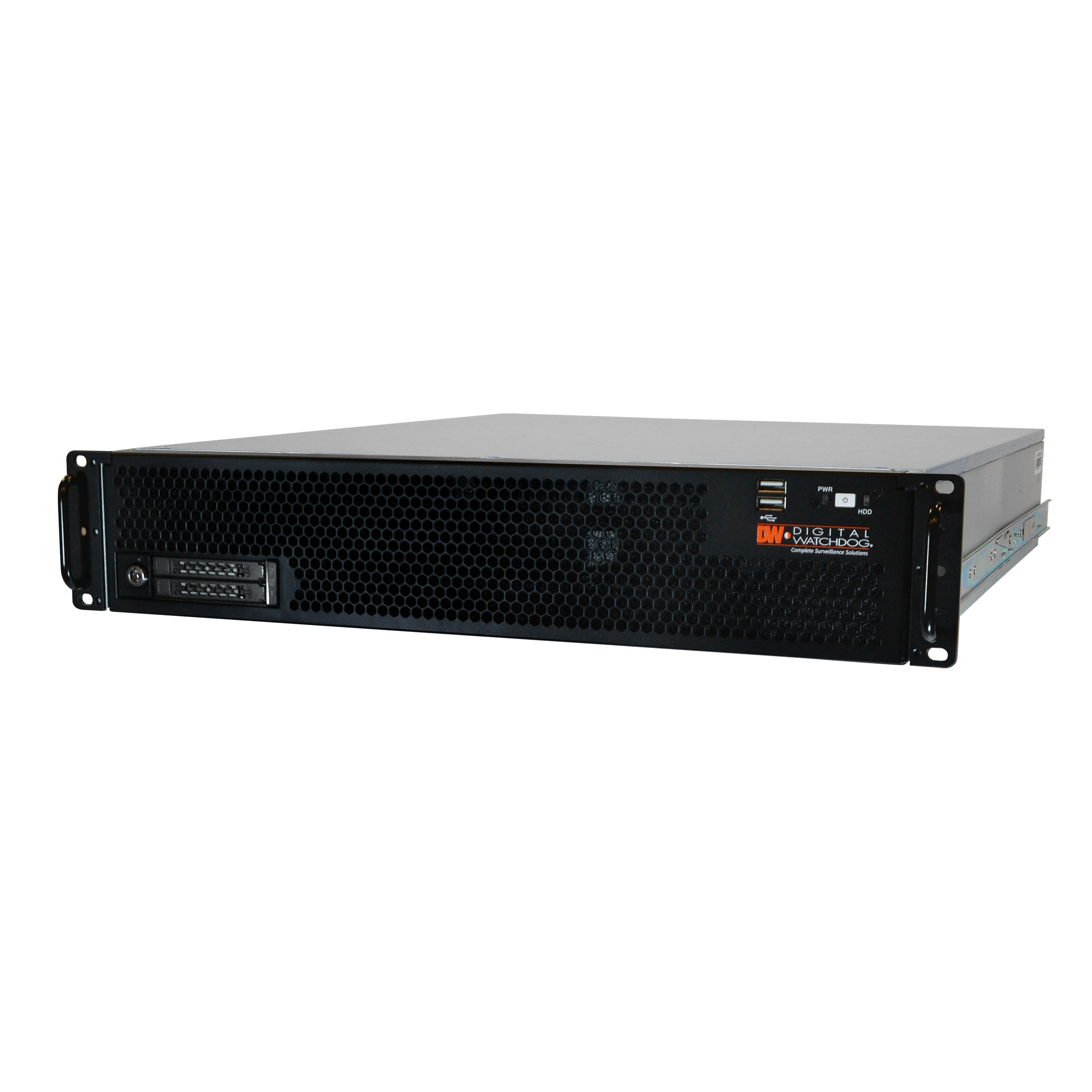

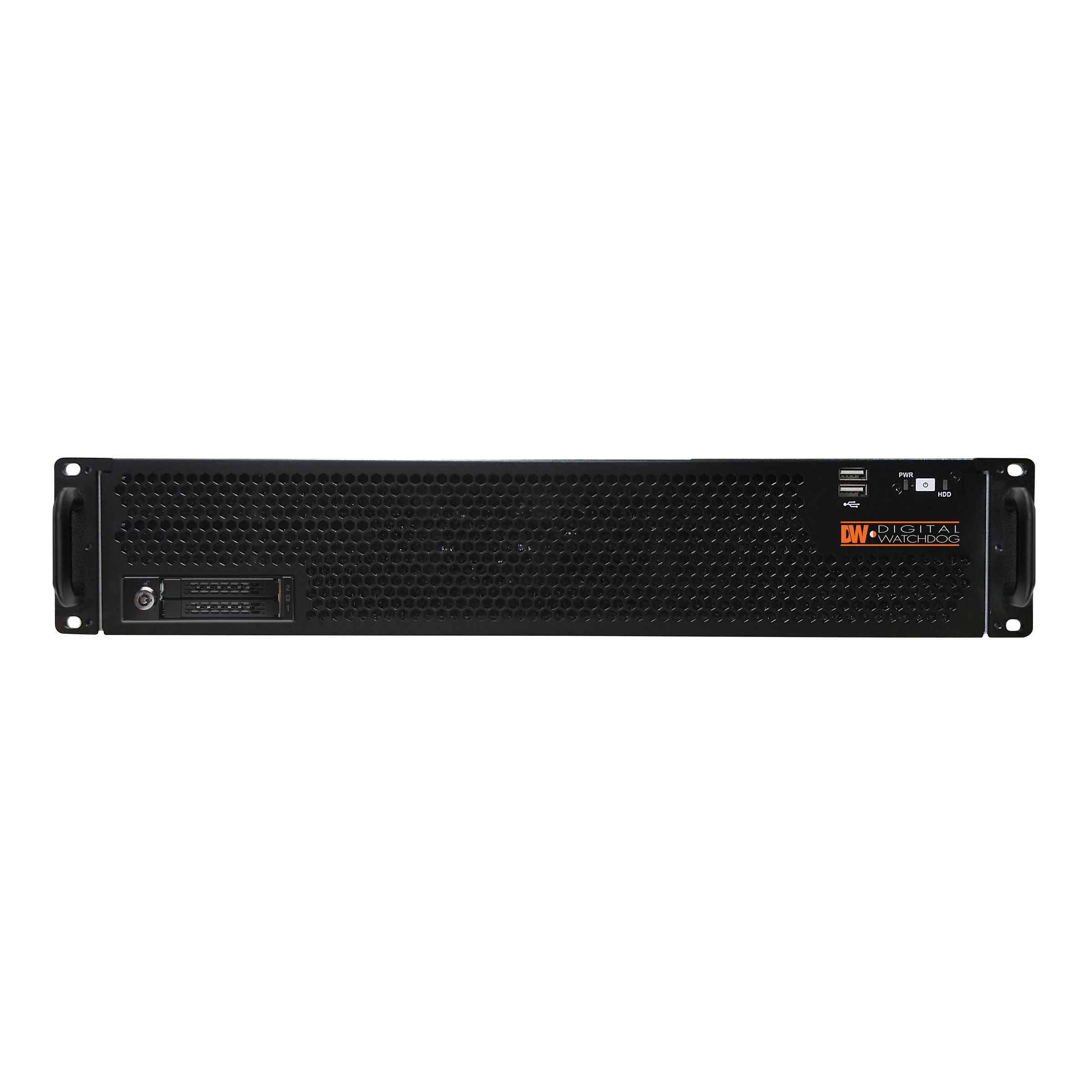

Blackjack X-Rack NVR Powered by DW Spectrum, includes 8 camera licenses pre-installed, Windows Server 2016 OS on mirrored SSD’s, Redundant Power Supply, 2U rack-mount, Storage Options with Blackjack NAS Rack Mount with up to 560TB of Storage, Capable of managing 200 1080P Cameras at 30fps, 1200 Mbps Throughput Intel Xeon Processor with 8 Cores, 32G Memory, Dual 10GB Network Ports, True HD and DVI Output, Graphic System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, Keyboard, Mouse and Rail kit are included, 5 Year Warranty. NOTE: X-Rack hosts the DW Spectrum client for setup and configuration only. We suggest a Blackjack Client workstation for monitoring.

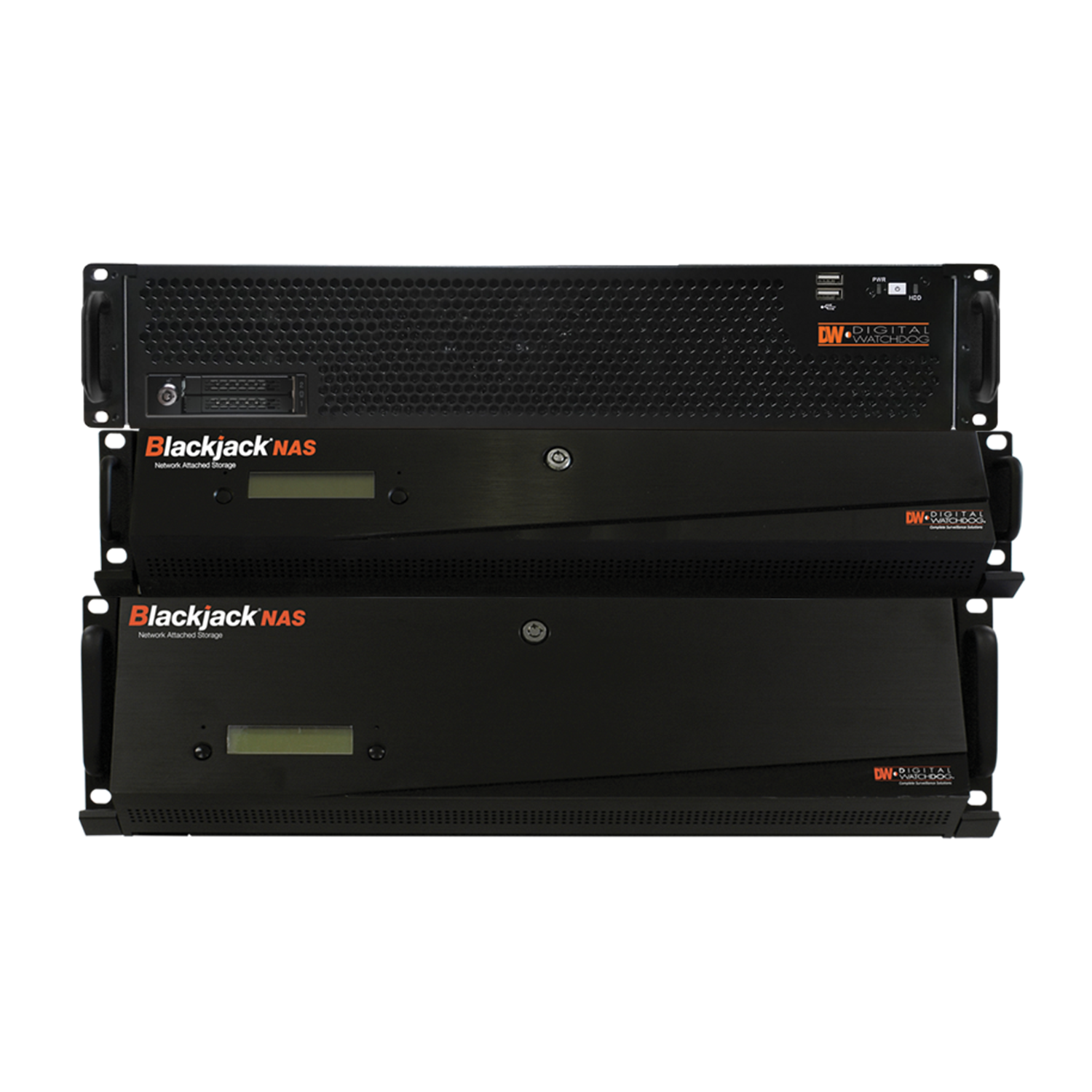

Blackjack® X-Rack™ servers can manage single- and multi- sensor IP cameras of any resolution, with an equivalent capacity of up to 200 2.1MP cameras at 30fps and a maximum of 1200Mbps throughput. By moving local storage to a dedicated NAS unit, the server can outperform any competing model. Standard features include an Intel® Xeon Processor, Windows® Server 2016 OS, 2 x 10Gb NIC cards and removable hot swappable SSD. Blackjack® X-Rack™ servers are designed to connect up to 4 Blackjack® NAS devices, providing up to 560TB for recording and backup. It comes with our 5 year warranty.
- Supports all ONVIF conformant IP cameras
- Storage options with Blackjack® NAS™ Rack with up to 560TB Storage
- OS on hot-swappable SSD bays with lock, RAID1
- Redundant power supply
- Record and manage single- and multi-sensor IP cameras of any resolution up to 200 2.1MP cameras at 30fps and a maximum of 1200Mbps throughput (recording on NAS device)
- Dual 10GB network ports
- Windows Server 2016® OS on mirrored SSD drives
- USB interface
- Hosting DW Spectrum® for setup and configuration
- One-time recording license charge, fully transferable between cameras and encoders
- Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 years warranty
|
Maximum IP cameras
|
200 (2.1MP/1080p @30fps, with high recording quality)
|
|
|
Included IP licenses
|
8
|
|
|
Form factor
|
2U Rackmount
|
|
|
Operating system
|
|
Windows Server 2016
|
|
OS on SSD
|
2x SSD (RAID1 mirrored), hot-swappable bays with lock
|
|
|
CPU
|
Intel® Xeon® processor with 8 cores
|
|
|
Memory
|
32GB DDR4 ECC
|
|
| Option: DW-MEM32GX - 32GB (2x 16GB) memory upgrade kit* | ||
|
Ethernet port
|
2 x 10Gigabit Ethernet (RJ45)**
|
|
|
Option: DW-R10NIC - secondary 10Gbps RJ45 port *
|
||
|
System
|
Max video storage rate (Mbps)
|
1200 Mbps
|
|
Storage
|
Max. DW-BJNAS RACK Connections
|
4 (up to 560TB)
|
|
Video-out
|
Outputs
|
True HD output or DVI***
|
|
Resolution
|
HD 1080p
|
|
|
Pre-loaded VMS software
|
DW Spectrum® IPVMS
|
|
|
Remote clients
|
Cross platform - Windows®, Linux Ubuntu® and Mac®
|
|
|
Mobile apps
|
iOS® and Andriod®
|
|
|
Keyboard & mouse
|
Included
|
|
|
Rail kit
|
Included
|
|
|
Power supply
|
Dual 380W Redundant****
|
|
|
Operating temperature (ambient room temperature)
|
50°F~80°F (10°C~27°C)
|
|
|
Operating humidity
|
20~60% RH
|
|
|
Dimension (WxDxH)
|
17.32" x 26" x 3.5" (439.9 x 660.4 x 88.9 mm)
|
|
|
Warranty
|
5 years
|
|
