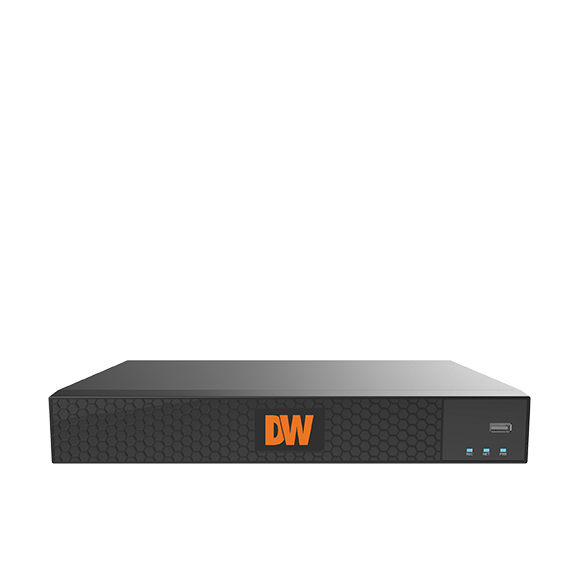

Digital Watchdog - DW-COVA42T - COVA 4-channel PoE Cloud-Optimized Video Archiving NVR
- • Complete installation in minutes!
- • Setup and camera configuration via the DW Mobile Plus App. Skip the local monitor!
- • Record and manage single-sensor IP cameras at real-time 30fps up to 4K, with 80Mbps maximum throughput
- • 4GB myDW cloud storage for Clip Share included
- • Includes 12 months subscription to myDW services
- • Local power for up to 4 IP cameras via resident PoE switch makes the installation seamless and efficient.
- • Remote user and event management via myDW Cloud Video Services
- • Upload events to myDW via Clip Share to address critical events quickly and efficiently.
- • Up to 10TB local storage
- • Compatible with ONVIF cameras
- • Live, playback and video archiving via the web client
- • Static and dynamic live camera views
- • Event notifications and system health reports via myDW
- • IdentiSee enables the search of individuals and vehicles that AI cameras have detected.
- • Audio communications from supported IP cameras
- • NDAA-compliant for federal and government projects
- • Full 5-year warranty
| Hardware | |
|---|---|
| Display Modes | 1, 4 |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768, 1280x1024, 1920x1080 (1080p), 3840×2160 (4K) |
| Local Video Outputs | 1x True HD output, 1x VGA output 1 display output at a time for initial configuration and server management |
| Max Supported Recording Resolution | 4K (3840×2160) |
| PoE Type | 100Mbps, 802.3at |
| Video Compression | H.264, H.265 |
| Max throughput | 80 Mbps |
| Input Channels | 4 Channels, 4 PoE channels |
| MyDw Monitoring Software | |
| Features | Cloud-Based VMS, CVV (Camera View Verification), Events and system health notifications, Firmware updates, Remote PTZ control, Remote system reboot, System management, User management, Video share and cloud upload |
| Monitoring | Live monitoring, Remote file backup, Remote playback |
| Remote Web Client | |
| Additional Features | Firmware updates, Remote PTZ control, Remote system reboot, System management |
| Monitoring | Live monitoring, Remote file backup, Remote playback |
| Playback | 30fps per channel, Up to 4-channels |
| Search Options | Calendar (date and time), Event search, IdentiSee™, Timeline |
| Storage | |
| Raw internal storage options | 2TB, 4TB, 6TB, 8TB, 10TB |
| RAID Options | No RAID |
| Max HDD Bay | 1 x SATA HDD |
| Maximum Storage | 2TB (DW-COVA42T), 4TB (DW-COVA44T), 6TB (DW-COVA46T), 8TB (DW-COVA48T), 10TB (DW-COVA410T) |
| VMS Features | |
| Performance Features | PoE built-in |
| Playback Speed | x1, x2, x4, x8, x16, x32, x64, x99 |
| PTZ Control | ONVIF |
| Recording Modes | Continuous, Event, Scheduled |
| Recording Resolution and Recording Rate | Up to 3840×2160 (4K): total 120fps |
| System Operation | Graphical user interface (GUI), Remote via myDW, Remote via web client, USB mouse (included) |
| Network | |
| Backup | Over the network, video share via myDW cloud-based VMS |

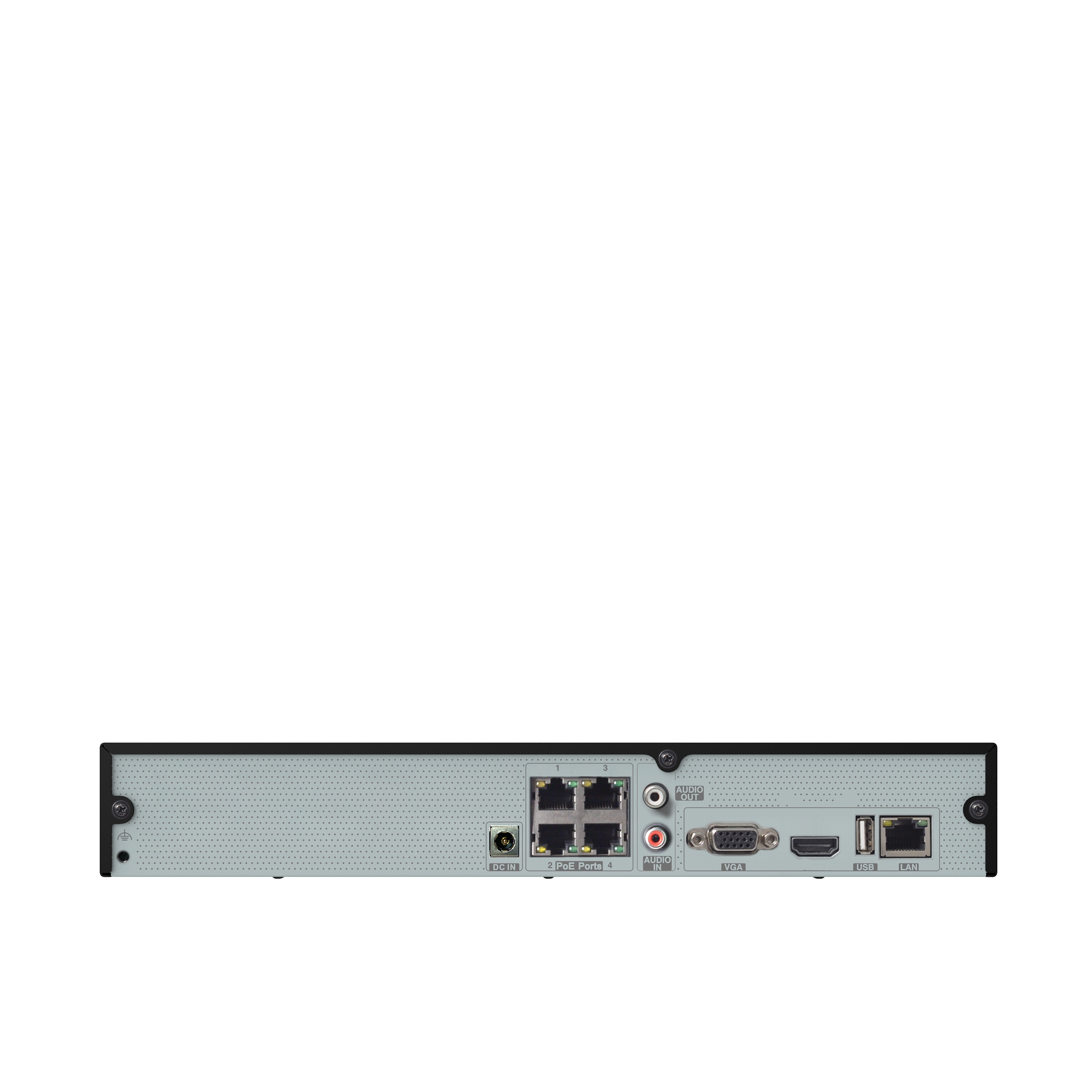

| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network, USB |
| IP | IPv4, IPv6 |
| Max Stream Connections | Live: up to 16CH, Playback: up to 4CH |
| Network Web Viewer | Google Chrome® browser, Microsoft Edge® browser, Mozilla Firefox® browser |
| Protocol | 802.1x, DHCP, DNS, HTTP, NTP, ONVIF, RTCP, RTP, SMTP, Static fixed IP, TCP/IP, UDP, WebSocket |
| Remote Client | DW Mobile Plus, myDW |
| Electrical | |
| Power Consumption | A UPS is recommended, ≤ 10W (without HDD) |
| Power Requirements | 1.25A, 48V DC, 2.5A |
| Total PoE Power Budget | ≤ 48W |
| General | |
| Accessories | Mouse |
| Audio Codec | G.711(U/A) |
| Operating Temperature and Humidity | 10~90% RH, 14 ~ 122°F (-10 ~ 50°C) |
| Recorder Dimensions (H x W x D) | 1.77" x 11.81" x 9.8" (45 x 300 × 249mm) |
| USB Interface | Yes |
| Warranty | 5 Year Warranty |
| Certification | NDAA, ONVIF Conformant |
| Form Factor | Embedded |
The DW-COVA4xT 4-channel PoE Cloud-Optimised Video Archiving NVR allows for a complete installation in minutes. Setup and camera configuration can be done via the DW Mobile Plus App, so a local monitor is not required. It can record and manage single-sensor IP cameras at a resolution of up to 4K with a maximum throughput of 80 Mbps in real time, and supports up to 10 TB of local storage. It also includes 4 GB of myDW cloud storage and a 12-month subscription to myDW services.
Seamless installation is enabled by local power for up to four IP cameras via the resident PoE switch, while myDW Cloud Video Services handle remote user and event management, including Clip Share for the rapid upload of critical events. The system is compatible with ONVIF cameras and provides live viewing, playback and archiving via the web client, offering both static and dynamic views. Event notifications and system health reports are delivered through myDW. Additional features include IdentiSee for searching for individuals and vehicles detected by AI, audio communication from supported IP cameras and NDAA compliance for federal and government projects. The system is backed by a full five-year warranty.
