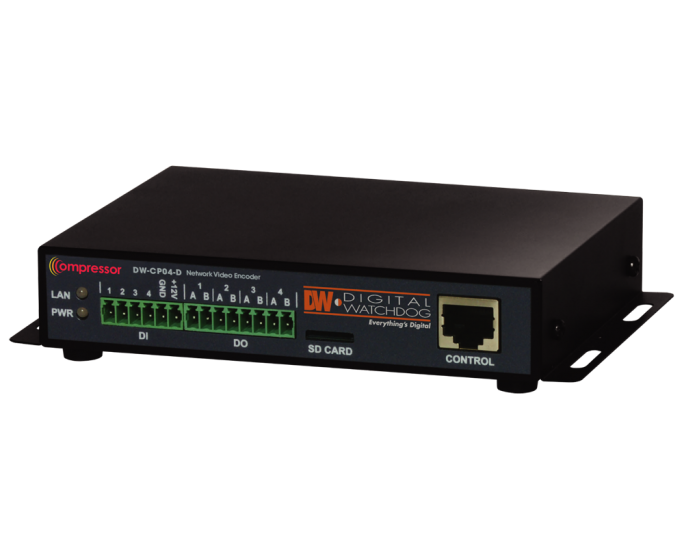

Digital Watchdog - DW-CP04 - Compressor™ 4-Channel IP Signal Encoder
The "Compressor" Hybrid Video Transmitter / Encoder, ONVIF Profile S, 4ch Video and 2-Way Audio, 120fps @ D1, Dual Codec (H.264/ MJPEG) with Single Stream, Motion Detection, Micro SD Card Interface RS-232/ RS-485 PTZ Control, • PSIA (v1.0) Conformant, Search and Playback from Software Interface, DW Spectrum Compliant
Part number:
DW-CP04
Price:
The CP-04 is an Analog to IP signal compressor, converting up to 4 analog cameras into IP signal at a maximum of 120fps at D1 resolution. The Compressor offers strong features such as Two-Way Audio, PTZ control, Micro SD Card for local backup, Intelligent motion detection, and Single Streaming with Dual Codec. The Compressor is a perfect solution for applications that have both analog and network surveillance solutions, and are looking to get the most out of both platforms.
- Audio Input/ Output: 1 Audio input, 1 Audio output
- Central Management Software: DW Spectrum IPVMS
- Codecs & Streams: H.264, MJPEG
- Digital Zoom: Live and Playback
- Firmware Upgrade: Auto via FTP Server and Manual
- Multiple Recording Schedules: yes
- OnVIF Conformant
- Panic Recording
- Remote Software Platforms: Windows, Linux, and MAC
- Sensor Input/ Output: 4 Sensor inputs 4 Alarm outputs
- Simple & Free DDNS: yes
- Special Search Options: Convert analog video to IP signal at D1 resolution, Rs-485 and RS-232 command ports, local micro SD card for backup, periodical notifications to FTP server with screen shots
- Watermark Verification [Digital Signature Authentication]
- Web- Based Client with Multi- User Access: Live, PTZ Control, Playback, Remote Configuration
- PTZ: Full analog PTZ camera control via RS-485 and RS-232 ports
- Back Up: Remote Backup using the DW Spectrum IPVMS
- Motion Detection
- Recording Mode: Scheduled, Motion, Event
- E-mail and Text Event Notifications: E-mail & FTP notifications with screen shot attached
- Works with DW Spectrum™ IPVMS recording License (needs qty 1 DW-SPCP04LSC004, Sold Separately)
- 2 years warranty
Environmental* |
|
|
|
Power Requirements
|
|
12V (1A) [AC100~240V, 50/60Hz, 300mA]
|
|
Power Consumption
|
|
DC12: 600mA
|
|
Operating Temperature
|
|
-10 ~ 50°C (14 ~ 122°F)
|
|
Operating Humidity
|
|
Less than 90% (Non-Condensing)
|
|
Dimensions
|
|
5.82 X 4.64 X 0.98 in (148 x118 x25mm)
|
|
Weight
|
|
0.55lb (0.25Kg)
|
|
Available Models
|
|
DW-CP04
|
Network* |
|
|
|
Client Monitoring Software
|
|
DW Spectrum (Synergy S/W)
|
|
IP Protocols
|
|
HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPNP
|
|
OnVIF Conformant
|
|
|
|
Transmission Speed- Live
|
|
120/100fps @ D1 (NTSC/ PAL)
|
|
Web Viewer Operations
|
|
Live, PTZ Control, Playback, Remote Configuration
|
|
Web Viewer Platforms
|
|
Internet Explorer 6.0 or higher. Minimum Client specifications: Windows XP, or higher, Pentium4, 2GHz, 2G(RAM), Video Card(256MB RAM, 1024x768)
|
|
Network Connection
|
|
Ethernet (1 x Megabyte 10/100 Base-T)
|
Performance* |
|
|
|
Firmware Upgrade
|
|
USB Drive, Network Upgrade, IP Installer software
|
|
Playback Functions
|
|
Fast Forward, Fast Rewind, Frame-by-Frame Forward, Frame-by-Frame Rewind
|
|
Playback Rate
|
|
120fps
|
|
Playback Resolution
|
|
D1 Resolution
|
|
Recording Mode
|
|
Scheduled, Motion, Event
|
|
Recording Rate
|
|
120fps @ D1 Resolution
|
|
Recording Resolutions
|
|
120fps @ D1 Resolution
|
|
Search Modes
|
|
Date, Time, Event Preview
|
|
Special Features
|
|
Alarm Management, alarm and periodic notifications to FTP Server
|
|
Compression Type
|
|
H.264, MJPEG
|
|
Pre Alarm Recording
|
|
yes
|
|
Digital Zoom
|
|
Live and Playback
|
|
External Export Devices
|
|
Supports Micro SDHC for onboard storage ( up to 32 GB ) * SD Card not included
|
Video* |
|
|
|
Audio Codec
|
|
8bit G.711, 8Khz, 8KByte/sec
|
|
Display Modes
|
|
Single Channel and Quad display modes
|
|
Maximum Supported Cameras
|
|
Up to 4 analog cameras
|
|
Serial Interface
|
|
1x RS-485 1x RS-232
|
|
Operating System
|
|
Embedded Linux
|
|
Video Input
|
BNC
|
4 BNC Input
|
|
Sensor Input
|
|
4 Sensor Inputs
|
|
Sensor Alarm Output
|
|
4 Alarm Outputs
|
|
Audio Input (RCA)
|
|
1 Channel Input
|
|
Audio Output
|
|
1 Channel Output
|
| Warranty | 2 years |
