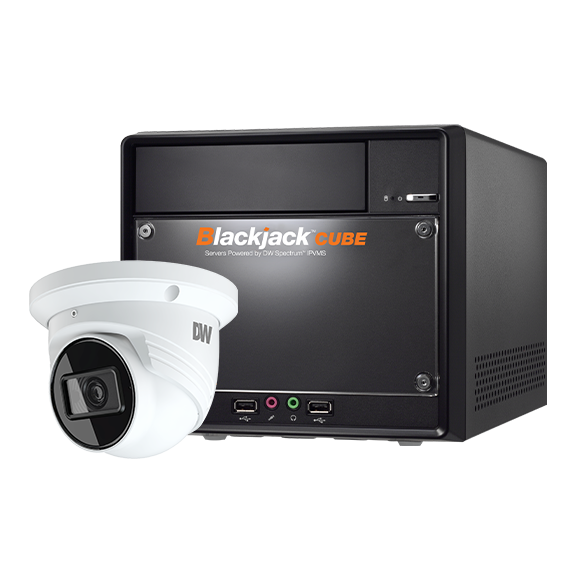

Digital Watchdog - DW-CUVTKIT616 - Blackjack Cube 6TB with 16x vari-focal lens turret IP cameras kits
Part number:
DW-CUVTKIT616
Price:
The Blackjack Cube server can record and manage single-sensor IPcameras of any resolution, with a maximum of 360Mbps throughput.The hardware includes DVI-D/DVI-I outputs, Windows 10 IoT OS, anddual network card. The server is ONVIF conformant and is availablewith 3-18TB HDD and 5 year limited warranty.
These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 30fps. The IP67-ratedturret camera features a 2.8~12mm vari-focal lens with motorizedzoom and a 360° camera gimbal for absolute view adjustment.Added intelligence includes line crossing, perimeter intrusion, videotampering detection and object classification. All MEGApix camerasare ONVIF conformant, assuring their successful integration with anyopen platform solution on the market.
Features :
- Kits w/ 3TB, 6TB and 9TB of storage capacity.
- Supports all ONVIF conformant IP cameras.
- Record/manage IP cameras to 360Mbps throughput.
- Dual Gb5 NICs / Windows IoT OS / Includes keyboard & mouse.
- Kits w/ 4, 8, or 16turret IP cameras with 2.8~12mm vari-focal lens.
- Line crossing, perimeter intrusion and video tampering analytics.
- True WDR, Smart IR, H.265. H.264, MJPG
DWC-MT95WiATW Specifications
| Environmental | |
|---|---|
| Compliance | NDAA Compliance CF FCC RoHS ONVIF |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | 1 input 1 microphone built-in *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. |
| Image | |
| Image Resolution | 5MP 5MP 1/2.7" CMOS sensor |
| Signal technology | HD-TVI |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Advanced Lens Features | Motorized zoom Auto focus |
| Focal Length | 2.8mm ~ 12mm |
| Horizontal Field of View (HFOV) | 95.1° ~ 30° |
| IR Distance | 164" range Smart IR™ |
| Lens Type | Vari-focal Lens |
| Minimum Scene Illumination in color | 0.01 lux (color) 0.0 lux (B/W) |
| Mechanical | |
| Housing | Turret |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Mechanical Dimensions | 4.66" x 3.58" (118.6 x 91 mm) 5.16" x 4.13" (131.1 x 105 mm) |
| Weight | 1.45 lb (0.66 kg) |
| Operational | |
| 3D digital noise reduction | 3D DNR |
| Auto gain control | Auto |
| Camera Analytics | Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) "Object Classification (Differentiate Humans from Objects)" |
| Day and night | Auto day/nighy Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Email FTP server |
| Operational features | True D/N |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| General | |
| General Warranty | 5 Year Warranty |
| Power Consumption | DC12V: max 7.0W, 583.3mA PoE: max 7.0W |
| Power Requirements | 12 V DC PoE IEEE 802.3af Class 3 (Adapter not included) |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Protocol | 802.1x DDNS DHCP DNS FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP UPnP |
| Security | IP filtering MAC filtering Digest authemtication (ID/PW) |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | DW Spectrum® IPVMS Any ONVIF conformant CMS |
| Web Viewer | Windows® OS Internet Explorer® browser |
DW-BJCUBE Specifications
| Video | |
|---|---|
| Compression | H.264 H.265 |
| CPU | Intel® i5® processor |
| Display Modes | Unlimited Sequence Customizable |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | True HD 1 display output at a time DVI-D |
| Memory | 16GB |
| Operating System | Windows®10 |
| Video Card | on-board Intel Graphics |
| OS on SSD | N/A |
| Storage | |
| Max HDD Bay | 3 x SATA HDD |
| Maximum Storage | 18TB |
| General | |
| Accessories | Keyboard Mouse |
| Certification | NDAA Compliance ONVIF Conformant TAA Compliance |
| Form Factor | Desktop / Cube |
| General Dimensions | 8.5" x 12.8” x 7.5” (215.9 x 325.1 x 190.5 mm) |
| General Warranty | 5 Year Limited Warranty |
| Included IP licenses | 4 |
| Max video storage rate (Mbps) | 360Mbps |
| Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C) 20 ~ 90% RH |
| Power Consumption | 300W A UPS is recommended |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI) USB mouse (included) Remote via DW Spectrum IPVMS |
| USB interface | Yes |
| Network | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum® IPVMS |
| Remote Software | DW Site Viewer for Apple TV DW Spectrum Mobile App Cross-platform - Windows®, Linux Ubuntu® and Mac® DW Mobile Plus |
| Performance | |
| Playback Functions | Timeline Calendar Event search Thumbnail search Smart motion search |
| PTZ control | ONVIF |
| Recording Modes | Continuous Motion detection Motion + low res always Object only Object + Low res Motion + Object Motion + Object + Low res |
