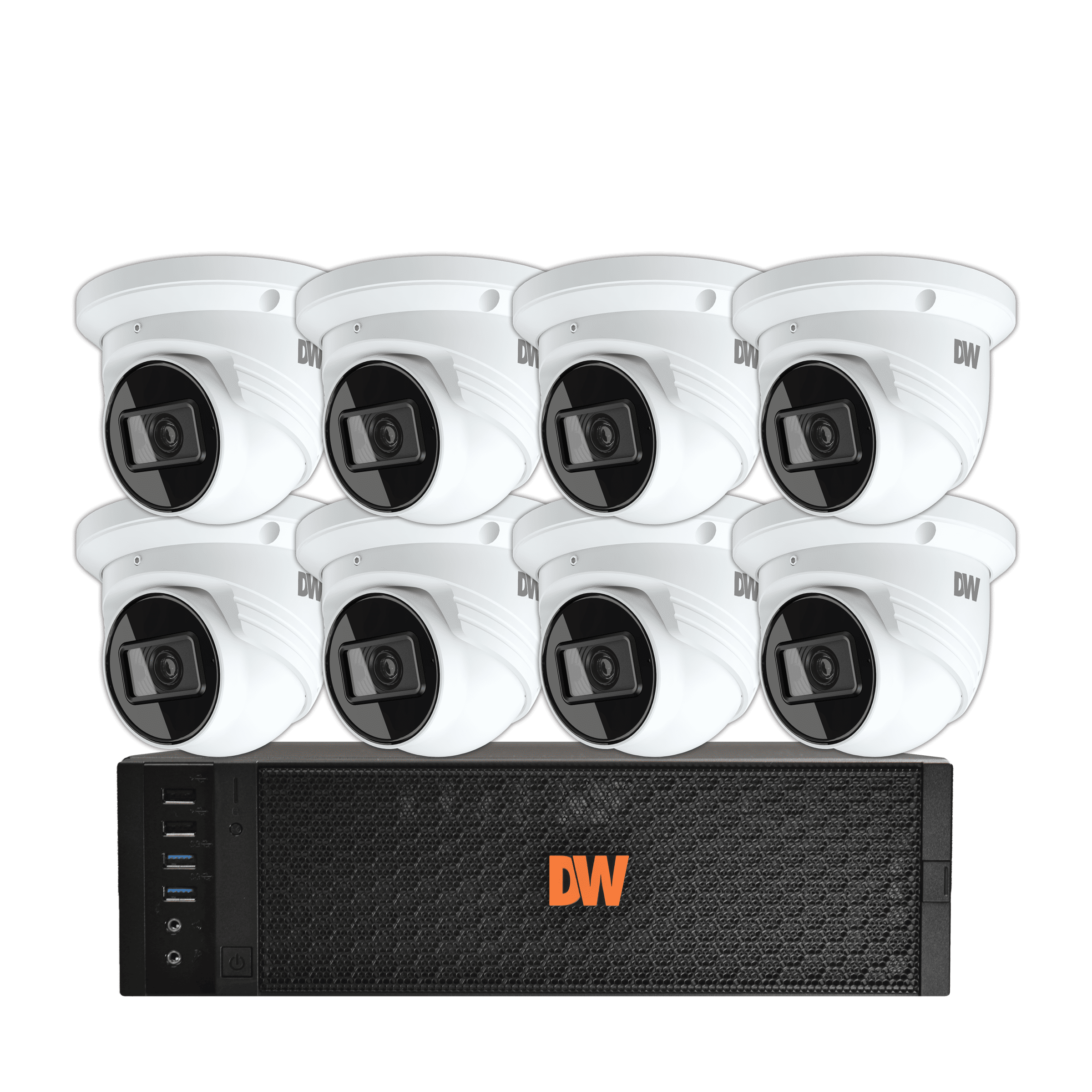

Digital Watchdog - DW-DX1VSTK48 - Blackjack DX with Fixed Lens Turret IP Cameras Kits
• Supports all ONVIF conformant IP cameras
• 2-4TB internal storage options
• Record and manage single- and multi-sensor IP cameras of any resolution up to 80Mbps throughput
• Intel processor
• True HD, DVI-D and D-Sub local outputs for local set up
• Dual network ports
• Linux Ubuntu OS
• Hosting DW Spectrum for setup, configuration, monitoring and recording
• One-time recording license charge, fully transferable between cameras and encoders
• One (1) 4-channel license included (DW-SPECTRUMLSC004).
• Convert each recording license into a 24-month subscription for cloud-centric DW Spectrum Enterprise. Take advantage of
cloud-exclusive usability and convenience.
• Dual stream recording
• USB mouse and keyboard included
• Designed, assembled and tested in the U.S.A.
• NDAA/TAA compliant
• 5 Years limited warranty
| Included IP Licenses | • 4 (1x DW-SPECTRUMLSC004) • Convert each recording license into a 24-month subscription for cloud-centric DW Spectrum Enterprise. Take advantage of cloud-exclusive usability and convenience. |
| Operating System | Ubuntu 22.04 LTS |
| CPU | Intel Processor |
| Memory | 8GB |
| Ethernet Port | 2x 1G Ethernet ports (RJ45) |
| System | |
| Max Video Storage Rate (Mbps) | 80 Mbps |
| Storage | |
| Maximum HDD | 2 x SATA HDD |
| Maximum Storage | • DW-DX1VSTK48: 4TB • DW-DX1VSTK24: 2TB |
| Video-out | |
| Outputs | 1x true HD, 1x DisplayPort, 1x D-Sub for system configuration. Maximum 1 display output at a time. |
| Video Card | Onboard Intel HD Graphics |
| Resolution | True HD: 4K @60Hz, DisplayPort: 4K @60Hz, D-Sub: 1920x1280 @60Hz |
| Preloaded VMS Software | DW Spectrum Server |
| Remote Clients | Cross-platform - Windows, Linux Ubuntu and Mac |
| Mobile Apps | iOS and Android |
| Keyboard and Mouse | Included |
| Power Supply | 300W** |
| Operating Temperature | 41°F ~ 104°F (5°C ~ 40°C) |
| Operating Humidity | 20 ~ 90% RH |
| Dimension (W x D x H) - Desktop | 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm) |
| Dimension (W x D x H) - Standing | 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm) |
| Other Certification | NDAA, TAA |
| Warranty | 5 year limited |
The DW-DX1VSTK48 Blackjack® DX fixed-lens turret IP camera kit is a complete, NDAA/TAA-compliant recording and management solution designed for reliable performance and flexible deployment. Powered by an Intel® processor and running on the Linux Ubuntu OS, the system supports all ONVIF-conformant IP cameras and records single- and multi-sensor cameras at any resolution, with up to 80Mbps throughput, dual-stream recording, and internal storage options ranging from 2TB to 4TB.
The unit hosts DW Spectrum® for seamless setup, configuration, monitoring, and recording, with one included 4-channel recording license (DW-SPECTRUMLSC004) that is fully transferable between cameras and encoders, and convertible into a 24-month cloud-centric DW Spectrum Enterprise subscription for enhanced cloud usability. Featuring true HD, DVI-D, and D-Sub local video outputs for on-site setup, dual network ports, and an included USB mouse and keyboard, the system is designed, assembled, and tested in the U.S.A., and is backed by a 5-year limited warranty.
