Digital Watchdog - DW-ILHYBIP940 - Hybrid 940nm Infra-red Illuminator and White Light, High Power Dual Core LEDs
• Hybrid infrared and white light LED illuminator
• Interchangeable lens pack for various angles out of the box
• Direct integration with DW Spectrum® IPVMS
• Create different elliptical beam profiles
• Motion-activated
• CleanView hydrophobic coating repels water, dust, and grease
• Activate white light to deter intruders
• Remotely adjustable photocell and illumination levels
• 940nm IR wavelength (DW-ILHYBIP940)
• Ultra-white ≈ 6000K white light
• 66-614ft IR coverage
• 94-374ft white light coverage
• Shock sensor
• Web interface built-in
• High-power Dual-Core LEDs with advanced, current-limited and integral control circuitry
• NDAA/TAA compliant
• IP66 environmental-rated dust-tight and water-resistant
• IK 09-rated impact-resistant
| VMS Features | |
|---|---|
| Color rendering index (CRI) | >70 |
| Color temperature | Ultra white ≈ 6000K |
| Detection range | Up to 98.5ft (30m) programmable |
| Electronics | High efficiency surface mount high power Dual-Core™ LEDs with advanced, current limited, integral control circuity. |
| Illumination | • Adjustable 10% - 100% • Software adjustable |
| Lumen output | 1800 lm+ |
| Performance Remote software | DW Spectrum® |
| Performance Web viewer | • Internet Explorer® browser • No software or installation needed • Web browser user interface • Windows OS |
| Photocell | • Adjustable 20 - 70 lux • Software adjustable |
| Wavelength | 940nm (covert). Minimal visible glow (DW-ILHYBIP940) |
| Electrical | |
| Power Consumption | 26W |
| Power Requirements | PoE |
| General | |
| Housing | Robust high-quality aluminum extrusion |
| IK rating | IK09 impact-resistant in accordance with IEC/EN 62262 |
| IP rating | IP66-rated in accordance with IEC/EN 60529 |
| Mount | Powder coated stainless steel wall mount |
| Operating temperature | -58°F to 122°F (-50°C to 50°C) |
| Power cable | 1m with IP68 connector (not included) |
| Recommended PSU | Any IEEE 802.3at injector (not included) |
| Recorder Dimensions (H X W X D) | 4.33" x 6.34" x 3.07" (110 x 161 x 78mm) |
| Weight | 3 lbs (1.35 kg) |
| Certification | CE, FCC |

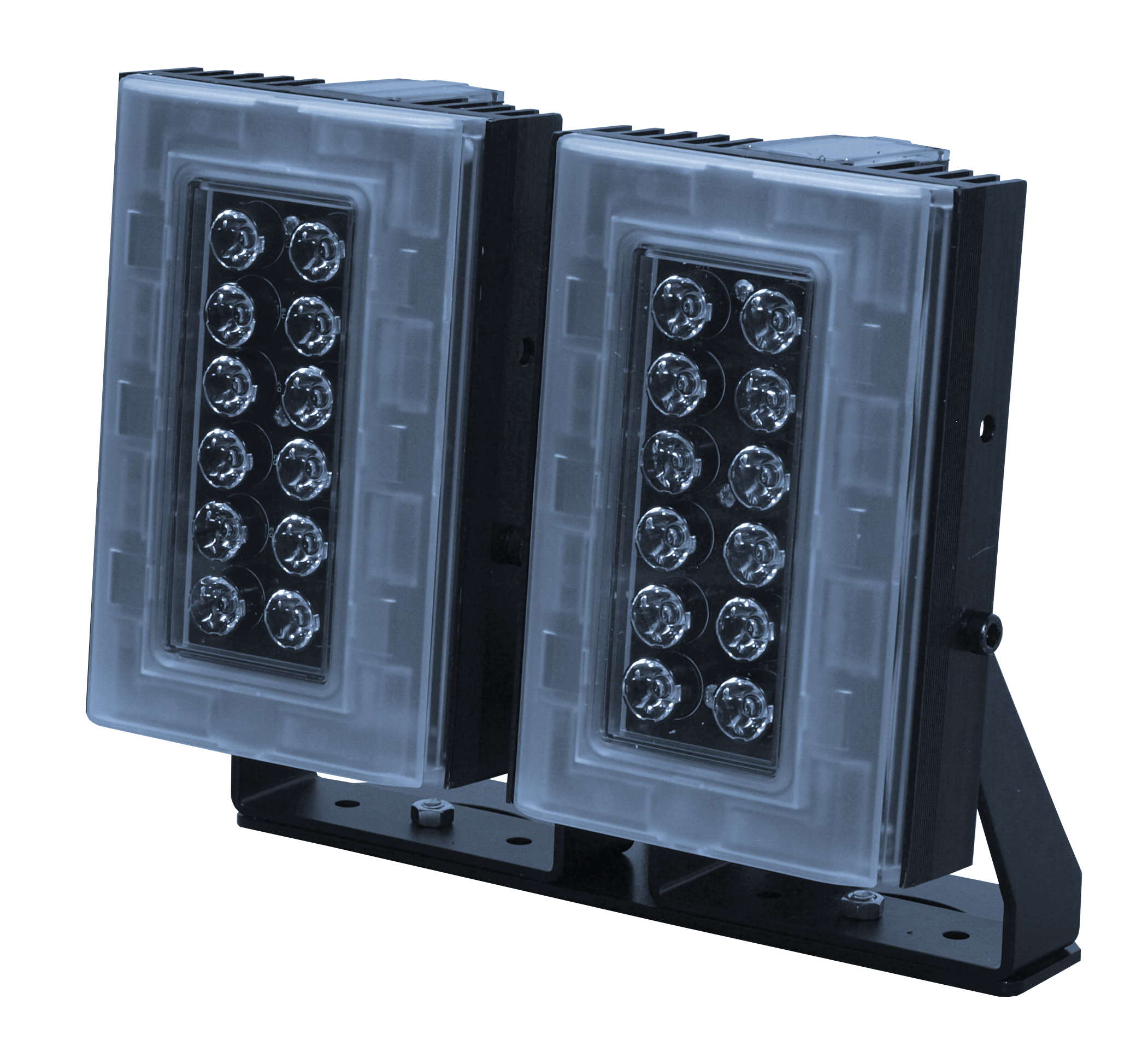

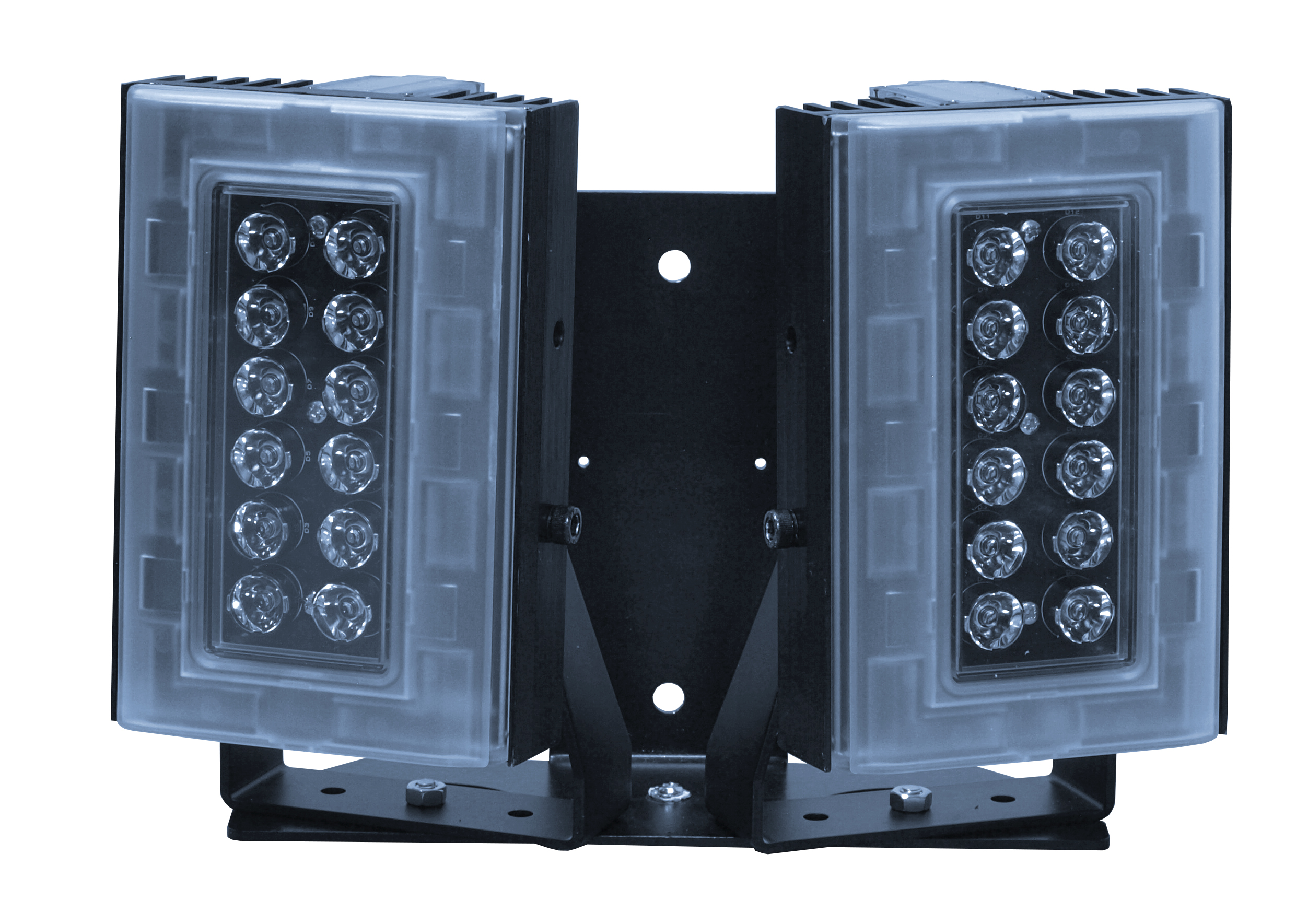

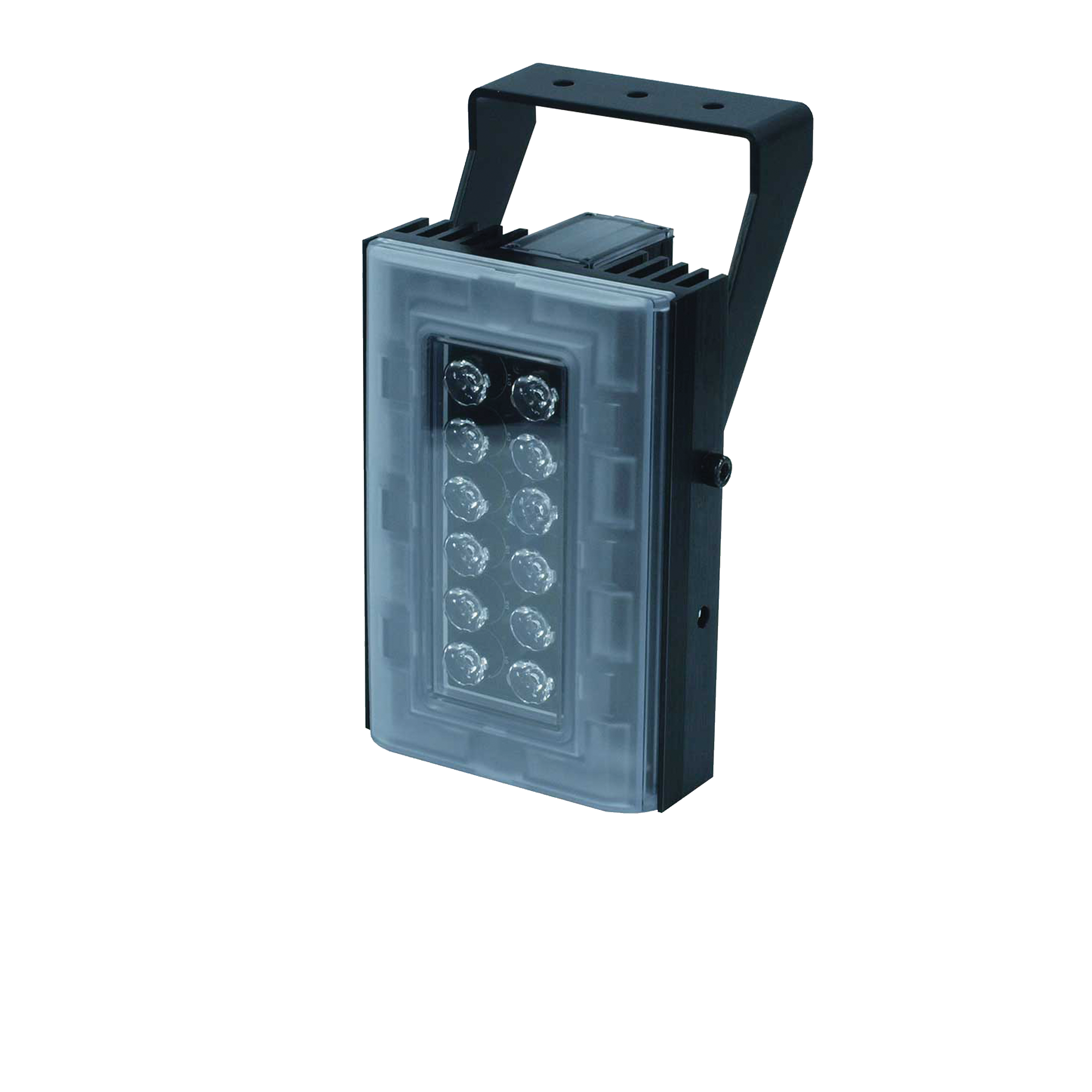

The DW-ILHYBIP940 SiteWatch™ IP-enabled hybrid illuminator combines high-power 940 nm infrared LEDs and ultra-white (approximately 6,000 K) white-light LEDs in a single, NDAA/TAA-compliant device, delivering advanced illumination and active deterrence for security applications. With an interchangeable lens pack offering multiple viewing angles and adjustable elliptical beam profiles, the illuminator provides infrared coverage of between 66 and 614 feet and white light coverage of between 94 and 374 feet. Motion-activated white light can be used to deter intruders, and the photocell sensitivity and illumination levels can be adjusted remotely for precise control.
The unit integrates directly with the DW Spectrum® IPVMS software and includes a built-in web interface, a shock sensor and a CleanView™ hydrophobic coating that repels water, dust and grease. The DW-ILHYBIP940 is built with high-power dual-core LEDs and advanced current-limited control circuitry, and is housed in a rugged, IP66-rated, IK09-impact-resistant enclosure designed for reliable outdoor performance.
